高强微弹水泥浆在延长油田致密油水平井中的应用

王涛, 申峰, 展转盈, 马振锋, 刘云, 侯云翌

王涛, 申峰, 展转盈, 马振锋, 刘云, 侯云翌. 高强微弹水泥浆在延长油田致密油水平井中的应用[J]. 石油钻探技术, 2019, 47(5): 40-48. DOI: 10.11911/syztjs.2019082
引用本文: 王涛, 申峰, 展转盈, 马振锋, 刘云, 侯云翌. 高强微弹水泥浆在延长油田致密油水平井中的应用[J]. 石油钻探技术, 2019, 47(5): 40-48. DOI: 10.11911/syztjs.2019082
WANG Tao, SHEN Feng, ZHAN Zhuanying, MA Zhenfeng, LIU Yun, HOU Yunyi. The Application of High-Strength Micro-Elastic Cement Slurry in the Tight Oil Horizontal Wells of the Yanchang Oilfield[J]. Petroleum Drilling Techniques, 2019, 47(5): 40-48. DOI: 10.11911/syztjs.2019082
Citation: WANG Tao, SHEN Feng, ZHAN Zhuanying, MA Zhenfeng, LIU Yun, HOU Yunyi. The Application of High-Strength Micro-Elastic Cement Slurry in the Tight Oil Horizontal Wells of the Yanchang Oilfield[J]. Petroleum Drilling Techniques, 2019, 47(5): 40-48. DOI: 10.11911/syztjs.2019082

高强微弹水泥浆在延长油田致密油水平井中的应用

基金项目: 国家科技重大专项“陆相页岩气水平井高效低成本钻完井技术”(编号:2017ZX05039003)资助
详细信息
    作者简介:

    王涛(1986—),男,山西运城人,2010年毕业于中国石油大学(北京)石油工程专业,2013年获西南石油大学油气井工程专业硕士学位,工程师,主要从事固井技术研究及现场应用工作。E-mail:wt861104@126.com

  • 中图分类号: TE256+.1

The Application of High-Strength Micro-Elastic Cement Slurry in the Tight Oil Horizontal Wells of the Yanchang Oilfield

  • 摘要:

    为了提高延长油田致密油水平井的环空密封能力、保证多级缝网压裂开发效果,对水泥浆进行了功能化改性。结合该油田南部致密油储层特征、水平井井身结构和多级缝网压裂对固井水泥浆性能的要求,建立了套管–水泥环–地层受力模型,分析得到了水泥石杨氏模量与界面压力的关系图版,并据此设计了水泥浆;对丁苯胶粉进行了粒径优选、表面处理,并与甲酰胺及无机盐复配制得高强微弹剂,辅之以其他外加剂,形成了满足性能要求的高强微弹水泥浆。研究发现,水泥石杨氏模量越低、地层杨氏模量越高、压裂施工压力越低、井眼扩大率越小,则满足环空密封要求的水泥石抗压强度越小;与空白样相比,高强微弹水泥浆抗压强度提高51.8%、杨氏模量降低10.5%、抗折抗拉强度提高75.0%以上。该水泥浆在延长油田南部10余口致密油水平井进行了现场应用,水平段固井质量合格率达95%以上,分段压裂时未发生窜流。研究结果表明,高强微弹水泥浆可以提高延长油田致密油水平井压裂后的环空密封性,具有推广应用价值。

    Abstract:

    In order to improve the sealing ability of the annulus and ensure the multi-stage fracture-network fracturing development effect of tight oil horizontal wells in Yanchang Oilfield, the cement slurry had been functionally modified. Combined with the characteristics of tight oil reservoirs in the south part of this oilfield, horizontal well casing program and the requirements of multi-stage fracture-network fracturing on cement slurry properties, a casing-cement ring-formation force model was established, and the relationship chart between the Young’s modulus of the cement paste and the interfacial pressure was obtained. The particle size and surface treatment of styrene-butadiene rubber powder were optimized, and the high-strength micro-elastic agent was prepared by compounding formamide and inorganic salts, supplemented by other additives. After that, it was possible to form the high-strength micro-elastic cement slurry satisfying the requirements of this chart. The study found that the lower the Young's modulus of the hardened cement, the larger the Young's modulus of the formation, the lower the fracturing pressure and the smaller the hole enlargement rate, the lower the required compressive strength of the cement paste that met the requirements of annulus sealing would be. The developed cement slurry had perfect high-strength micro-elastic properties. Compared with the blank samples, the compressive strength was 51.8% higher, the Young's modulus was 10.5% lower, and the anti-breaking/tension strength was 75.0% higher. The cement slurry had been applied in more than 10 wells in the south part of the Yanchang Oilfield. The qualified rate of cementing quality in the horizontal section was over 95%, and no channeling occurred in the staged fracturing. The study results showed that the high-strength micro-elastic cement slurry could improve the post-fracturing sealing performance of tight oil horizontal wells in the Yanchang Oilfield, and demonstrated potential for widespread adoption.

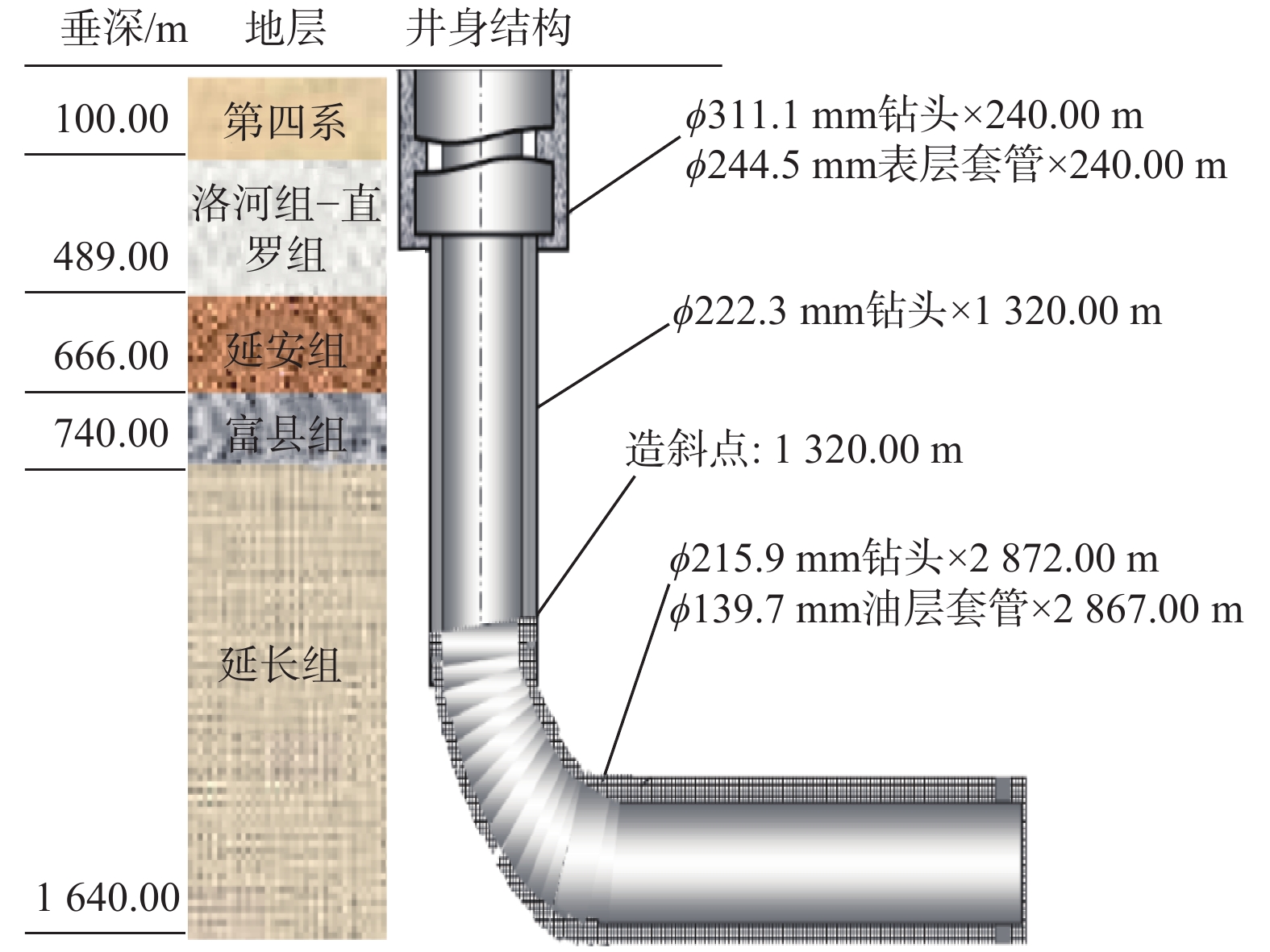

  • 图  1   典型的致密油水平井井身结构

    Figure  1.   Casing program of typical tight oil horizontal well

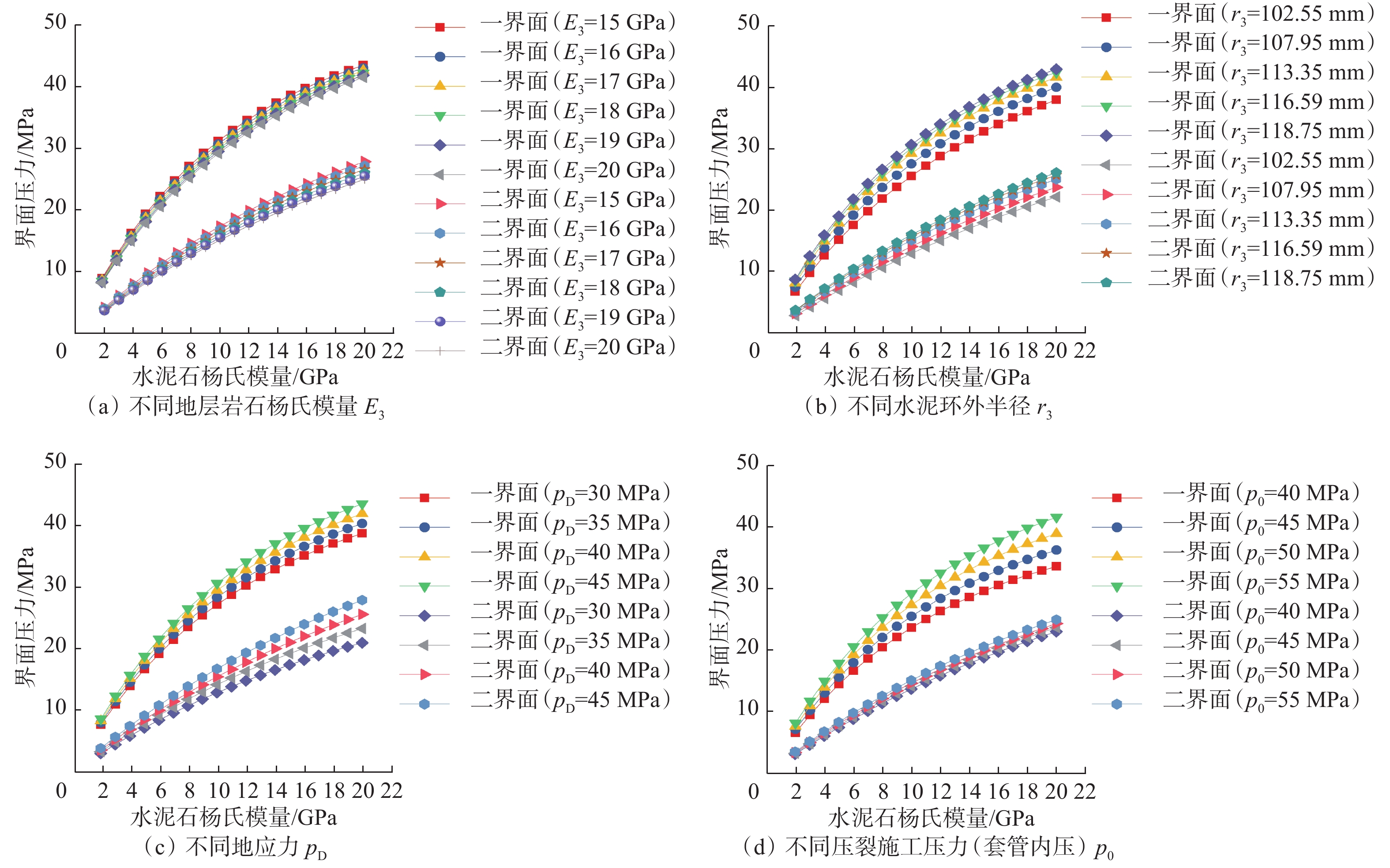

    图  2   致密油水平井水泥石杨氏模量与界面压力的关系图版

    Figure  2.   Relationship chart between the Young’s modulus of cement paste and the interfacial pressure of the tight oil horizontal wells

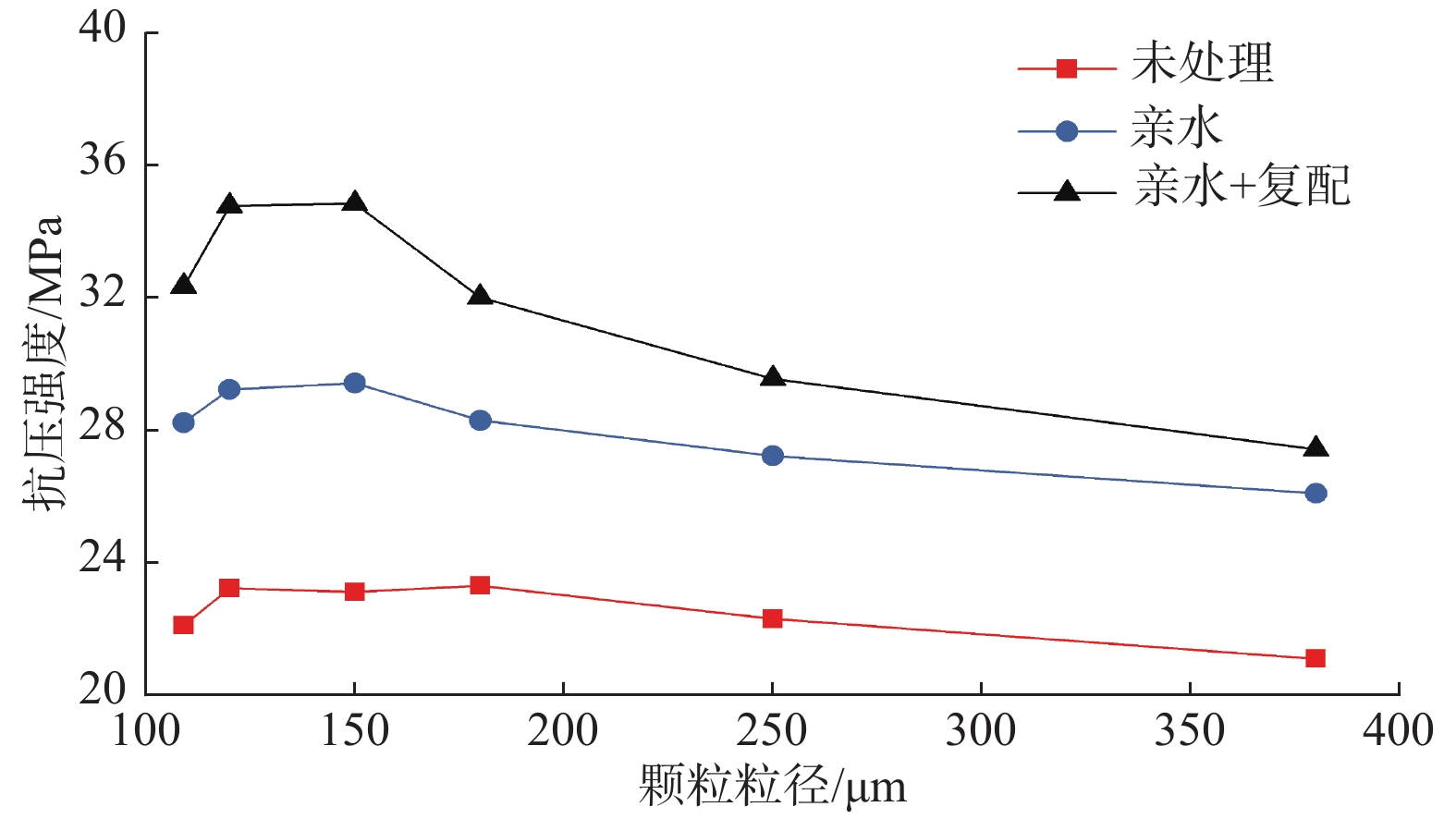

    图  3   丁苯胶粉粒径和处理方式对水泥石抗压强度的影响

    Figure  3.   Effects of particle size and treatment method on cement paste strength

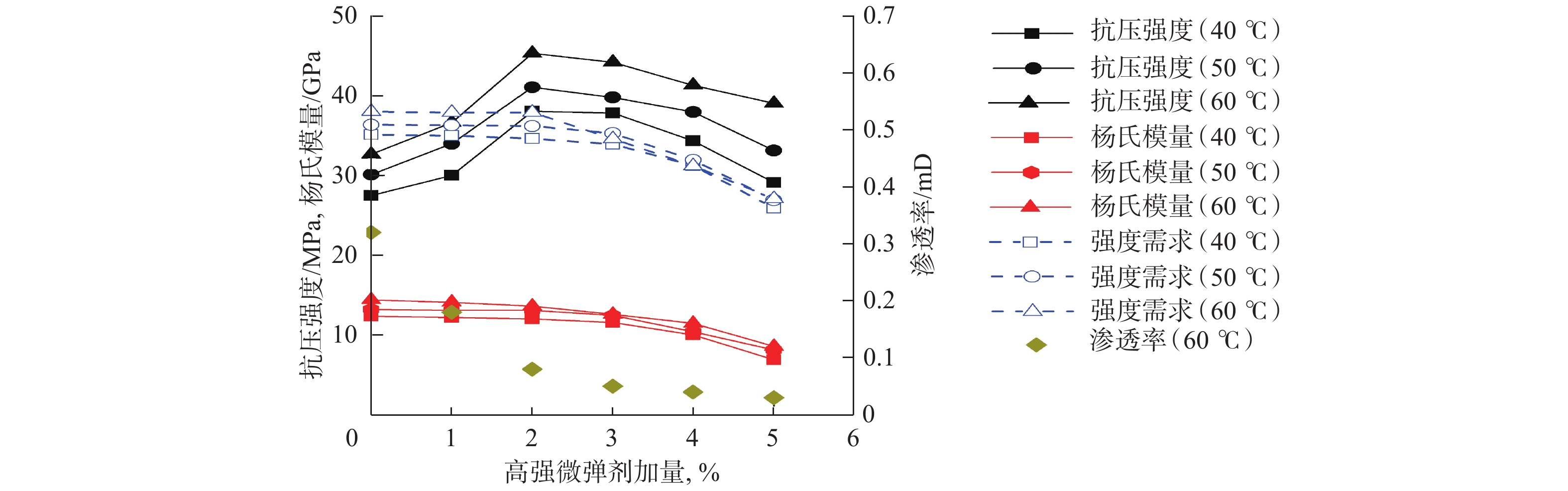

    图  4   高强微弹剂加量对水泥石力学性能的影响

    Figure  4.   Effect of high-strength micro-elastic agent dosage on mechanical performance of cement paste

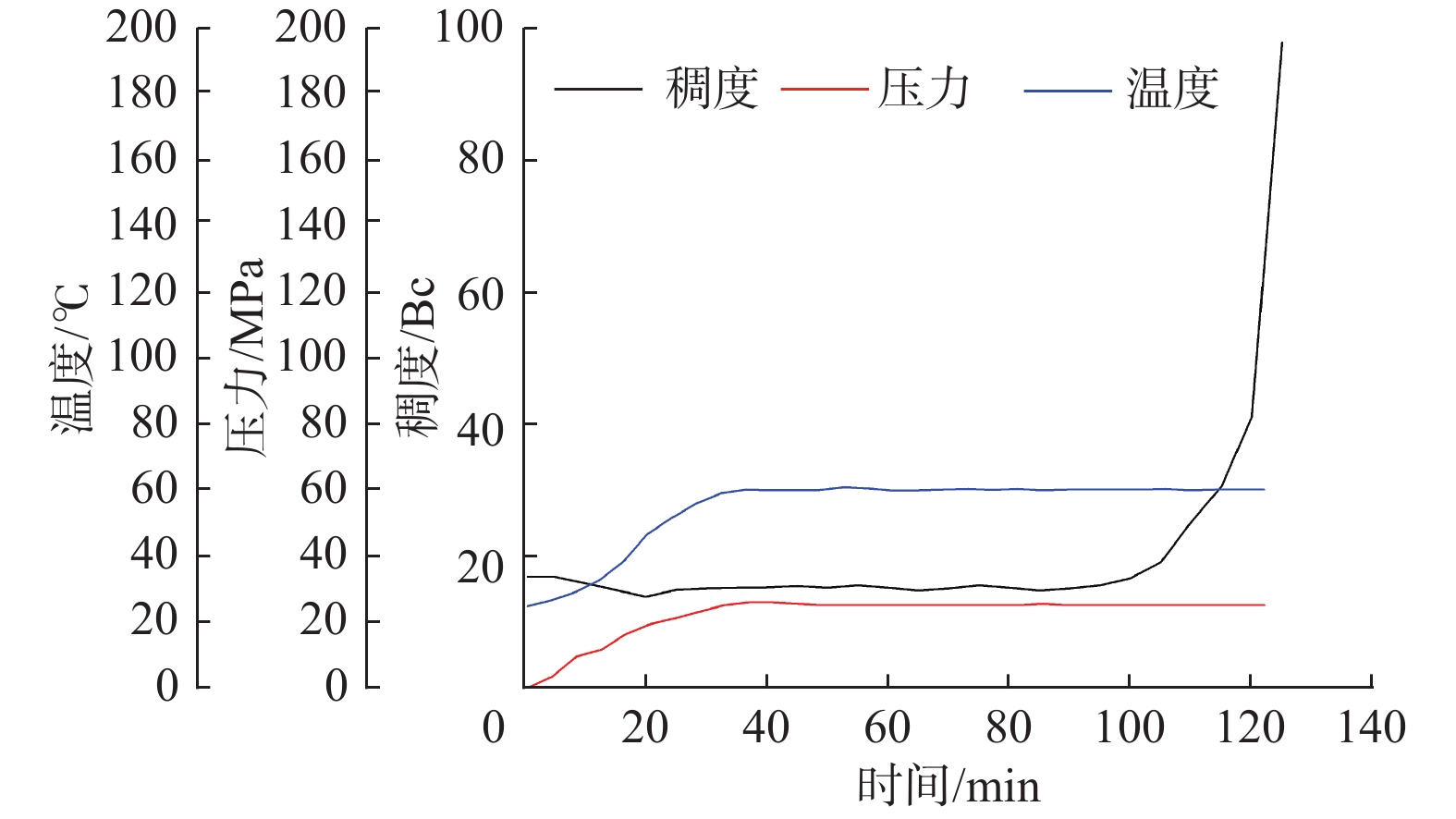

    图  5   60 ℃下高强微弹水泥浆的稠化曲线

    Figure  5.   Thickening curve of high strength microelastic cement slurry at 60 °C

    图  6   水泥石杨氏模量测试结果

    Figure  6.   Young's modulus test results for cement paste

    图  7   霍普金森压杆试验所得应变–应力曲线

    Figure  7.   Strain-stress curve obtained from the Hopkinson pressure bar test

    图  8   高强微弹水泥石和常规水泥石的微观形态

    Figure  8.   Micro-morphology of high-strength micro-elastic cement paste and blank cement paste sample

    表  1   高强微弹水泥浆的常规性能

    Table  1   Conventional properties of high-strength micro-elastic cement slurry

    试验温度/℃稠化时间/min稠化过渡时间/min初始稠度/Bc抗压强度1)/MPa滤失量/mL游离液含量,%上下密度差/(kg·L–1
    4015251239.383200
    6012461548.793900
     注:1)为20.7 MPa下养护48 h后水泥石的抗压强度。
    下载: 导出CSV

    表  2   水泥石力学性能测试结果

    Table  2   Cement paste mechanical performance test results

    体系抗压强度/
    MPa
    杨氏模量/
    GPa
    抗折强度/
    MPa
    抗拉强度/
    MPa
    渗透率/
    mD
    高强微弹
    水泥浆
    50.5813.613.994.600.06
    空白样33.3215.212.282.530.28
    下载: 导出CSV

    表  3   W平12井高强微弹水泥浆封固段固井质量评价

    Table  3   Cementing quality evaluation of high-strength micro-elastic cement slurry sealing section in Well W Ping 12

    位置固井质量
    评价结果
    水泥封固段
    累计长度/m
    占总封固段
    长度比例,%
    第一界面1 380.0092.00
    中等120.008.00
    00
    第二界面1 358.2590.55
    中等141.759.45
    00
    下载: 导出CSV
