Integrated Geology-Engineering Early Warning Technologies for Lost Circulation of Fractured Reservoirs in Bohai Oilfield
-
摘要:
为了解决渤海油田裂缝性油藏钻井过程中因断层、裂缝引起的井下漏失等问题，提出了地质工程一体化井漏预警技术。在叠后地震大中尺度断层刻画的基础上，通过滤波、断裂增强等特殊处理，进行属性优选及多属性融合，精细刻画中小尺度裂缝，建立了多尺度裂缝三维空间分布模型，设计井眼轨道时避开漏层，进行钻前风险提示，指导钻井作业采取相应的防漏堵漏措施；钻进过程中开展井漏风险随钻跟踪，实时调整并反馈井漏风险预测结果，及时优化井眼轨道，形成了随钻过程中漏层动态避钻技术，以充分保障钻井作业安全，降低钻井成本。钻前风险预测、钻进中井漏跟踪及随钻井眼轨迹实时优化等技术在旅大X油田应用后，实现了一趟钻规避断层漏失段。地质工程一体化井漏预警技术能够降低钻井风险，保障裂缝性油藏的钻井安全，为渤海油田增储上产提供了技术支撑。
Abstract:In order to solve the problems of downhole leakage caused by faults and fractures in the drilling process of fractured reservoirs in Bohai Oilfield, integrated geology-engineering early warning technologies for lost circulation were proposed. Using large and medium-scale fault characterization in post-stack seism, special treatments such as filtering and fault enhancement were carried out to optimize attributes, fuse multiple attributes, finely describe small and medium-scale fractures, and a three-dimensional spatial distribution model of multi-scale fractures was established. In the design of the wellbore trajectory, drilling in the layers with leakage was avoided. The model was used to develop risk warnings before drilling and guide drilling operations in taking countermeasures for preventing and plugging leakage. During the drilling process, the tracking technology for lost circulation risk was implemented, and the prediction results of the risk were adjusted and fed back in real time. As a result, the wellbore trajectory was optimized in a timely manner, and a dynamic technology for avoiding layers with leakage while drilling was formed, which fully guaranteed the safety of drilling operations and reduced operating costs. The above-mentioned technologies such as risk prediction before drilling, tracking for lost circulation during drilling, and real-time optimization of the wellbore trajectory while drilling were successfully applied in Lvda X Oilfield and avoided leakage sections of the faults in one trip. The integrated geology-engineering early warning technologies for lost circulation can effectively minimize drilling risks and ensure operational safety in fractured reservoirs, which provides technical support for increasing reserves and production of Bohai Oilfield.
-
-
![]()

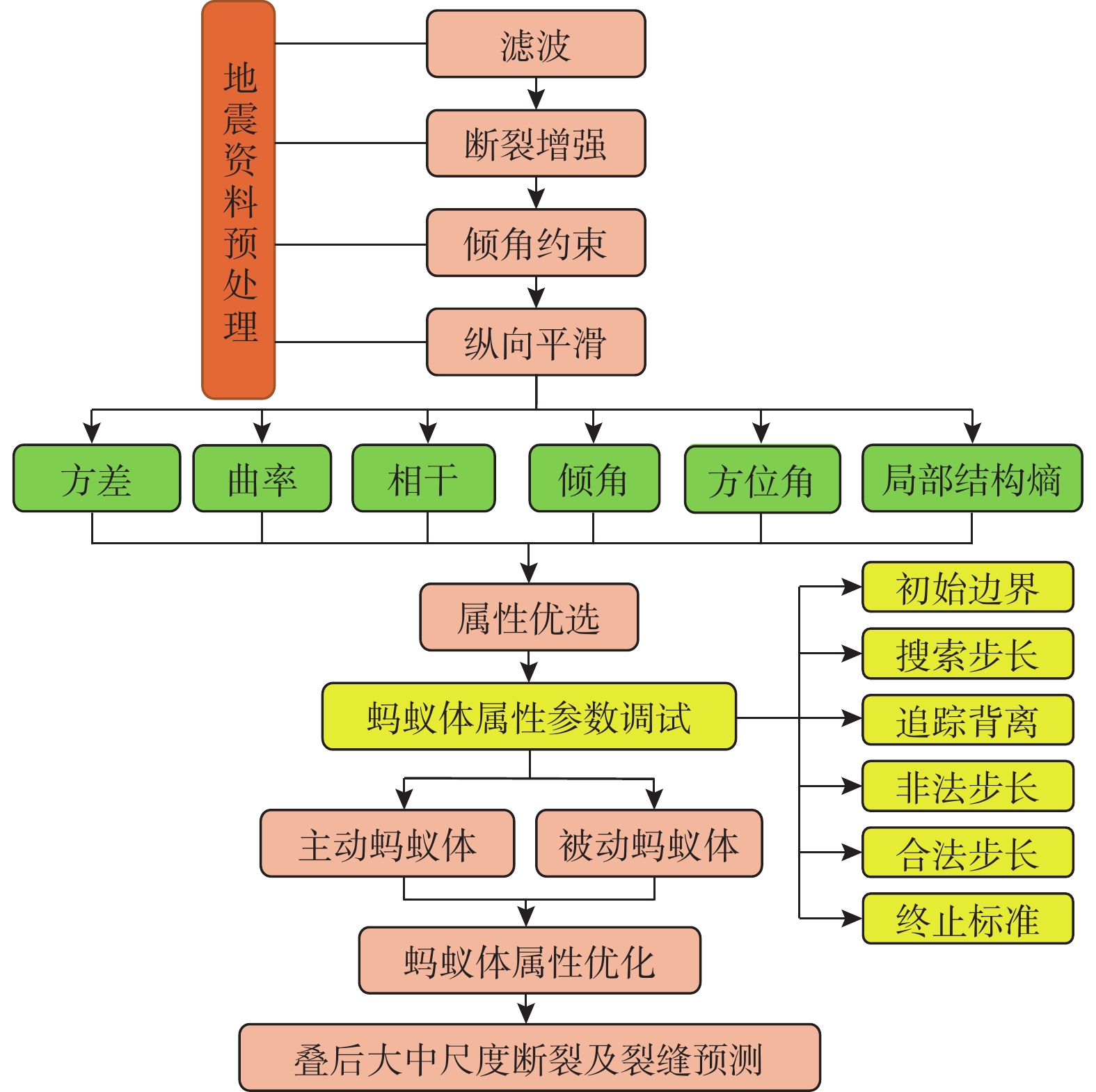

图 2 多尺度裂缝三维空间分布模型的建立流程
Figure 2. Establishment of the three-dimensional spatial distribution model of multi-scale fractures
![]()

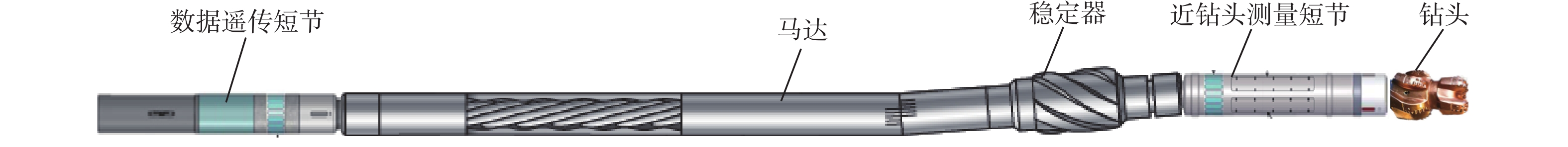

图 3 随钻近钻头测量工具的结构
Figure 3. Structure of the near-bit measuring instrument while drilling
-
[1] 刘海龙,许杰,谢涛,等. 渤海中深层井壁稳定流固耦合研究[J]. 石油机械,2019,47(4):1–7. doi: 10.16082/j.cnki.issn.1001-4578.2019.04.001 LIU Hailong, XU Jie, XIE Tao, et al. Study on fluid-solid coupling for borehole wall stability of medium-deep wellbore in Bohai Sea[J]. China Petroleum Machinery, 2019, 47(4): 1–7. doi: 10.16082/j.cnki.issn.1001-4578.2019.04.001
[2] 康毅力,郭昆,游利军,等. 考虑地应力及缝宽/粒径比的钻井堵漏材料抗压能力评价[J]. 石油钻采工艺,2021,43(1):39–47. KANG Yili, GUO Kun, YOU Lijun, et al. Evaluation on the compression strength of lost circulation materials considering in-situ stress and fracture width/particle size ratio[J]. Oil Drilling & Production Technology, 2021, 43(1): 39–47.
[3] HE Wenhao, CHEN Keyong, HAYATDAVOUDI A, et al. Effects of clay content, cement and mineral composition characteristics on sandstone rock strength and deformability behaviors[J]. Journal of Petroleum Science and Engineering, 2019, 176: 962–969. doi: 10.1016/j.petrol.2019.02.016
[4] 杨仲涵,罗鸣,陈江华,等. 莺歌海盆地超高温高压井挤水泥承压堵漏技术[J]. 石油钻探技术,2020,48(3):47–51. doi: 10.11911/syztjs.2020012 YANG Zhonghan, LUO Ming, CHEN Jianghua, et al. Cement squeezing for pressure-bearing plugging in ultra-high temperature and high pressure wells in the Yinggehai Basin[J]. Petroleum Drilling Techniques, 2020, 48(3): 47–51. doi: 10.11911/syztjs.2020012
[5] 康毅力,许成元,唐龙,等. 构筑井周坚韧屏障:井漏控制理论与方法[J]. 石油勘探与开发,2014,41(4):473–479. doi: 10.11698/PED.2014.04.13 KANG Yili, XU Chengyuan, TANG Long, et al. Constructing a tough shield around the wellbore: theory and method for lost-circulation control[J]. Petroleum Exploration and Development, 2014, 41(4): 473–479. doi: 10.11698/PED.2014.04.13
[6] 卢小川,狄明利,王伟. 渤海油田井漏对策探讨[J]. 长江大学学报(自科版),2017,14(11):46–49. doi: 10.16772/j.cnki.1673-1409.2017.11.010 LU Xiaochuan, DI Mingli, WANG Wei. Treating methods for lost circulation in Bohai Oilfield[J]. Journal of Yangtze University(Natural Science Edition), 2017, 14(11): 46–49. doi: 10.16772/j.cnki.1673-1409.2017.11.010
[7] LI Yong, HOU Guiting, HARI K R, et al. The model of fracture development in the faulted folds: The role of folding and faulting[J]. Marine and Petroleum Geology, 2018, 89(Part 2): 243 − 251.
[8] 刘伟,周英操,石希天,等. 塔里木油田库车山前超高压盐水层精细控压钻井技术[J]. 石油钻探技术,2020,48(2):23–28. doi: 10.11911/syztjs.2020034 LIU Wei, ZHOU Yingcao, SHI Xitian, et al. Precise managed pressure drilling technology for ultra-high pressure brine layer in the Kuqa Piedmont of the Tarim Oilfield[J]. Petroleum Drilling Techniques, 2020, 48(2): 23–28. doi: 10.11911/syztjs.2020034
[9] 谭忠健,胡云,袁亚东,等. 渤海海域裂缝性地层井漏机理研究:以渤中34-9油田为例[J]. 中国石油勘探,2021,26(2):127–136. doi: 10.3969/j.issn.1672-7703.2021.02.013 TAN Zhongjian, HU Yun, YUAN Yadong, et al. Study on lost circulation mechanism in fractured formation: a case study of BZ34-9 Oilfield, Bohai Sea, East China[J]. China Petroleum Exploration, 2021, 26(2): 127–136. doi: 10.3969/j.issn.1672-7703.2021.02.013
[10] 卢志远,张晓黎,张万龙,等. 一种地震裂缝预测与岩石力学相结合评估井漏风险的新方法:以准噶尔盆地玛湖油田A井区为例[J]. 天然气地球科学,2020,31(10):1453–1465. LU Zhiyuan, ZHANG Xiaoli, ZHANG Wanlong, et al. A new method of leakage risk evaluation based on seismic fracture prediction and rock mechanics: case study in a wellblock of Mahu Oilfield in Junggar Basin[J]. Natural Gas Geoscience, 2020, 31(10): 1453–1465.
[11] THOMSEN L. Reflection seismology over azimuthally anisotropic media[J]. Geophysics, 1988, 53(3): 304–313. doi: 10.1190/1.1442464
[12] GRAY D, HEAD K. Fracture detection in Manderson Field: a 3-D AVAZ case history[J]. The Leading Edge, 2000, 19(11): 1214–1221. doi: 10.1190/1.1438508
[13] TSVANKIN I, GAISER J, GRECHKA V, et al. Seismic anisotropy in exploration and reservoir characterization: an overview[J]. Geophysics, 2010, 75(5): 75A15–75A29. doi: 10.1190/1.3481775
[14] 高永德,刘鹏,杜超,等. 随钻地震技术在莺歌海盆地高温高压地层钻井中的应用[J]. 石油钻探技术,2020,48(4):63–71. doi: 10.11911/syztjs.2020049 GAO Yongde, LIU Peng, DU Chao, et al. The application of seismic while drilling in high temperature, high pressure reservoirs of the Yinggehai Basin[J]. Petroleum Drilling Techniques, 2020, 48(4): 63–71. doi: 10.11911/syztjs.2020049
[15] 梁舒艺,洪扬,崔立杰. 盆腹区张扭断裂带与盆缘造山带成因关系及油气成藏控制:以准噶尔盆地盆1井西凹陷东环带侏罗系为例[J]. 断块油气田,2021,28(6):805–809. LIANG Shuyi, HONG Yang, CUI Lijie. Genetic relationship between transtensional fault zones in the hinterland of the basin and orogenic belts in the margin of the basin and its control on hydrocarbon accumulation: A case study of Jurassic in the east belt around Pen-1 Well west sag, Junggar Basin[J]. Fault-Block Oil & Gas Field, 2021, 28(6): 805–809.
[16] 唐琪凌,苏波,王迪,等. 蚂蚁算法在断裂系统解释中的应用[J]. 特种油气藏,2009,16(6):30–33. doi: 10.3969/j.issn.1006-6535.2009.06.009 TANG Qiling, SU Bo, WANG Di, et al. Application of ant colony algorithm in fault system interpretation[J]. Special Oil & Gas Reservoirs, 2009, 16(6): 30–33. doi: 10.3969/j.issn.1006-6535.2009.06.009
[17] 黄苇,周捷,高利君,等. 基于同步挤压改进短时傅立叶变换的分频蚂蚁追踪在断裂识别中的应用[J]. 物探与化探,2021,45(2):432–439. HUANG Wei, ZHOU Jie, GAO Lijun, et al. The application of frequency division ant tracking based on synchronous extrusion improvement of short time Fourier transform in crack detection[J]. Geophysical and Geochemical Exploration, 2021, 45(2): 432–439.
[18] 林昕,苑仁国,秦磊,等. 地质导向钻井前探技术现状及进展[J]. 特种油气藏,2021,28(2):1–10. doi: 10.3969/j.issn.1006-6535.2021.02.001 LIN Xin, YUAN Renguo, QIN Lei, et al. Present situation and progress of geosteering drilling pre-prospecting technology[J]. Special Oil & Gas Reservoirs, 2021, 28(2): 1–10. doi: 10.3969/j.issn.1006-6535.2021.02.001
[19] 孙永兴,贾利春. 国内3 000 m长水平段水平井钻井实例与认识[J]. 石油钻采工艺,2020,42(4):393–401. SUN Yongxing, JIA Lichun. Cases and understandings on the drilling of horizontal well with horizontal section of 3 000 m long in China[J]. Oil Drilling & Production Technology, 2020, 42(4): 393–401.
[20] 赵少伟,范白涛,张晓诚,等. 随钻陀螺测量系统研发及应用[J]. 钻采工艺,2017,40(2):63–66. doi: 10.3969/J.ISSN.1006-768X.2017.02.19 ZHAO Shaowei, FAN Baitao, ZHANG Xiaocheng, et al. Development and application of gyro measurement while drilling system[J]. Drilling & Production Technology, 2017, 40(2): 63–66. doi: 10.3969/J.ISSN.1006-768X.2017.02.19
[21] 王恒,孙明光,张进双,等. 静态推靠式旋转导向工具造斜率预测分析[J]. 石油机械,2021,49(2):15–21. doi: 10.16082/j.cnki.issn.1001-4578.2021.02.003 WANG Heng, SUN Mingguang, ZHANG Jinshuang, et al. Buildup rate prediction of a static push-the-bit rotary steerable tool[J]. China Petroleum Machinery, 2021, 49(2): 15–21. doi: 10.16082/j.cnki.issn.1001-4578.2021.02.003
[22] 林家昱,王晓鹏,张羽臣,等. 渤海油田丛式井综合调整加密防碰技术[J]. 石油工业技术监督,2019,35(11):1–4. doi: 10.3969/j.issn.1004-1346.2019.11.001 LIN Jiayu, WANG Xiaopeng, ZHANG Yuchen, et al. Comprehensive infilling and anti-collision technology of cluster wells in Bohai Oilfield[J]. Technology Supervision in Petroleum Industry, 2019, 35(11): 1–4. doi: 10.3969/j.issn.1004-1346.2019.11.001
-
