Research Progress and Development Recommendations Covering Damage Mechanisms and Protection Technologies for Tight/Shale Oil and Gas Reservoirs
-
摘要:
致密/页岩油气藏赋存地质条件独特，通常采用水平井加分段压裂技术进行开发，但油气井初期产量差异大且递减快，而钻井完井及增产改造中的储层损害是重要原因。如何降低致密/页岩油气藏勘探开发各环节的储层损害，提高单井产量与稳产周期，实现经济高效开发，是目前亟待解决的重大科学问题。为此，在分析致密/页岩油气储层损害特点的基础上，总结了钻井完井、增产改造与开发生产过程中致密/页岩油气储层损害的主要机理，介绍了物理颗粒暂堵、化学成膜暂堵、欠平衡钻井完井和界面修饰等储层保护技术的基本原理及研究进展，以典型案例阐述了储层保护技术对及时发现、准确评价和高效开发致密/页岩油气资源的重要作用，并指出储层损害预测与诊断系统、储层多尺度损害评价方法、智能型储层保护材料、液相圈闭损害防治措施和储层保护–漏失控制–增渗改造一体化技术是致密/页岩油气储层保护的重要发展方向。
Abstract:Tight and shale oil and gas reservoirs demonstrate unique geological characteristics such as extremely poor storage-flow quality, and multi-scale structure of storage and flow space. Those reservoirs are normally developed with staged fracturing of horizontal wells, which is made quite challenging by obviously different initial production rates and rapid declines. Further, uncertainty over the technical effects of drilling/completion and stimulation are significantly different. Currently, the major scientific issues that urgently need to be resolved include the requirement to reduce reservoir damage at all the exploration and development stages, to increase well production and stable production cycle, and to achieve economic and efficient development. Through the damage characteristics analysis of such reservoirs, and the main damage mechanisms summary during drilling/completion, stimulation and production, this paper introduces the basic principles and research progress of reservoir protection technologies such as the temporary plugging of physical particles and chemical filming, underbalanced drilling and completion, and interface modification, etc. The importance of damage prevention technologies in the timely discovery of tight/shale oil and gas reservoirs, correct evaluation and efficient development is elaborated with case studies. This paper also points out that integrated techniques in reservoir damage prediction and diagnosis system, multi-scale damage evaluation method, intelligent reservoir protection materials, liquid trap damage prevention measures, and reservoir protection-leakage control-permeability enhancement will be the important development trends in tight/shale oil and gas reservoir protection in the future.
-
随着天然气需求量日益增大、进口气量持续快速增长以及国内大型长输管道工程的快速建设，天然气储存和调峰矛盾日益突出[1-2]。储气库是各大气区天然气管道建设的重要一环，具有储存天然气和调峰的功能[3-4]。与常规气藏单向衰竭式开采相比，储气库具有强注强采、短期大流量交替注气和采气等特点[5]。储气库周期注采过程中，储层孔隙压力周期性升高和降低，会引起储层有效应力交替变化，导致储层裂缝周期性开启和闭合，进而引发储气库储层的应力敏感性，而且随着储气库注采周期增长，应力敏感会增强[6]。因此，研究储气库储层的应力敏感性，有助于提高储气库的注采效率，优化注采制度。
油气生产过程中，有效应力增大会使储层物性发生变化[7]，尤其是储层渗透率和孔隙度等参数[8]。科研人员开展了有效应力加载条件下的岩石渗透率和孔隙度变化试验[9-13]，并通过建立函数、空间模型等来描述孔隙度、渗透率与有效应力的关系[10，14-16]。同时建立了评价应力敏感程度的方法，主要包括用回归渗透率与有效应力指数关系中的常数表示应力敏感程度[17]、应力敏系数法[18]，以及行业标准《储层敏感性流动试验评价方法》（SY/T 5358—2010）等一系列评价方法。
笔者选取XG储气库碳酸盐岩储层岩样，开展了应力敏感试验和考虑有效应力作用时间的应力敏感试验，并测试了试验过程中岩样的渗透率，运用扫描电镜等手段观测了考虑有效应力作用时间试验前后的岩样裂缝壁面，分析了有效应力大小及其作用时间对岩石裂缝和孔隙结构的作用机理。基于以上分析，明确了储气库周期注采过程中有效应力和有效应力作用时间对碳酸盐岩渗透率的影响，以期为优化储气库的注采制度提供理论依据。
1. 试验岩样与试验方法
1.1 试验岩样
试验岩样选自川渝地区XG储气库黄龙组碳酸盐岩储层，埋深2 300.00～2 600.00 m，地层温度62.23 ℃，储气库库容40.5×108 m3，垫底气量17.7×108 m3，工作气量22.8×108 m3。试验岩样孔隙度的最大值为11.99%，最小值为0.11%，平均为2.07%。岩样渗透率的最大值为2.27 mD，最小值为4.36×10–4 mD，平均为0.67 mD。储层岩样裂缝统计结果表明，有效裂缝为649条，裂缝平均密度为8.96条/m，占总裂缝的74.86%，表明储气库碳酸盐岩储层有效裂缝较发育。
研究区块为孔隙性–裂缝性碳酸盐岩储层，裂缝不仅是储集空间，也是重要的渗流通道，因此采用巴西劈裂法对4块岩样进行了人工造缝，然后进行相关试验，并选择4块基块岩样进行了对比试验。试验岩样的基本物性参数见表1。
表 1 试验岩样的基本物性参数Table 1. Basic physical parameters of experimental rock samples岩样号 长度/mm 直径/mm 孔隙度，% 渗透率/mD 裂缝宽度/μm 备注 XG-1 44.40 24.60 3.02 11.5319 13.88 裂缝 XG-2 45.10 24.72 2.86 3.6667 9.49 裂缝 XG-3 43.20 25.02 2.21 0.0013 基块 XG-4 43.24 24.60 3.42 0.0015 基块 XG-5 44.52 24.88 3.31 31.4265 19.46 裂缝 XG-6 44.77 24.58 3.72 147.2647 32.43 裂缝 XG-7 45.26 24.50 2.53 0.0012 基块 XG-8 45.04 25.04 2.45 0.0013 基块 1.2 试验装置
应力敏感试验装置主要包括驱替泵、氮气瓶、围压系统、岩心夹持器、质量流量计、回压阀和数据采集系统等，如图1所示。回压阀在岩样出口端施加回压，具有2个作用：1）在测试裂缝岩样的渗透率时消除滑脱效应[19-21]；2）可以提高压力的传递效率，增加孔喉的动用程度，提高基块岩样渗透率的测试效率[22]。
![]()
图 1 应力敏感试验装置1.驱替泵；2.阀门；3.压力传感器；4.岩心夹持器；5.围压系统；6.质量流量计；7.回压阀；8.氮气瓶；9.数据采集系统Figure 1. Stress sensitivity testing device1.3 试验方法
储气库注采过程中的储层有效应力会发生改变，为此开展了应力敏感试验，研究了储气库储层有效应力大小和作用时间对其渗透率的影响。基于研究区储气库储层压力的变化情况，设计了以下具体的试验步骤：1）将预先处理好的岩样放入岩心夹持器，在高围压下对岩样老化处理4 h，使岩样中的孔隙闭合；2）测试有效应力分别为2，10，30，35，45，50和60 MPa时的岩样渗透率，有效应力为上覆岩层压力（围压）与孔隙压力之差；3）在步骤 2）基础上进行考虑有效应力作用时间的应力敏感试验，每个应力加载2 h，每间隔30 min测试一次岩样的渗透率；4）采用应力敏感系数法[18]进行应力敏感程度评价，并运用SEM等手段观察分析了考虑有效应力作用时间的应力敏感试验前后的裂缝壁面。
应力敏感程度评价标准：应力敏感系数Ss≤0.05，为无应力敏感；0.05<Ss≤0.30，应力敏感程度为弱；0.30<Ss≤0.50，应力敏感程度为中等偏弱；0.50<Ss≤0.70，应力敏感程度为中等偏强；0.70<Ss≤1.00，应力敏感程度为强；Ss>1.00，应力敏感程度为极强。
2. 试验结果
2.1 应力敏感试验
岩样应力敏感程度评价结果见表2。由表2可知：裂缝岩样XG-1和XG-2的应力敏感系数为0.34和0.21，应力敏感程度为中等偏弱和弱；基块岩样XG-3和XG-4的应力敏感系数为0.03和0.04，应力敏感程度为无。
表 2 应力敏感程度评价结果Table 2. Evaluation results of stress sensitivity岩样 应力敏感系数 应力敏感程度 备注 XG-1 0.34 中等偏弱 裂缝 XG-2 0.21 弱 裂缝 XG-3 0.03 无 基块 XG-4 0.04 无 基块 2.2 考虑有效应力作用时间的应力敏感试验
考虑有效应力作用时间的岩样应力敏感程度评价结果见表3。由表3可知，裂缝岩样的应力敏感程度为中等偏强—强，基块岩样的应力敏感程度为弱。研究区块储层上覆岩层压力（围压）为30 MPa，储气库的最大注气压力为10 MPa；储气库由枯竭型气藏改建而成，储层孔隙压力最小约1.0 MPa，因此有效应力选20和30 MPa。有效应力恒定，随着有效应力作用时间增长，试验岩样的渗透率降低，其中基块岩样2 h内降低2%～3%，裂缝岩样2 h内降低5%～9%（见图2）。与常规试验结果相比，考虑有效应力作用时间时，裂缝和基块岩样的应力敏感程度均增强。
表 3 考虑有效应力作用时间的应力敏感评价结果Table 3. Stress sensitivity evaluation results considering the duration of effective stress action岩样号 应力敏感系数 应力敏感程度 备注 XG-5 0.75 强 裂缝 XG-6 0.68 中等偏强 裂缝 XG-7 0.18 弱 基块 XG-8 0.19 弱 基块 ![]()
图 2 有效应力作用时间与岩样渗透率的关系Figure 2. Relationship between effective stress action duration and rock sample permeability3. 应力敏感性影响因素分析
3.1 有效应力作用时间
有效应力的变化会引发岩石变形，而岩石的变形主要为骨架颗粒的变形和排列方式的改变。骨架颗粒的变形属于弹性变形，有效应力卸载后通常可以恢复；而骨架颗粒排列方式改变引发的变形通常属于塑性变形，有效应力卸载后难以恢复，属于不可逆变形。对比应力敏感程度评价试验结果（见表2和表3）发现，随着有效应力作用时间增长，裂缝岩样和基块岩样的应力敏感程度均增强。有效应力作用时间增长，岩样骨架颗粒受挤压发生弹性变形，骨架颗粒的排列方式产生相对位移，进而发生塑性变形。碳酸盐岩储层基块胶结致密，骨架颗粒变形的空间很小，因此导致其强度降低的主要原因是，裂缝壁面产生相对位移，导致骨架颗粒排列方式发生改变，从而引起塑性变形。扫描电镜结果表明，试验前岩样裂缝壁面存在致密结构和大量微凸体（见图3（a）），试验后裂缝壁面出现微裂缝和脱落的微粒（图3（b））。随着有效应力增大，裂缝壁面的微凸体发生错动，导致颗粒之间产生相对位移，发生塑性变形，导致岩石强度降低。
![]()
图 3 考虑有效应力作用时间应力敏感试验前后的裂缝壁面扫描电镜图片Figure 3. Scanning electron micrograph of fracture walls before and after stress sensitivity experiment taking into account of the effective stress action duration从图2可以看出，渗透率变化率随着有效应力作用时间的增长可划分为渗透率快速降低、渗透率稳定和渗透率再降低等3个阶段。开始阶段，大量的孔隙和裂缝在有效应力作用下逐渐闭合，导致岩样渗透率快速降低。有效应力作用一段时间后，由于大多数的孔隙和裂缝都已发生闭合，岩样渗透率较为稳定。由于裂缝壁面存在微凸体，尤其是以点状接触的微凸体易发生应力集中，随着有效应力作用时间继续增长，微凸体破碎，并镶嵌在裂缝壁面，诱发微裂缝的萌生，加速天然裂缝的扩展，促使岩石强度降低，强化应力敏感性，最终导致岩样渗透率再次降低[23-24]。
3.2 岩石骨架颗粒
岩石骨架颗粒对岩石强度具有重要作用[25]。当岩石受到有效应力作用时，岩石骨架颗粒承受了绝大部分的应力，因此岩石骨架颗粒会影响岩石的应力敏感性。利用XRD分析试验岩样的矿物组分，结果显示：岩样全岩矿物组分以碳酸盐矿物为主，平均含量为97.2%，其中白云石含量为75.3%，方解石含量为21.9%；石英含量为0.8%，黏土矿物含量为2.0%。黏土矿物主要为绿泥石、伊利石和少量的伊/蒙间层矿物。储层中碳酸盐矿物含量较高，进行酸化改造时会溶蚀碳酸盐矿物等，造成岩石强度降低，使储层的应力敏感性增强。储层基块酸化后，其渗透率和裂缝导流能力在有效应力增大时会降低[26]，从而使注采效率降低。石英强度较高，溶蚀碳酸盐矿物时会暴露出来，可对裂缝形成支撑，但由于其含量较少，对于弱化应力敏感程度的作用很小。
4. 结论与建议
1）未考虑有效应力作用时间时，裂缝岩样的应力敏感程度为弱—中等偏弱，基块岩样为无；考虑有效应力作用时间时，裂缝岩样的应力敏感程度为中等偏强—强，基块岩样为弱。
2）随着有效应力作用时间增长，裂缝岩样和基块岩样的渗透率呈现“快速降低—稳定—降低”的趋势。
3）有效应力作用时间增长使裂缝壁面微凸体破碎，诱发微裂缝的萌生与扩展，导致岩石强度降低，进而强化岩样的应力敏感程度，最终影响储气库的注采效率。
4）建议对碳酸盐岩储层裂缝进行小规模不均匀酸蚀，以达到支撑裂缝的目的，使裂缝保持一定的导流能力。
-
![]()

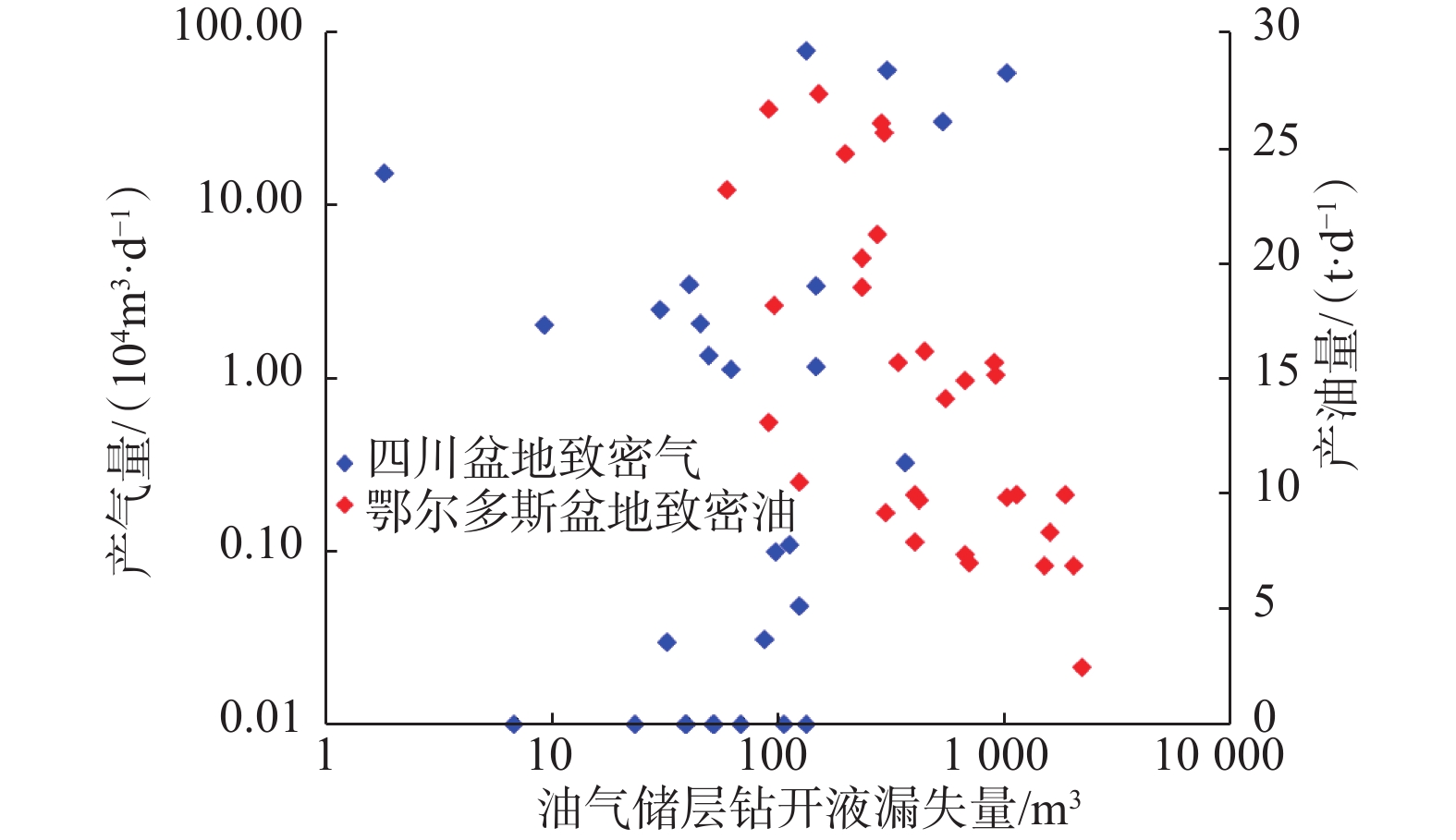

图 1 油气井产量与油气储层钻开液漏失量的统计结果
Figure 1. Statistical results of drill-in fluid loss volume and well production
![]()
![]()
![]()
![]()
![]()
![]()

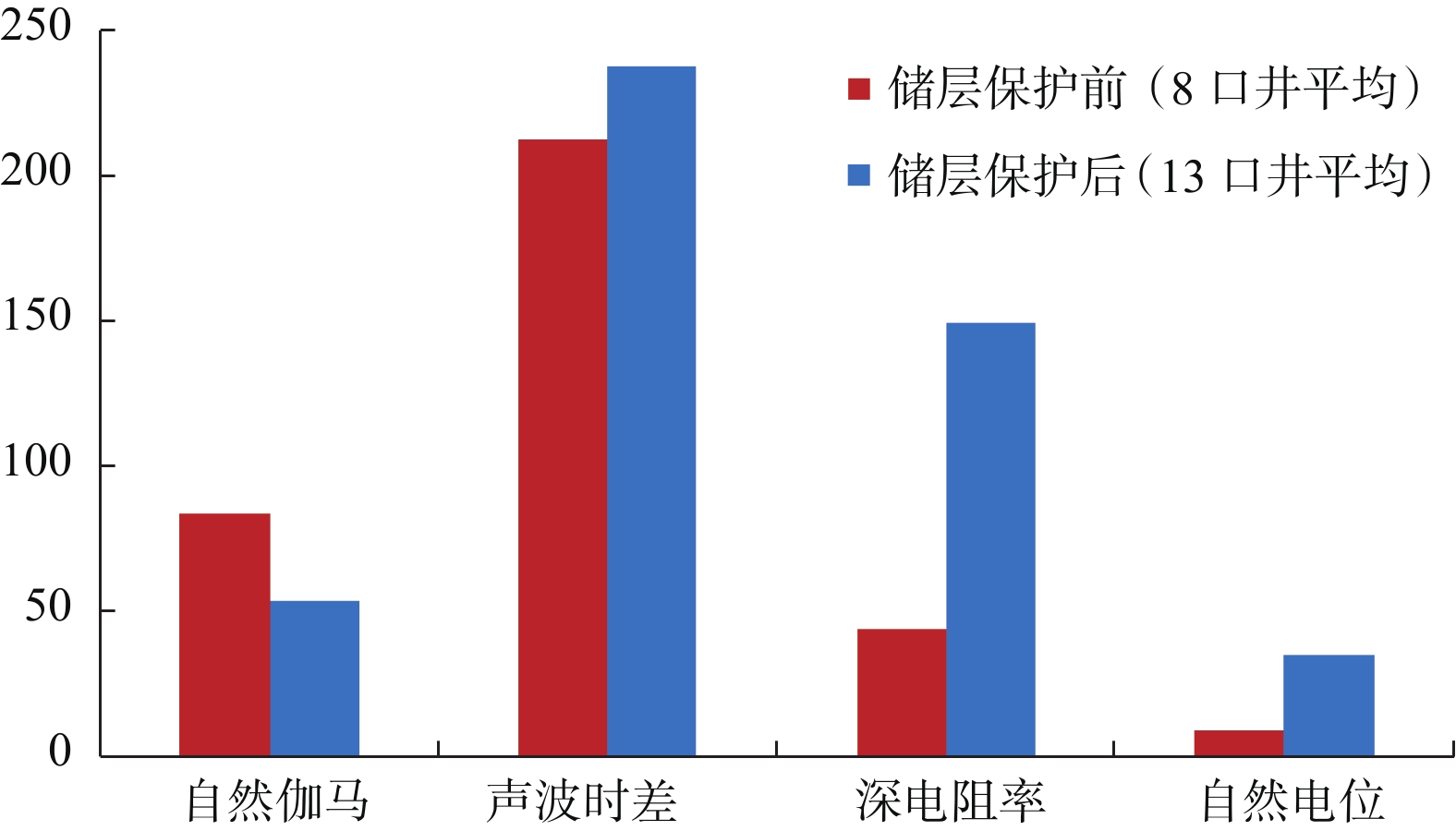

图 8 大牛地气田储层保护前后气层测井解释结果对比
Figure 8. Comparison of logging interpretation results in Dani-udi Gas Field before and after reservoir protection
![]()
![]()
井号 测试层位 测试产量/（104m3·d–1） 备注 D7 石盒子组3段 3.17 非试验井 D10 4.04 非试验井 D15 21.08 试验井 DK2 38.87 试验井 D8 山西组2段 1.54 非试验井 D9 0.24 非试验井 D12 2.31 试验井 D13 7.03 试验井 注：气井均采用水平井加砂压裂+液氮伴注的投产方式。
下载: 导出CSV
表 2 塔里木盆地克深区块超深致密砂岩气藏储层保护效果[55]
Table 2 Protection effect of ultra-deep tight sandstone gas reservoirs in Keshen Block, Tarim Basin[55]
井号 测试井段/m 钻井液漏
失量/m3测试产气量/
(104m3·d–1)备注 KS907 7 509.00～7 635.00 3.40 94.87 试验井 KS905 7 540.00～7 720.00 13.90 96.64 试验井 KS901 7 910.00～7 930.00 242.40 0.74 非试验井 KS902 7 810.00～7 812.00 55.00 45.66 非试验井 KS903 7 559.00～7 641.20 222.41 63.44 非试验井 KS904 7 710.00～7 780.00 309.80 11.96 非试验井
下载: 导出CSV
表 3 化学成膜与物理暂堵技术协同保护储层效果[65]
Table 3 The reservoir protection effects of chemical filming and physical temporary plugging technologies[65]
井号 油气层
厚度/m油气井米采油指数/
(m3·m−1·MPa−1)增产
倍数备注 中30-斜更533 10.5 0.0952 2.11 试验井 中31-更533 7.3 0.4520 非试验井 中32-斜533 15.0 0.5800 1.28 试验井 中31-斜533 7.3 0.4520 非试验井 中30-斜更528 19.1 0.7330 8.63 试验井 中31-斜529 15.3 0.0850 非试验井
下载: 导出CSV
表 4 四川盆地邛西构造须2段致密砂岩气藏储层保护效果
Table 4 Protection effect of Xu 2 tight sandstone gas reservoir in Qiongxi structure, Sichuan Basin
井号 井深/m 完井方式 测试产量/(104m3·d–1) 钻井方法 邛西1 4 450 射孔完井 0.07 常规过平衡 邛西2 3 900 加砂压裂 0.52 邛西3 3 572 先期裸眼 45.67 全过程欠平衡 邛西4 3 852 衬管完井 89.34
下载: 导出CSV
-
[1] 邹才能,潘松圻,荆振华,等. 页岩油气革命及影响[J]. 石油学报, 2020, 41(1): 1–12. doi: 10.1038/s41401-019-0299-4 ZOU Caineng, PAN Songqi, JING Zhenhua, et al. Shale oil and gas revolution and its impact[J]. Acta Petrolei Sinica, 2020, 41(1): 1–12. doi: 10.1038/s41401-019-0299-4
[2] 邹才能,潘松圻,赵群. 论中国“能源独立”战略的内涵、挑战及意义[J]. 石油勘探与开发, 2020, 47(2): 416–426. ZOU Caineng, PAN Songqi, ZHAO Qun. On the connotation, challen-ges and significance of China’s“energy independence”strategy[J]. Petroleum Exploration and Development, 2020, 47(2): 416–426.
[3] 罗平亚,康毅力,孟英峰. 我国储层保护技术实现跨越式发展[J]. 天然气工业, 2006, 26(1): 84–87. LUO Pingya, KANG Yili, MENG Yingfeng. China’s reservoir protection technologies develop in leaps[J]. Natural Gas Industry, 2006, 26(1): 84–87.
[4] ZHANG Dujie, KANG Yili, YOU Lijun, et al. Investigation of formation damage induced during drill-in process of ultra-deep fractured tight sandstone gas reservoirs[J]. Journal of Energy Resources Technology, 2018, 141(7): 1–11.
[5] 康毅力,罗平亚. 中国致密砂岩气藏勘探开发关键工程技术现状与展望[J]. 石油勘探与开发, 2007, 34(2): 239–245. KANG Yili, LUO Pingya. Current status and prospect of key techniques for exploration and production of tight sandstone gas reservoirs in China[J]. Petroleum Exploration and Development, 2007, 34(2): 239–245.
[6] BENNION D B. An overview of formation damage mechanisms causing a reduction in the productivity and injectivity of oil and gas producing formations[J]. Journal of Canadian Petroleum Technology, 2002, 44(11): 29–36.
[7] XU Chengyuan, KANG Yili, YOU Zhenjiang, et al. Review on formation damage mechanisms and processes in shale gas reservoir: known and to be known[J]. Journal of Natural Gas Science and Engineering, 2016, 36: 1208–1219. doi: 10.1016/j.jngse.2016.03.096
[8] 徐同台, 熊友明, 康毅力．保护油气层技术[M]．3版．北京: 石油工业出版社, 2010． XU Tongtai, XIONG Youming, KANG Yili. Technology for protecting oil and gas layers[M]. 3rd ed. Beijing: Petroleum Industry Press, 2010.
[9] CIVAN F. Reservoir formation damage[M]. 2nd ed. London: Gulf Professional Publishing, 2015.
[10] 康毅力,罗平亚. 储层保护系统工程:实践与认识[J]. 钻井液与完井液, 2007, 24(1): 1–7. KANG Yili, LUO Pingya. System engineering of reservoir preservation: practice and theory[J]. Drilling Fluid & Completion Fluid, 2007, 24(1): 1–7.
[11] KANG Yili, XU Chengyuan, YOU Lijun, et al. Comprehensive evaluation of formation damage induced by working fluid loss in fractured tight gas reservoir[J]. Journal of Natural Gas Science and Engineering, 2014, 18: 353–359. doi: 10.1016/j.jngse.2014.03.016
[12] WANG Hanyi. What factors control shale-gas production and production-decline trend in fractured systems: a comprehensive analysis and investigation[J]. SPE Journal, 2017, 22(2): 562–581. doi: 10.2118/179967-PA
[13] CUI Q, ABASS H H. Experimental study of permeability decline in tight formations during long-term depletion[R]. SPE 180257, 2016.
[14] LIANG Tianbo, GU Fuyang, YAO Erdong, et al. Formation damage due to drilling and fracturing fluids and its solution for tight naturally fractured sandstone reservoirs[J/OL]. Geofluids, 2017[2020-03-20]. https://doi.org/10.1155/2017/9350967.
[15] 黄维安,邱正松,岳星辰,等. 页岩气储层损害机制及保护水基钻完井液技术[J]. 中国石油大学学报(自然科学版), 2014, 38(3): 99–105. HUANG Weian, QIU Zhengsong, YUE Xingchen, et al. Damage mechanism and water-based drilling fluid protection technology for shale gas reservoir[J]. Journal of China University of Petroleum (Edition of Natural Science), 2014, 38(3): 99–105.
[16] RAHMAN M K, SUAREZ Y A, CHEN Z, et al. Unsuccessful hydraulic fracturing cases in Australia: investigation into causes of failures and their remedies[J]. Journal of Petroleum Science and Engineering, 2007, 57(1/2): 70–81. doi: 10.1016/j.petrol.2005.07.009
[17] 康毅力,杨斌,游利军,等. 油基钻井完井液对页岩储层保护能力评价[J]. 天然气工业, 2013, 33(12): 99–104. KANG Yili, YANG Bin, YOU Lijun, et al. Damage evaluation of oil-based drill-in fluids to shale reservoirs[J]. Natural Gas Industry, 2013, 33(12): 99–104.
[18] XU Chengyuan, KANG Yili, YOU Lijun, et al. Lost-circulation control for formation-damage prevention in naturally fractured reservoir: mathematical model and experimental study[J]. SPE Journal, 2017, 22(5): 1654–1670. doi: 10.2118/182266-PA
[19] 许成元,闫霄鹏,康毅力,等. 深层裂缝性储集层封堵层结构失稳机理与强化方法[J]. 石油勘探与开发, 2020, 47(2): 399–408. XU Chengyuan, YAN Xiaopeng, KANG Yili, et al. Structural failure mechanism and strengthening method of plugging zone in deep naturally fractured reservoirs[J]. Petroleum Exploration and Development, 2020, 47(2): 399–408.
[20] XU Chengyuan, YOU Zhenjiang, KANG Yili, et al. Stochastic modelling of particulate suspension transport for formation damage prediction in fractured tight reservoir[J]. Fuel, 2018, 221: 476–490. doi: 10.1016/j.fuel.2018.02.056
[21] 许成元,康毅力,游利军,等. 裂缝性储层渗透率返排恢复率的影响因素[J]. 石油钻探技术, 2012, 40(6): 17–21. XU Chengyuan, KANG Yili, YOU Lijun, et al. Influential factors on permeability recovery during flowback of fractured reservoirs[J]. Petroleum Drilling Techniques, 2012, 40(6): 17–21.
[22] ZHANG Dujie, KANG Yili, SELVADURAI A P S, et al. The role of phase trapping on permeability reduction in an ultra-deep tight sandstone gas reservoirs[J]. Journal of Petroleum Science and Engineering, 2019, 178: 311–323. doi: 10.1016/j.petrol.2019.03.045
[23] ZHANG Hao, ZHONG Ying, KURU E, et al. Impacts of permeability stress sensitivity and aqueous phase trapping on the tight sandstone gas well productivity: a case study of the Daniudi Gas Field[J]. Journal of Petroleum Science and Engineering, 2019, 177: 261–269. doi: 10.1016/j.petrol.2019.02.044
[24] 张涛,李相方,王永辉,等. 页岩储层特殊性质对压裂液返排率和产能的影响[J]. 天然气地球科学, 2017, 28(6): 828–838. ZHANG Tao, LI Xiangfang, WANG Yonghui, et al. Study on the effect of gas-shale reservoir special properties on the fracturing fluidrecovery efficiency and production performance[J]. Natural Gas Geoscience, 2017, 28(6): 828–838.
[25] 刘乃震,柳明,张士诚. 页岩气井压后返排规律[J]. 天然气工业, 2015, 35(3): 50–54. LIU Naizhen, LIU Ming, ZHANG Shicheng. Flowback patterns of fractured shale gas wells[J]. Natural Gas Industry, 2015, 35(3): 50–54.
[26] GHANBARI E, ABBASI M A, DEHGHANPOUR H, et al. Flowback volumetric and chemical analysis for evaluating load recovery and its impact on early-time production[R]. SPE 167165, 2013.
[27] MIRZAEI-PAIAMAN A, MASIHI M, MOGHADASI J. Formation damage through aqueous phase trapping: a review of the evaluating methods[J]. Petroleum Science and Technology, 2011, 29(11): 1187–1196. doi: 10.1080/10916460903551073
[28] PHAN T, KAZEMPOUR M, NGUYEN D, et al. Treating liquid banking problem to increase shale gas wells productivity[R]. SPE 189523, 2018.
[29] PENG Yan, QU Hongyan, LIU Jishan, et al. Impact of fluid adsorption on geomechanical properties of shale gas reservoir and shale gas recovery rate[R]. ARMA-2018-342, 2018.
[30] ZHANG Junjing, OUYANG Liangchen, ZHU Ding, et al. Experimental and numerical studies of reduced fracture conductivity due to proppant embedment in the shale reservoirs[J]. Journal of Petroleum Science and Engineering, 2015, 130: 37–45. doi: 10.1016/j.petrol.2015.04.004
[31] ZHANG Junjing, ZHU Ding, HILL A D. Water-induced damage to propped-fracture conductivity in shale formations[J]. SPE Production & Operations, 2016, 31(2): 334–343.
[32] SABOORIAN-JOOYBARI H, POURAFSHARY P. Potential severity of phase trapping in petroleum reservoirs: an analytical approach to prediction[J]. SPE Journal, 2017, 22(3): 863–874. doi: 10.2118/183631-PA
[33] BAHRAMI H, REZAEE R, CLENNELL B. Water blocking damage in hydraulically fractured tight sand gas reservoirs: an example from Perth Basin, Western Australia[J]. Journal of Petroleum Science and Engineering, 2012, 88/89: 100–106. doi: 10.1016/j.petrol.2012.04.002
[34] YOU Lijun, KANG Yili. Integrated evaluation of water phase trapping damage potential in tight gas reservoirs[R]. SPE 122034, 2009.
[35] PAGELS M, WILLBERG D M, EDELMAN E, et al. Quantifying fracturing fluid damage on reservoir rock to optimize production[R]. SPE 1578948, 2013.
[36] DING D Y, LANGOUËT H, JEANNIN L. Simulation of fracturing-induced formation damage and gas production from fractured wells in tight gas reservoirs[R]. SPE Production & Operations, 2013, 28(3): 13-22.
[37] ZOLFAGHARI A, DEHGHANPOUR H, NOEL M, et al. Laboratory and field analysis of flowback water from gas shales[J]. Journal of Unconventional Oil and Gas Resources, 2016, 14: 113–127. doi: 10.1016/j.juogr.2016.03.004
[38] NICOT J P, SCANLON B R, REEDY R C, et al. Source and fate of hydraulic fracturing water in the Barnett shale: a historical perspective[J]. Environmental Science & Technology, 2014, 48(4): 2464–2471.
[39] 游利军,谢本彬,杨建,等. 页岩气井压裂液返排对储层裂缝的损害机理[J]. 天然气工业, 2018, 38(12): 61–69. YOU Lijun, XIE Benbin, YANG Jian, et al. Mechanism of fracture damage induced by fracturing fluid flowback in shale gas reservoirs[J]. Natural Gas Industry, 2018, 38(12): 61–69.
[40] YANG Bin, ZHANG Hao, KANG Yili. In situ sequestration of a hydraulic fracturing fluid in Longmaxi shale gas formation in the Sichuan Basin[R]. Energy & Fuels, 2019, 33(8): 6983–6994.
[41] XU Chengyuan, LIN Chong, KANG Yili, et al. An experimental study on porosity and permeability stress-sensitive behavior of sandstone under hydrostatic compression: characteristics, mechanisms and controlling factors[J]. Rock Mechanics and Rock Engineering, 2018, 51: 2321–2338. doi: 10.1007/s00603-018-1481-6
[42] BAI Jiajia, KANG Yili, CHEN Zhangxin, et al. Changes in retained fracturing fluid properties and their effect on shale mechanical properties[J]. Journal of Natural Gas Science and Engineering, 2020, 75: 1–12.
[43] 唐建新, 腾俊洋, 张闯, 等. 层状含水页岩蠕变特性试验研究[J].岩土力学, 2018, 39(增刊1):33–41. TANG Jianxin, TENG Junyang, ZHANG Chuang, et al. Experimental study on creep characteristics of layered water bearing shale[J]. Rock and Soil Mechanics, 2018, 39(supplement 1): 33–41.
[44] CHEN Tianyu, FENG Xiating, CUI Guanglei, et al. Experimental study of permeability change of organic-rich gas shales under high effective stress[J]. Journal of Natural Gas Science and Engineering, 2019, 64: 1–14. doi: 10.1016/j.jngse.2019.01.014
[45] SLIM M, HOFMANN R, SAXENA N, et al. Impact of mineralogy on creep properties and production decline rates[R].ARMA-2019-2065, 2019.
[46] ZHANG Dujie, KANG Yili, YOU Lijun, et al. Investigation of multi-scale approach for damage control in ultra-deep tight sandstone gas reservoirs based on the multi-scale formation damage mechanisms[R]. IPTC 19254, 2019.
[47] 罗向东,罗平亚. 屏蔽式暂堵技术在储层保护中的应用研究[J]. 钻井液与完井液, 1992, 9(2): 19–27. LUO Xiangdong, LUO Pingya. Protecting oil reservoir with temporary shielding method[J]. Drilling Fluid & Completion Fluid, 1992, 9(2): 19–27.
[48] 蒋官澄,鄢捷年,王富华,等. 新型屏蔽暂堵技术在大宛齐地区的应用[J]. 石油钻探技术, 1999, 27(6): 21–23. JIANG Guancheng, YAN Jienian, WANG Fuhua, et al. Applications of temporary plugging techniques in Dawanqi Area[J]. Petroleum Drilling Techniques, 1999, 27(6): 21–23.
[49] 蒋官澄,胡成亮,熊英,等. 广谱“油膜”暂堵钻井液体系研究[J]. 中国石油大学学报(自然科学版), 2006, 30(4): 53–57. JIANG Guancheng, HU Chengliang, XIONG Ying, et al. Study on system of broad-spectrum oil-film temporary plugging drilling fluid[J]. Journal of China University of Petroleum(Edition of Natural Science), 2006, 30(4): 53–57.
[50] 李志勇,鄢捷年,王友兵,等. 保护储层钻井液优化设计新方法及其应用[J]. 钻采工艺, 2006, 29(2): 85–87. LI Zhiyong, YAN Jienian, WANG Youbing, et al. New optimized design method and application of drilling fluid used for formation damage control[J]. Drilling & Production Technology, 2006, 29(2): 85–87.
[51] 鄢捷年,赵胜英,王兆霖,等. 理想充填油气层保护技术在青海油田深探井中的应用[J]. 石油钻探技术, 2007, 35(4): 53–55. YAN Jienian, ZHAO Shengying, WANG Zhaolin, et al. Application of formation damage control technology based on ideal packingtheory to deep exploration wells in Qinghai Oilfield[J]. Petroleum Drilling Techniques, 2007, 35(4): 53–55.
[52] 吕开河,邱正松,王在明. 自适应屏蔽暂堵钻井液技术[J]. 中国石油大学学报(自然科学版), 2008, 32(2): 68–71. LV Kaihe, QIU Zhengsong, WANG Zaiming. Techniques of auto-adapting shielding and temporary plugging drilling fluid[J]. Journal of China University of Petroleum(Edition of Natural Science), 2008, 32(2): 68–71.
[53] KANG Yili, XU Chengyuan, YOU Lijun, et al. Temporary sealing technology to control formation damage induced by drill-in fluid loss in fractured tight gas reservoir[J]. Journal of Natural GasScience and Engineering, 2014, 20: 67–73. doi: 10.1016/j.jngse.2014.06.016
[54] 闫丰明,康毅力,孙凯,等. 裂缝–孔洞型碳酸盐岩储层暂堵性堵漏机理研究[J]. 石油钻探技术, 2011, 39(2): 81–85. YAN Fengming, KANG Yili, SUN Kai, et al. Mechanism oftemporary sealing for fractured-vuggy carbonate reservoir[J]. Petroleum Drilling Techniques, 2011, 39(2): 81–85.
[55] SELVADURAI A P S, ZHANG Dujie, KANG Yili. Permeability evolution in natural fractures and their potential influence on loss of productivity in ultra-deep gas reservoirs of the Tarim Basin, China[J]. Journal of Natural Gas Science and Engineering, 2018, 58: 162–177. doi: 10.1016/j.jngse.2018.07.026
[56] 朱金智,游利军,李家学,等. 油基钻井液对超深裂缝性致密砂岩气藏的保护能力评价[J]. 天然气工业, 2017, 37(2): 62–68. ZHU Jinzhi, YOU Lijun, LI Jiaxue, et al. Damage evaluation on oil-based drill-in fluids for ultra-deep fractured tight sandstone gas reservoirs[J]. Natural Gas Industry, 2017, 37(2): 62–68.
[57] 蒋官澄,马先平,纪朝凤,等. 广谱“油膜”暂堵剂在油层保护技术中的应用[J]. 应用化学, 2007, 24(6): 665–669. JIANG Guancheng, MA Xianping, JI Chaofeng, et al. Application of a broad-spectrum oil-film temporary plugging agent to reservoir protection[J]. Chinese Journal of Applied Chemistry, 2007, 24(6): 665–669.
[58] 孙金生．水基钻井液成膜技术研究[D]．成都: 西南石油大学, 2006． SUN Jinsheng. Research on film-forming technology of water-based drilling fluid[D]. Chengdu: Southwest Petroleum University, 2006.
[59] 王伟吉,邱正松,暴丹,等. 温压成膜封堵技术研究及应用[J]. 特种油气藏, 2015, 22(1): 144–147. WANG Weiji, QIU Zhengsong, BAO Dan, et al. Warm-compaction film-forming plugging and its application[J]. Special Oil & Gas Reservoirs, 2015, 22(1): 144–147.
[60] 袁春,孙金声,王平全,等. 抗高温成膜降滤失剂CMJ-1的研制及其性能[J]. 石油钻探技术, 2004, 32(2): 30–32. YUAN Chun, SUN Jinsheng, WANG Pingquan, et al. Development of CMJ-1: a high temperature film-forming fluid loss additive and the properties[J]. Petroleum Drilling Techniques, 2004, 32(2): 30–32.
[61] 蒋官澄,毛蕴才,周宝义,等. 暂堵型保护油气层钻井液技术研究进展与发展趋势[J]. 钻井液与完井液, 2018, 35(2): 1–16. JIANG Guancheng, MAO Yuncai, ZHOU Baoyi, et al. Progress made and trend of development in studying on temporarily type plugging reservoir protection drilling fluids[J]. Drilling Fluid & Completion Fluid, 2018, 35(2): 1–16.
[62] MOHAMMADI M K, NOWTARKI K T, GHALAMBOR A. Successful application of non-damaging drill-in-fluids proves oil production improvement in heavy oil reservoirs[R]. SPE 199326, 2020.
[63] 孙金声,苏义脑,罗平亚,等. 超低渗透钻井液提高地层承压能力机理研究[J]. 钻井液与完井液, 2005, 22(5): 1–3. SUN Jinsheng, SU Yinao, LUO Pingya, et al. Mechanism study on ultra-low invasion drilling fluid for improvement of formation pressure-bearing ability[J]. Drilling Fluid & Completion Fluid, 2005, 22(5): 1–3.
[64] 孙金声,唐继平,张斌,等. 几种超低渗透钻井液性能测试方法[J]. 石油钻探技术, 2005, 33(6): 25–27. SUN Jinsheng, TANG Jiping, ZHANG Bin, et al. Methods for testing properties of ultra-low permeable drilling fluid[J]. Petroleum Drilling Techniques, 2005, 33(6): 25–27.
[65] JIANG Guancheng, XUAN Yang, WU Xianzhu, et al. Method for preparation of biomimetic polymer for stabilizing wellbore and drilling fluid: US9410068[P]. 2016-08-09.
[66] 谢晓永,孟英峰,唐洪明,等. 裂缝性低渗砂岩气藏水基钻井液欠平衡钻井储层保护[J]. 石油钻探技术, 2008, 36(5): 51–53. XIE Xiaoyong, MENG Yingfeng, TANG Hongming, et al. Underbalanced water based mud to protect fractured tight sandstone gas reservoirs[J]. Petroleum Drilling Techniques, 2008, 36(5): 51–53.
[67] 胡进科,李皋,孟英峰. 页岩气钻井过程中的储层保护[J]. 天然气工业, 2012, 32(12): 66–70. HU Jinke, LI Gao, MENG Yingfeng. Reservoir protection in the process of shale gas drilling[J]. Natural Gas Industry, 2012, 32(12): 66–70.
[68] 李皋,孟英峰,钟水清,等. MRC井与UBD相结合的技术潜力研究[J]. 钻采工艺, 2010, 33(1): 28–30. LI Gao, MENG Yingfeng, ZHONG Shuiqing, et al. Technical research on combination of MRC well and UBD technology[J]. Drilling & Production Technology, 2010, 33(1): 28–30.
[69] 刘雪芬,康毅力,罗平亚,等. 界面修饰对致密砂岩气藏微孔系统渗流的调控[J]. 油田化学, 2015, 32(1): 137–140. LIU Xuefen, KANG Yili, LUO Pingya, et al. Seepage regulation of micro-pore system in tight sandstone gas reservoirs by interfacial modification[J]. Oilfield Chemistry, 2015, 32(1): 137–140.
[70] 刘雪芬,康毅力,罗平亚,等. 氟化物对致密砂岩气体渗流能力的影响[J]. 石油学报, 2015, 36(8): 995–1003. LIU Xuefen, KANG Yili, LUO Pingya, et al. Impact of fluoride on seepage ability of tight sandstone[J]. Acta Petrolei Sinica, 2015, 36(8): 995–1003.
[71] 蒋官澄, 张县民, 王乐, 等．双阳离子氟碳表面活性剂及其制备方法和作为双疏型润湿反转剂的应用和钻井液及其应用: CN201710038133.1[P]．2018-02-06． JIANG Guancheng, ZHANG Xianmin, WANG Le, et al. Double cation fluorocarbon surfactant and its preparation method and application as a double-phobic wetting inversion agent and drilling fluid and its application: CN201710038133.1[P]. 2018-02-06.
-
