Key Drilling Technologies for the Ultra-Deep Well Manshen 1 in the Tarim Basin
-
摘要:
满深1井是位于塔里木盆地塔北隆起满深1号断裂带上的一口预探井，钻井过程中存在二叠系玄武岩漏失与垮塌同存，志留系塔塔埃尔塔格组可钻性差、钻头磨损快，奥陶系桑塔木组易井斜与井壁失稳垮塌等技术难点。为此，研究应用了二叠系优快钻井技术、志留系减振提速技术和奥陶系防斜防塌技术，有效解决了该井面临的钻井技术难点：应用混合钻头+螺杆钻具提速技术一趟钻钻穿二叠系玄武岩地层，应用聚磺钻井液体系确保了二叠系地层的安全钻进，未发生漏失及垮塌等井下故障，与邻井相比机械钻速提高了265.96%；应用个性化PDC钻头+TorkBuster扭力冲击器一趟钻钻穿志留系地层，且钻进期间扭矩稳定、粘滑振动弱，减振提速效果明显；应用预弯曲动力学防斜钻具组合钻进奥陶系高陡地层，防斜打直效果明显；应用高性能防塌水基钻井液安全钻穿奥陶系硬脆性泥岩，井壁稳定效果显著。该井试油获得高产工业油流，实现了塔里木盆地超深层油气勘探的重大突破，形成的超深层碳酸盐岩钻井完井技术为塔里木油田深层油气勘探开发提供了技术支撑。

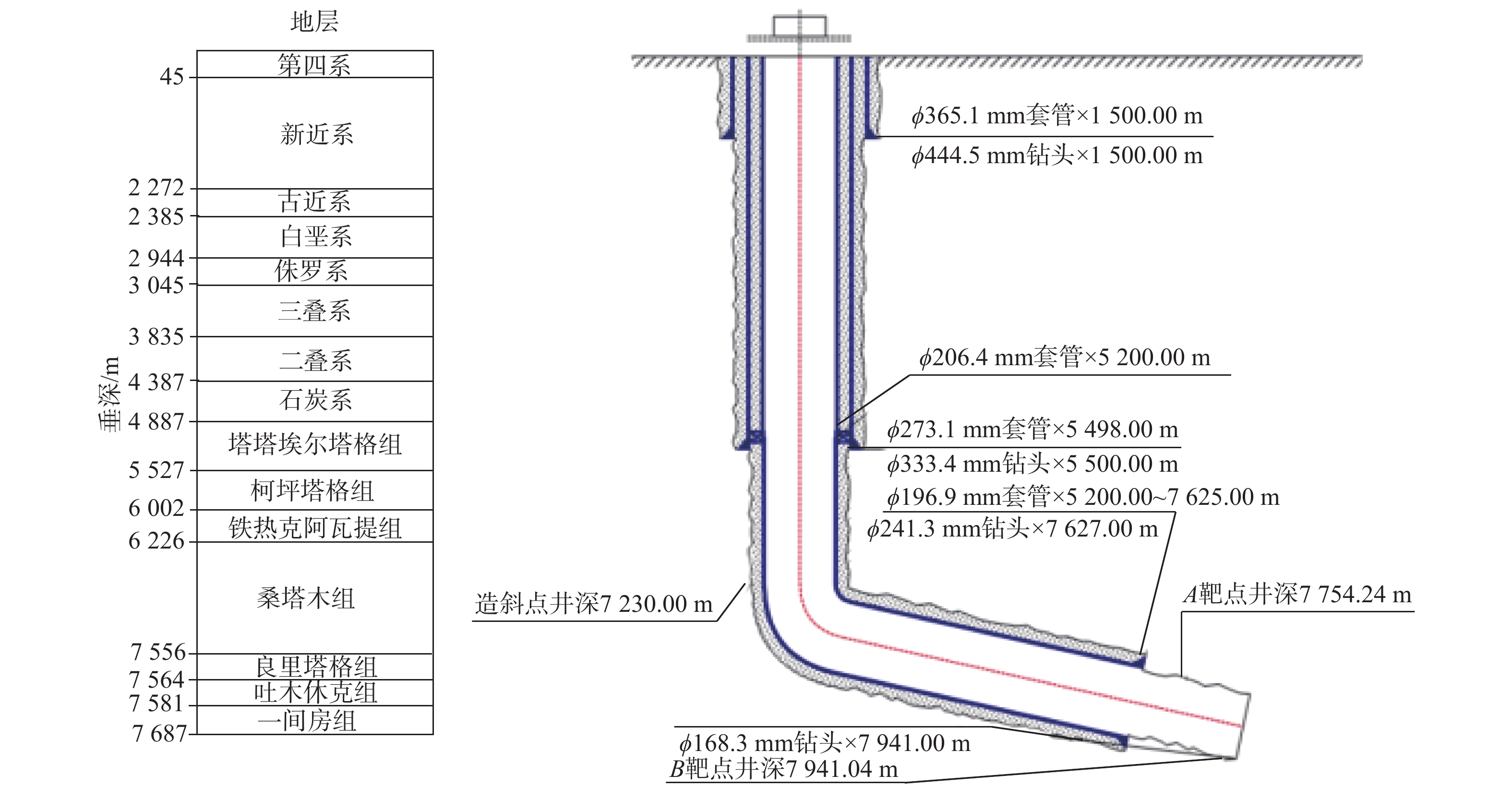

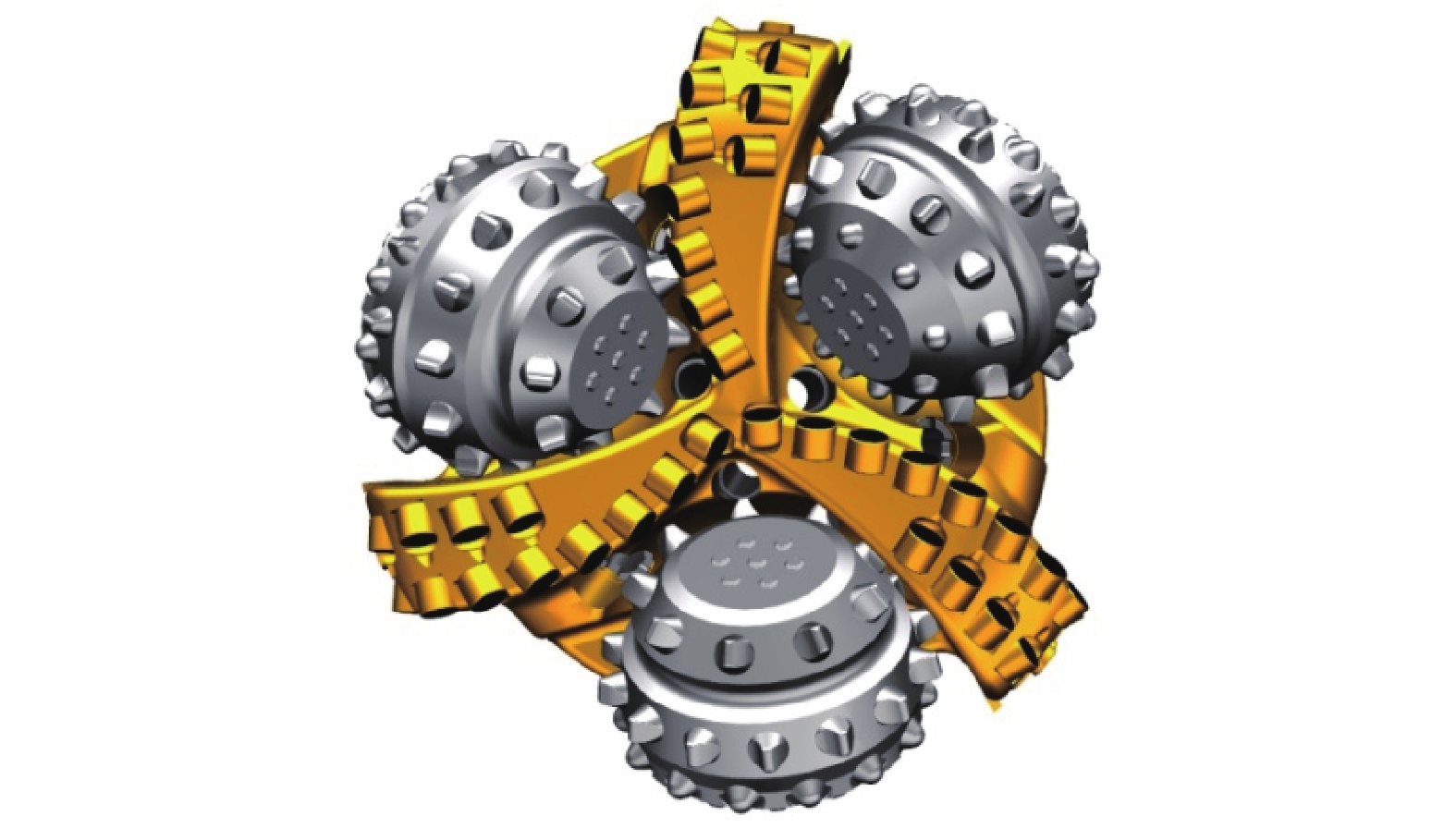

Abstract:Well Manshen 1 is a pre-exploration well deployed on the Manshen No. 1 fault zone of the Tabei uplift in the Tarim Basin. During the drilling process, this well suffered from both lost circulation and the collapse of Permian basalt. Further, the development of the well was challenged by poor drillability and rapid bit wear in Silurian Tataaiertage Formation, and the slanting and wellbore instability/collapse in Ordovician Santamu Formation. Through technical research, a series of technologies and interventions strategies such as Permian “2X Excellence” drilling, the Silurian vibration reduction and accelerated drilling, and the Ordovician anti-slanting/ collapse drilling were developed, which effectively solved those challenges. The application of hybrid drilling bit+ PDM fast drilling technology successfully penetrating Permian basalt in one trip; the application of polysulfonate drilling fluid system ensuring the safe drilling in Permian strata, and eliminating the downhole failures such as leakage and collapse. Compared with the adjacent wells, the ROP was increased by 265.96%; the customized PDC bit + TorkBuster torque impactor successfully penetrating Silurian strata in one trip, the torque was stable and the stick-slip vibration was weak during the drilling, and the effects of vibration reduction and speed up were clear. The application of pre-bending downhole motor BHA successfully allowed the drillbit to penetrae the Ordovician large dip-angle strata. In this, the anti-slanting effect was obvious; the application of high-performance anti-collapse water-based drilling fluid system safely drilling through the Ordovician hard and brittle mudstone, which achieved a remarkable borehole stabilization effect. This well achieved high-production industrial oil flow drilling oil testing, brought about a major breakthrough in ultra-deep oil and gas exploration of the Tarim Basin, and initially formed the ultra-deep carbonate drilling/completion technologies, which provided technical supports and best practice for the deep oil and gas exploration & development the of Tarim Oilfield.
-
-
表 1 满深1井志留系塔塔埃尔塔格组钻头应用情况
Table 1 The application of bit in the Silurian Tataaiertage Formation of Well Manshen 1
PDC钻头型号 钻进井段/m 进尺/
m纯钻时间/
h机械钻速/
（m·h–1）DXS1654 4 885.00～4 918.00 33.00 11.0 3.00 DXS1654 4 918.00～4 975.00 57.00 19.0 3.00 KS1652DGRX 4 975.00～5 014.80 39.80 23.0 1.73 DXS1654 5 016.65～5 032.60 15.95 10.0 1.60 KS1652DGRX 5 032.60～5 124.59 91.99 17.0 5.40 KS1652DGRX 5 127.00～5 209.45 82.45 19.5 4.23
下载: 导出CSV
-
[1] 赵志国,白彬珍,何世明,等. 顺北油田超深井优快钻井技术[J]. 石油钻探技术, 2017, 45(6): 8–13. ZHAO Zhiguo, BAI Binzhen, HE Shiming, et al. Optimization of fast drilling technology for ultra-deep wells in the Shunbei Oilfield[J]. Petroleum Drilling Techniques, 2017, 45(6): 8–13.
[2] 李大奇,康毅力,刘修善,等. 裂缝性地层钻井液漏失动力学模型研究进展[J]. 石油钻探技术, 2013, 41(4): 42–47. doi: 10.3969/j.issn.1001-0890.2013.04.010 LI Daqi, KANG Yili, LIU Xiushan, et al. Progress in drilling fluid loss dynamics model for fractured formations[J]. Petroleum Drilling Techniques, 2013, 41(4): 42–47. doi: 10.3969/j.issn.1001-0890.2013.04.010
[3] 胡大梁,严焱诚,李群生,等. 混合钻头在元坝须家河组高研磨性地层的应用[J]. 钻采工艺, 2013, 36(6): 8–12. doi: 10.3969/J.ISSN.1006-768X.2013.06.03 HU Daliang, YAN Yancheng, LI Qunsheng, et al. Application of hybrid drill bit in Xujiahe high abrasive formation of Yuanba Gas Field[J]. Drilling & Production Technology, 2013, 36(6): 8–12. doi: 10.3969/J.ISSN.1006-768X.2013.06.03
[4] 杨顺辉,武好杰,牛成成,等. 特种孕镶块加强PDC钻头的研制与试验[J]. 石油钻探技术, 2014, 42(6): 111–114. YANG Shunhui, WU Haojie, NIU Chengcheng, et al. Manufacture and application of PDC bit enhanced by special diamond-impregnatedsegment[J]. Petroleum Drilling Techniques, 2014, 42(6): 111–114.
[5] 陈星星. 混合钻头在涪陵页岩气田的应用[J]. 探矿工程(岩土钻掘工程), 2019, 46(10): 34–39. CHEN Xingxing. Application of hybrid drill bits in Fuling Shale Gas Field[J]. Exploration Engineering(Rock & Soil Drilling and Tunneling), 2019, 46(10): 34–39.
[6] 朱宽亮,周岩,胡中志. PDC-牙轮复合钻头在南堡油田大斜度井的应用[J]. 石油钻探技术, 2017, 45(6): 60–64. ZHU Kuanliang, ZHOU Yan, HU Zhongzhi. Application of a PDC-roller hybrid bit in highly-deviated wells of the Nanpu Oilfield[J]. Petroleum Drilling Techniques, 2017, 45(6): 60–64.
[7] 孙源秀,邹德永,郭玉龙,等. 切削-犁削混合钻头设计及现场应用[J]. 石油钻采工艺, 2016, 38(1): 53–56. SUN Yuanxiu, ZOU Deyong, GUO Yulong, et al. Design and field application of plow-cutting PDC bit[J]. Oil Drilling & Production Technology, 2016, 38(1): 53–56.
[8] 林四元,李中,黄熠,等. 南海文昌区块深部地层旋转切削齿PDC钻头提速技术[J]. 石油钻探技术, 2017, 45(6): 65–69. LIN Siyuan, LI Zhong, HUANG Yi, et al. Technique for enhancing the rate of penetration through the application of a new PDC bit with rotary cutters in deep formations in the Wenchang Block[J]. Petroleum Drilling Techniques, 2017, 45(6): 65–69.
[9] 王滨,李军,邹德永,等. 适合强研磨性硬地层PDC-金刚石孕镶块混合钻头设计与应用[J]. 特种油气藏, 2018, 25(1): 169–176. doi: 10.3969/j.issn.1006-6535.2018.01.035 WANG Bin, LI Jun, ZOU Deyong, et al. Design and application of a PDC hybrid drill bit with impregnated diamond insert for the hard formation with strong abrasivity[J]. Special Oil & Gas Reservoirs, 2018, 25(1): 169–176. doi: 10.3969/j.issn.1006-6535.2018.01.035
[10] 张进双,张增宝,王学才. 刀翼式孕镶金刚石钻头设计及在哈山101井的应用[J]. 石油钻探技术, 2019, 47(5): 57–61. ZHANG Jinshuang, ZHANG Zengbao, WANG Xuecai. The design of blade type diamond-impregnated bit and it’s application in Well Hashan 101[J]. Petroleum Drilling Techniques, 2019, 47(5): 57–61.
[11] 彭齐,周英操,周波,等. 凸脊型非平面齿PDC钻头的研制与现场试验[J]. 石油钻探技术, 2020, 48(2): 49–55. doi: 10.11911/syztjs.2020035 PENG Qi, ZHOU Yingcao, ZHOU Bo, et al. Development and field test of a non-planar cutter PDC bit with convex ridges[J]. Petroleum Drilling Techniques, 2020, 48(2): 49–55. doi: 10.11911/syztjs.2020035
[12] 滕学清,白登相,杨成新,等. 塔北地区深井钻井提速配套技术及其应用效果[J]. 天然气工业, 2013, 33(7): 68–73. doi: 10.3787/j.issn.1000-0976.2013.07.012 TENG Xueqing, BAI Dengxiang, YANG Chengxin, et al. ROP enhancing technologies and their application in deep wells in the Northern Tarim Basin[J]. Natural Gas Industry, 2013, 33(7): 68–73. doi: 10.3787/j.issn.1000-0976.2013.07.012
[13] 李宁,周小君,周波,等. 塔里木油田HLHT区块超深井钻井提速配套技术[J]. 石油钻探技术, 2017, 45(2): 10–14. LI Ning, ZHOU Xiaojun, ZHOU Bo, et al. Technologies for fast drilling ultra-deep wells in the HLHT Block, Tarim Oilfield[J]. Petroleum Drilling Techniques, 2017, 45(2): 10–14.
[14] 胡群爱,孙连忠,张进双,等. 硬地层稳压稳扭钻井提速技术[J]. 石油钻探技术, 2019, 47(3): 107–112. doi: 10.11911/syztjs.2019053 HU Qun’ai, SUN Lianzhong, ZHANG Jinshuang, et al. Technology for drilling speed increase using stable WOB/torque for hard formations[J]. Petroleum Drilling Techniques, 2019, 47(3): 107–112. doi: 10.11911/syztjs.2019053
[15] 汪为涛. 非均质地层锥形辅助切削齿PDC钻头设计与试验[J]. 石油钻探技术, 2018, 46(2): 58–62. WANG Weitao. Design and test of a new PDC bit with tapered auxiliary cutter for heterogeneous formations[J]. Petroleum Drilling Techniques, 2018, 46(2): 58–62.
[16] 王沫,杜欢,伊尔齐木,等. 顺南井区优快钻井技术[J]. 石油钻探技术, 2015, 43(3): 50–54. WANG Mo, DU Huan, Eerqm, et al. Optimal and fast drilling technology for Shunnan Block[J]. Petroleum Drilling Techniques, 2015, 43(3): 50–54.
[17] 吕晓平,李国兴,王震宇,等. 扭力冲击器在鸭深1井志留系地层的试验应用[J]. 石油钻采工艺, 2012, 34(2): 99–101. doi: 10.3969/j.issn.1000-7393.2012.02.027 LYU Xiaoping, LI Guoxing, WANG Zhenyu, et al. Experiment of Torkbuster on Well YS1 in Silurian Formation[J]. Oil Drilling & Production Technology, 2012, 34(2): 99–101. doi: 10.3969/j.issn.1000-7393.2012.02.027
[18] 孙起昱,张雨生,李少海,等. 钻头扭转冲击器在元坝10井的试验[J]. 石油钻探技术, 2010, 38(6): 84–87. doi: 10.3969/j.issn.1001-0890.2010.06.018 SUN Qiyu, ZHANG Yusheng, LI Shaohai, et al. Application of bit torsional impact generator in Well Yuanba 10[J]. Petroleum Drilling Techniques, 2010, 38(6): 84–87. doi: 10.3969/j.issn.1001-0890.2010.06.018
[19] 狄勤丰,朱卫平,姚建林,等. 预弯曲动力学防斜打快钻具组合动力学模型[J]. 石油学报, 2007, 28(6): 118–121. doi: 10.3321/j.issn:0253-2697.2007.06.024 DI Qinfeng, ZHU Weiping, YAO Jianlin, et al. Dynamic model of bottom hole assembly used in pre-bending dynamic vertical and fast drilling technology[J]. Acta Petrolei Sinica, 2007, 28(6): 118–121. doi: 10.3321/j.issn:0253-2697.2007.06.024
[20] 龙大清,樊相生,王昆,等. 应用于中国页岩气水平井的高性能水基钻井液[J]. 钻井液与完井液, 2016, 33(1): 17–21. LONG Daqing, FAN Xiangsheng, WANG Kun, et al. High performance water base drilling fluid for shale gas drilling[J]. Drilling Fluid & Completion Fluid, 2016, 33(1): 17–21.
