新型靶向增黏驱油剂研制及现场试验

Development and Field Test of a New Type of Targeted Viscosity-Increasing Oil Displacement Agent

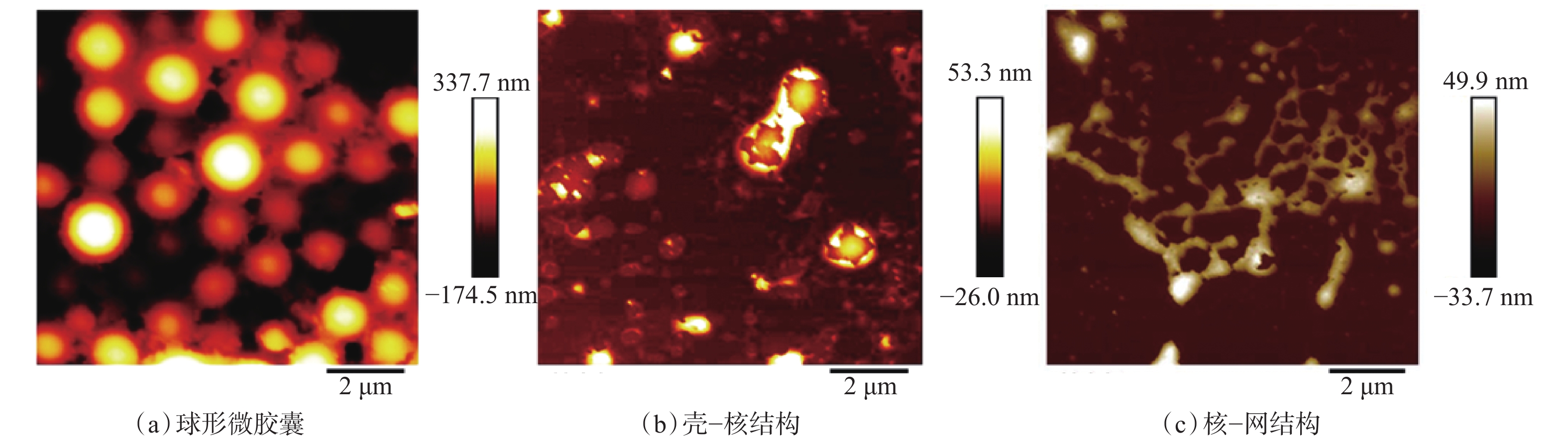

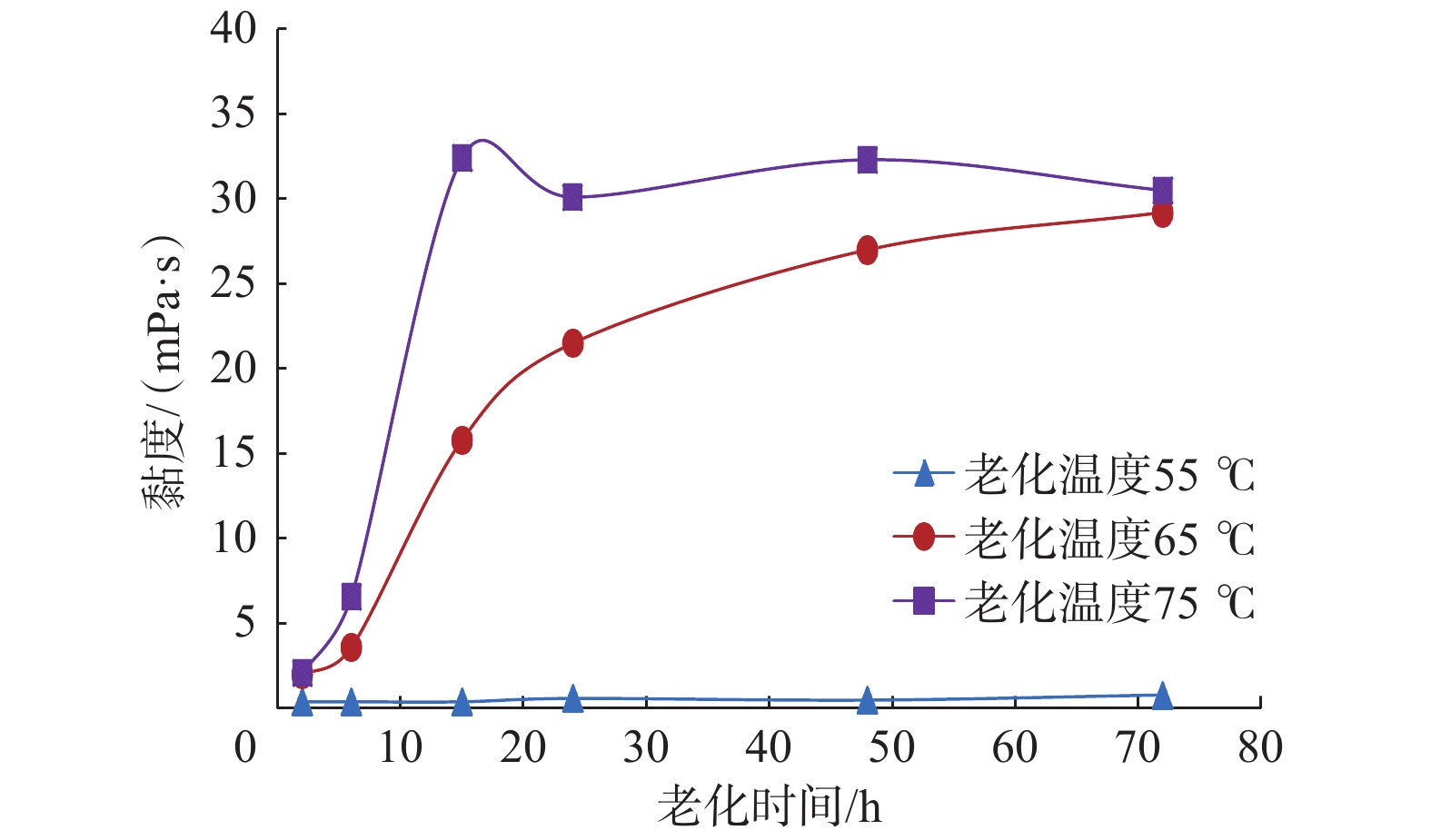

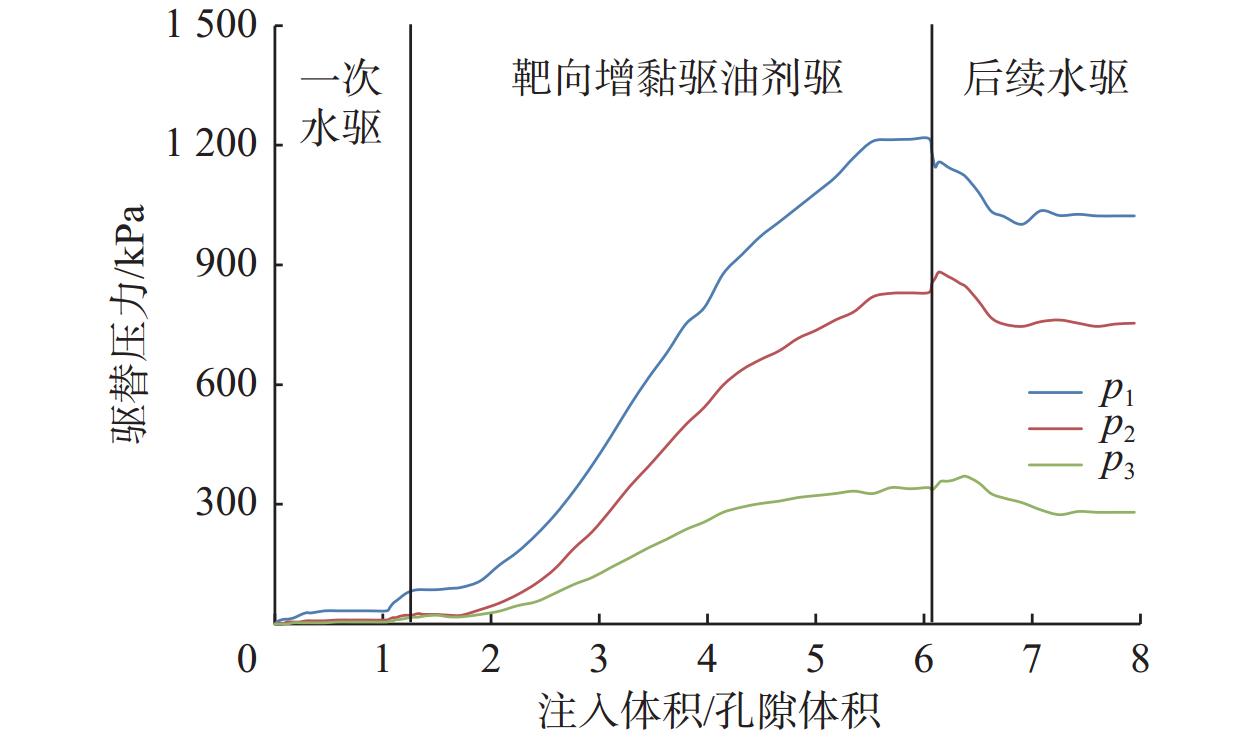

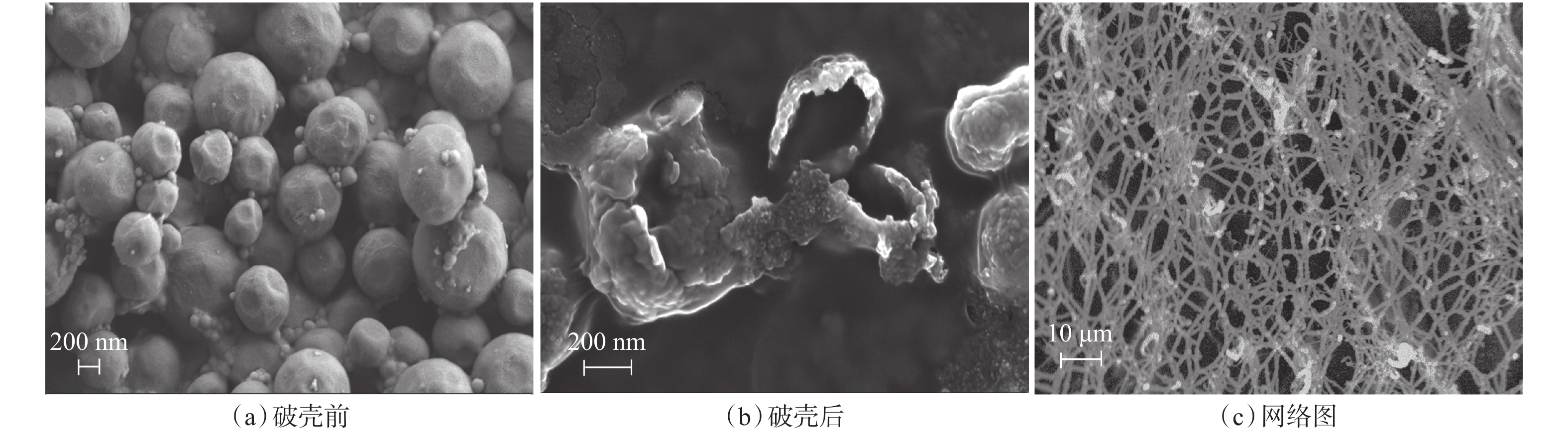

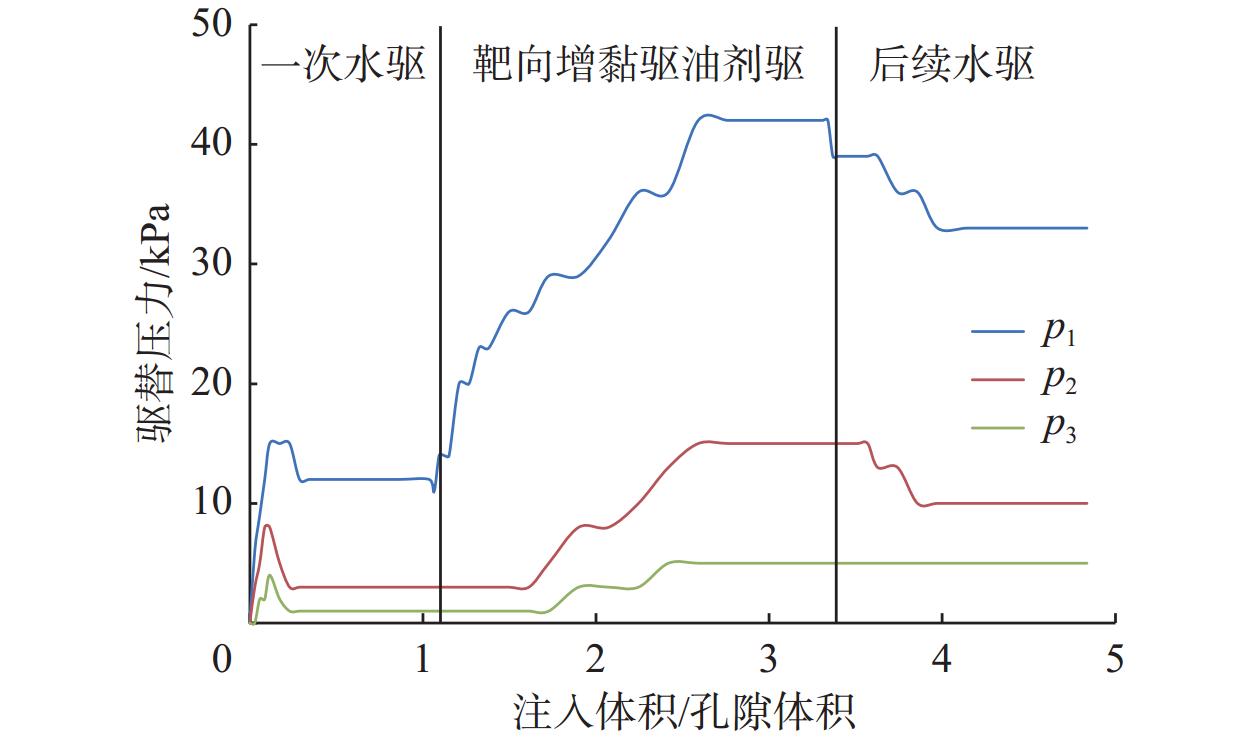

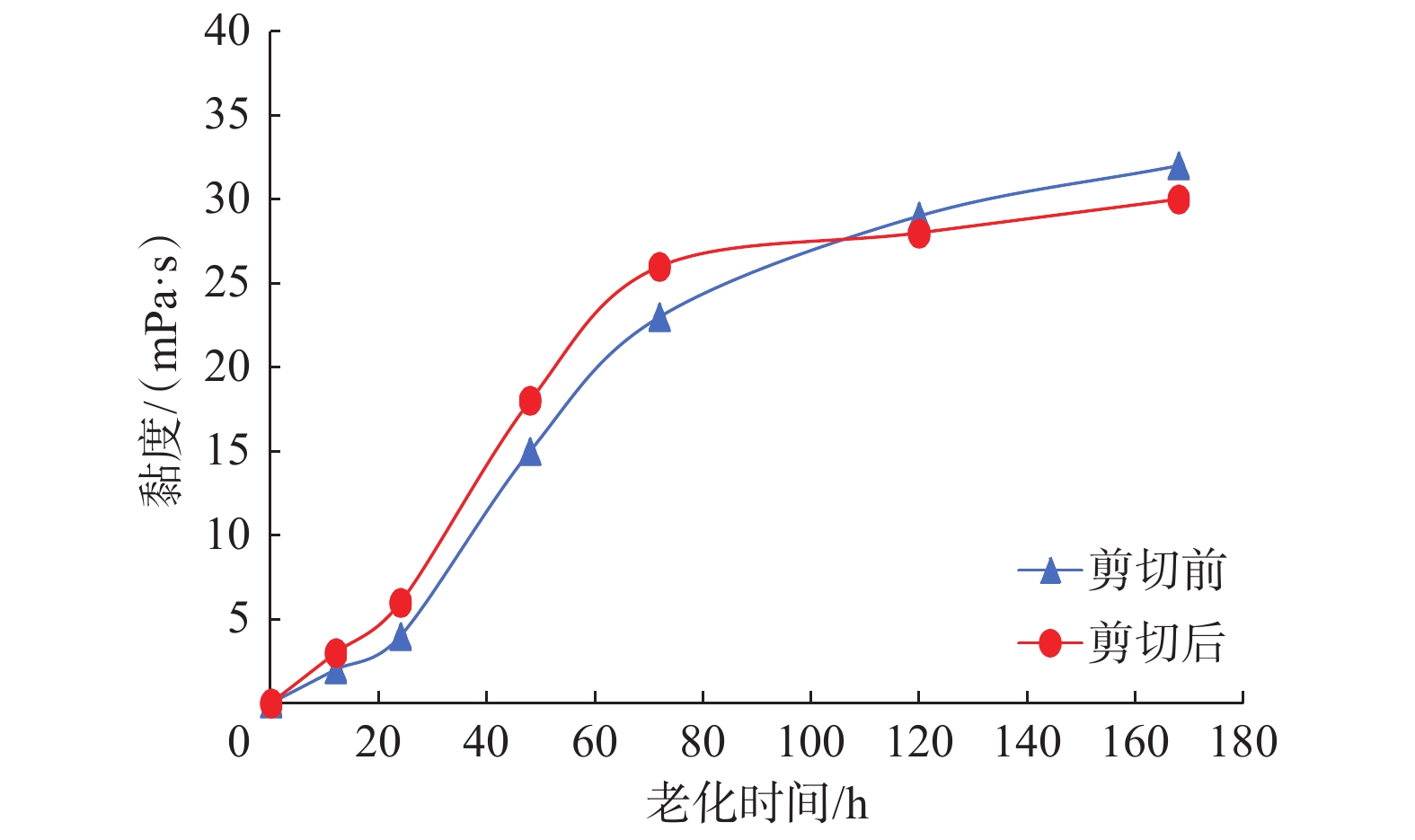

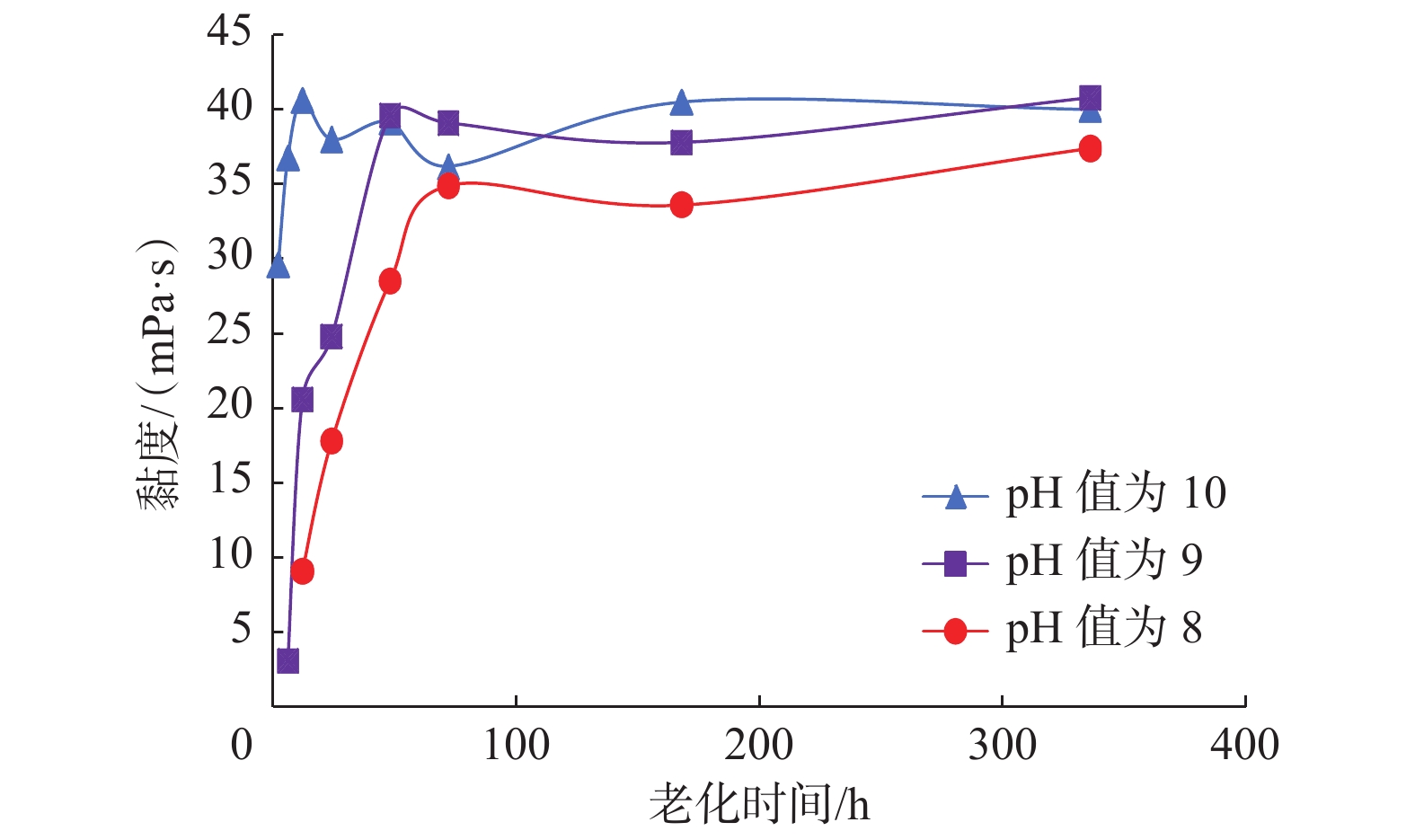

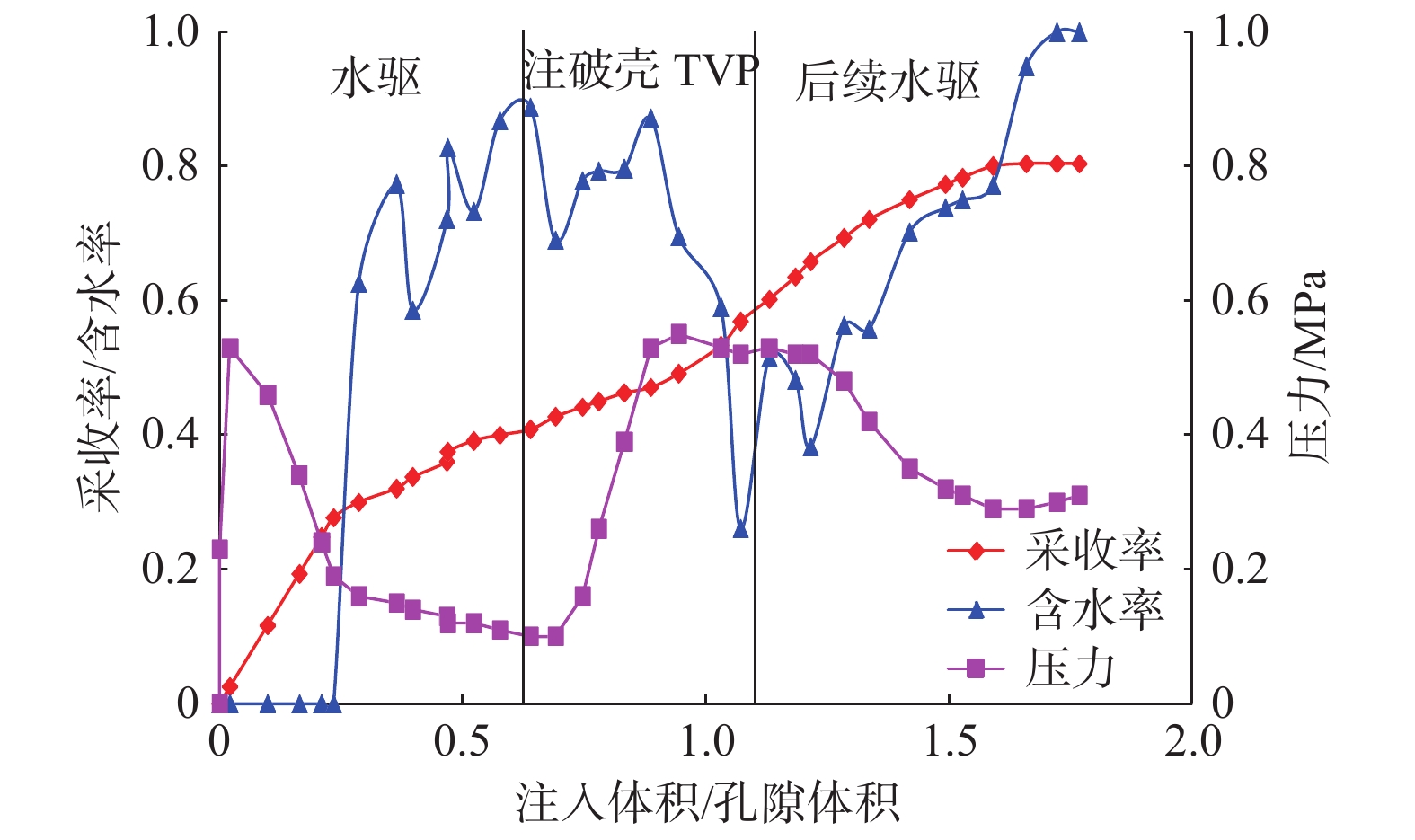

  • 摘要: 针对目前常规聚合物驱存在注入过程中机械降解黏度损失严重、油藏深部调驱能力弱的局限性,借鉴医学、纺织、涂料等领域涉及的微胶囊技术,利用反相乳液聚合与界面原位聚合技术,将常规聚合物包覆在微胶囊外壳内,研制出新型靶向增黏驱油剂(TVP)。利用微观手段表征了TVP的破壳缓释过程,并对TVP缓释影响因素、抗机械剪切性能、缓释前后的阻力系数及驱油效果进行了研究。研究发现,TVP缓释前呈球形,平均粒径600~800 nm;微胶囊外壳在高温和高pH值下均可释放聚合物,聚合物释放后溶于水中形成网状结构;在5 000 mg/L质量浓度下,TVP可使水相增黏至30 mPa·s左右;在微胶囊外壳的保护下,TVP具有抗强机械剪切能力,剪切后黏度损失率仅3.3%;TVP缓释前注入岩心的阻力系数仅3.0左右,注入性能较好,缓释后注入岩心的阻力系数增至36.88,内提高采收率可达26.7%,具有良好的油藏深部扩波及能力和驱油效果。对TVP进行了现场试验,试验中3口注水井压力平均上升6.4 MPa,2口油井动液面上升,含水率降低,日增油4.4 t,注聚效果初见成效。研究结果表明,TVP作为新型驱油剂,在油田三次采油中具有显著提高原油采收率的潜力。



    Abstract: In view of the limitations of conventional polymer flooding, such as serious viscosity loss due to mechanical degradation during injection process and weak ability of deep reservoir flooding, a novel targeted viscous-increasing oil displacement agent (TVP) was developed by using reverse-phase emulsion polymerization and interfacial in-situ polymerization technology to cover conventional polymer in microcapsule shell by referring to microcapsule technology involved in medicine, textile, coating and other fields. The process of TVP sustained release was characterized by microscopic means, and the influencing factors of TVP sustained release, mechanical shear resistance, resistance coefficient before and after sustained release and oil displacement effect were studied. The results show that TVP is spherical with an average particle size of 600~800 nm before sustained release. The microcapsule shell can release polymer at both high temperature and high pH value, and the polymer dissolves in water to form a spatial network structure after release. At a mass concentration of 5000 mg/L, TVP can increase the aqueous phase viscosity to about 30 mPa·s. Under the protection of the microcapsule shell, TVP has strong mechanical shear resistance, and the viscosity loss rate after shear is only 3.3%. Before TVP sustained release, the resistance coefficient of injected core is only about 3.0, and the injection performance is good. After TVP sustained release, the resistance coefficient of injected core is increased to 36.88, and the internal enhanced recovery rate can reach 26.7%, which has good deep reservoir spreading and displacement ability. In the field test, the average pressure of the three injection Wells increased by 6.4 MPa, the dynamic fluid level of the two Wells increased, the water cut decreased, and the daily oil increase was 4.4 t. As a new oil displacement agent, TVP has the potential to significantly improve oil recovery in tertiary oil recovery.



/
