“液量稳定”控压钻井技术研究与现场应用

张桂林, 张晓林

张桂林,张晓林. “液量稳定”控压钻井技术研究与现场应用[J]. 石油钻探技术,2024,52(6):16−22. DOI: 10.11911/syztjs.2024115
引用本文: 张桂林,张晓林. “液量稳定”控压钻井技术研究与现场应用[J]. 石油钻探技术,2024,52(6):16−22. DOI: 10.11911/syztjs.2024115
ZHANG Guilin, ZHANG Xiaolin. Research and on-site application of “stable fluid volume” pressure control drilling technology [J]. Petroleum Drilling Techniques, 2024, 52(6):16−22. DOI: 10.11911/syztjs.2024115
Citation: ZHANG Guilin, ZHANG Xiaolin. Research and on-site application of “stable fluid volume” pressure control drilling technology [J]. Petroleum Drilling Techniques, 2024, 52(6):16−22. DOI: 10.11911/syztjs.2024115

“液量稳定”控压钻井技术研究与现场应用

详细信息
    作者简介:

    张桂林(1959—),男,山东寿光人,1981年毕业于胜利石油学校钻井专业,2003年毕业于石油大学(华东)石油工程专业,2008年获中国石油大学(华东)油气井工程专业硕士学位,正高级工程师,主要从事钻井工程技术管理与研究工作。E-mail:gcczgl@sina.com

  • 中图分类号: TE249

Research and On-Site Application of “Stable Fluid Volume” Pressure Control Drilling Technology

  • 摘要:

    为了解决现有控压钻井工艺复杂和设备配套多的问题,并实现平衡压力钻井,从井内压力平衡的监控与认定方法入手,分析了井内压力平衡关系和控压钻井现状,研究了“液量稳定”控压原理、工艺与实现方法,形成了“恒液面”自动控制技术,实现了“液量稳定”控压钻进时的自动控制,钻井现场液面控制精度小于25 mm;钻井过程中可以根据循环罐液面变化调节节流阀,以保持“液量稳定”,实现井底压力与地层压力的实时平衡,进行平衡压力钻井。现场应用时,利用35 MPa旋转防喷器,以井口压力不大于7 MPa为原则,采用人工手动节流控制方法顺利钻穿了压力系数大于2.0、“零”压力窗口的盐水层和压力系数大于1.8、“零”压力窗口的灰岩裂缝性气层,解决了土库曼斯坦阿姆河右岸B区块的钻井难题。研究结果表明,与其他控压方式相比,“液量稳定”控压钻井技术的配套设备简化,控压工艺简单,具有较好的现场实用性。

    Abstract:

    In order to solve the problems of complex pressure control drilling technologies and excessive equipment matching and achieve balanced pressure drilling, the monitoring and identification methods of pressure balance in the well were first studied. The in-well pressure balance relationship and the state of pressure control drilling were analyzed. The pressure control principles, processes, and implementation method of “stable fluid volume” were studied, forming the "constant fluid level" automatic control technology to enable automatic control in “stable fluid volume” pressure control drilling. The fluid level control accuracy on the drilling site was maintained within 25 mm. The throttle valve could be adjusted to ensure “stable fluid volume” according to the changes in the circulating tank fluid level during drilling. This facilitated real-time balance between bottomhole pressure and formation pressure and ensured balanced pressure drilling. In on-site applications, a 35 MPa rotary blowout preventer was utilized, with a wellhead pressure not exceeding 7 MPa, and manual throttling control was adopted to successfully drill through the saltwater layer with a pressure coefficient of greater than 2.0 and zero pressure window, as well as the limestone fractured gas layer with a pressure coefficient of greater than 1.8 and zero pressure window, solving the drilling problem in Block B on the right bank of the Amu Darya River in Turkmenistan. Research has shown that compared with other pressure control methods, the supporting equipment of “stable fluid volume”pressure control drilling technology is simplified; the pressure control process is simple, and it has good on-site application value.

  • 图  1   关井期间井内压力关系示意

    Figure  1.   Pressure relationship in well during shut-in period

    图  2   控压钻进时钻井液循环流程示意

    Figure  2.   Drilling fluid circulation process during pressure control drilling

    图  3   起钻“先挤后起”灌入钻井液曲线

    Figure  3.   Drilling fluid injection curve of "squeezing first and then pulling out"

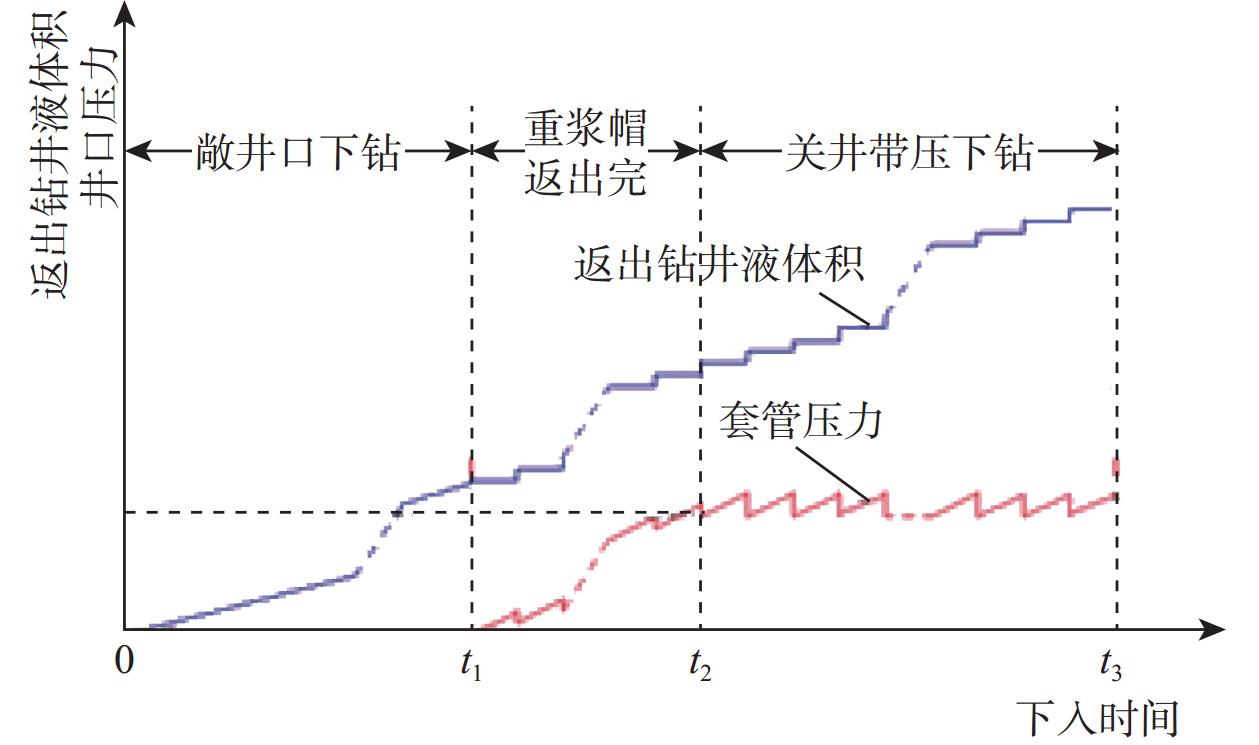

    图  4   下钻“先下后放”放出钻井液的曲线
