聚醚类稠油降黏剂的合成及降黏机理研究

Synthesis and Viscosity Reduction Mechanism of Polyether Viscosity Reducer for Heavy Oil

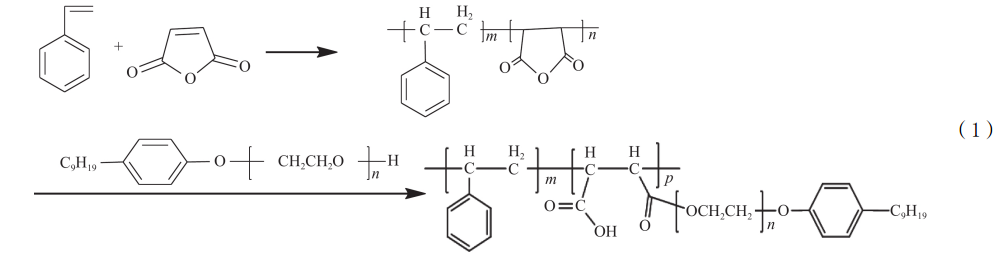

  • 摘要: 为解决传统降黏剂在辅助稠油举升过程中因搅拌速度低无法与采出液充分混合,导致现场应用效果不佳的问题,以苯乙烯、马来酸酐、壬基酚聚氧乙烯醚为主要原料,合成了一种聚醚类稠油降黏剂MSN,通过室内试验测试了其降黏性能,并分析了降黏机理。试验结果表明,在搅拌速度50 r/min、搅拌1 min条件下,MSN对稠油的降黏率达到95.6%,24 h后降黏率仍保持在87.2%,表现出低搅拌速度下降黏能力和降黏稳定性较强的特点;观察MSN加入稠油前后胶质和沥青质形貌的扫描电镜结果发现,胶质和沥青质的聚集结构发生了明显的分散。分析认为,MSN通过分散作用,减弱了稠油中胶质和沥青质分子间的相互作用,使其不能形成结构稳定的胶体,从而实现稠油降黏的目的。研制的降黏剂MSN为稠油油藏高效开发提供了技术支撑。

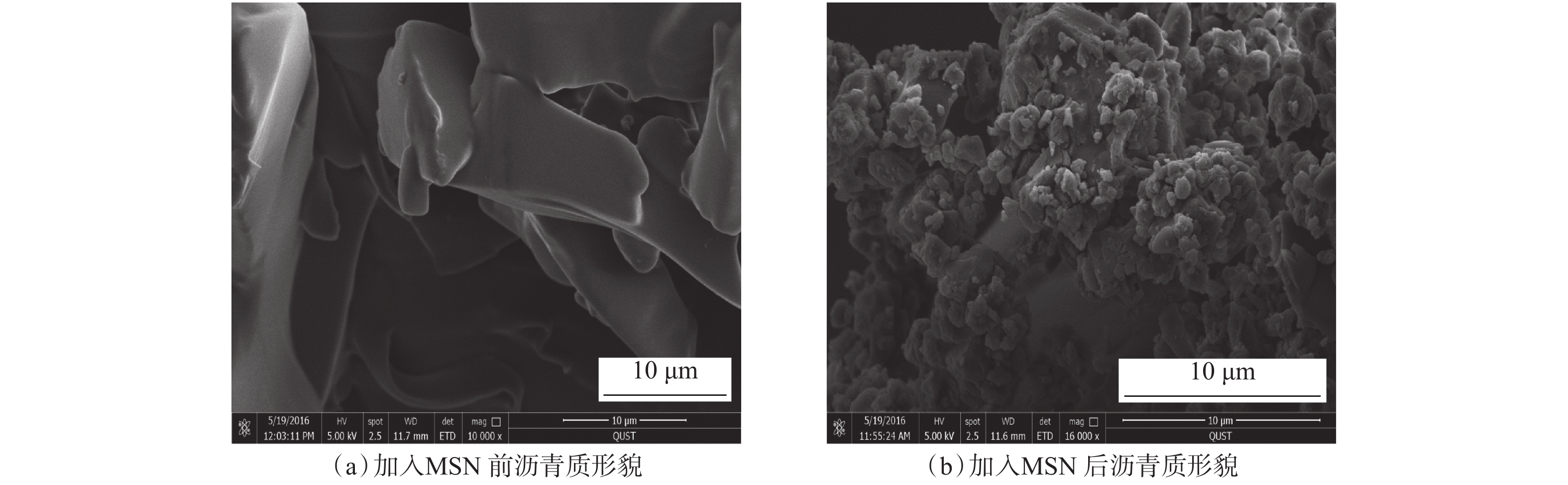

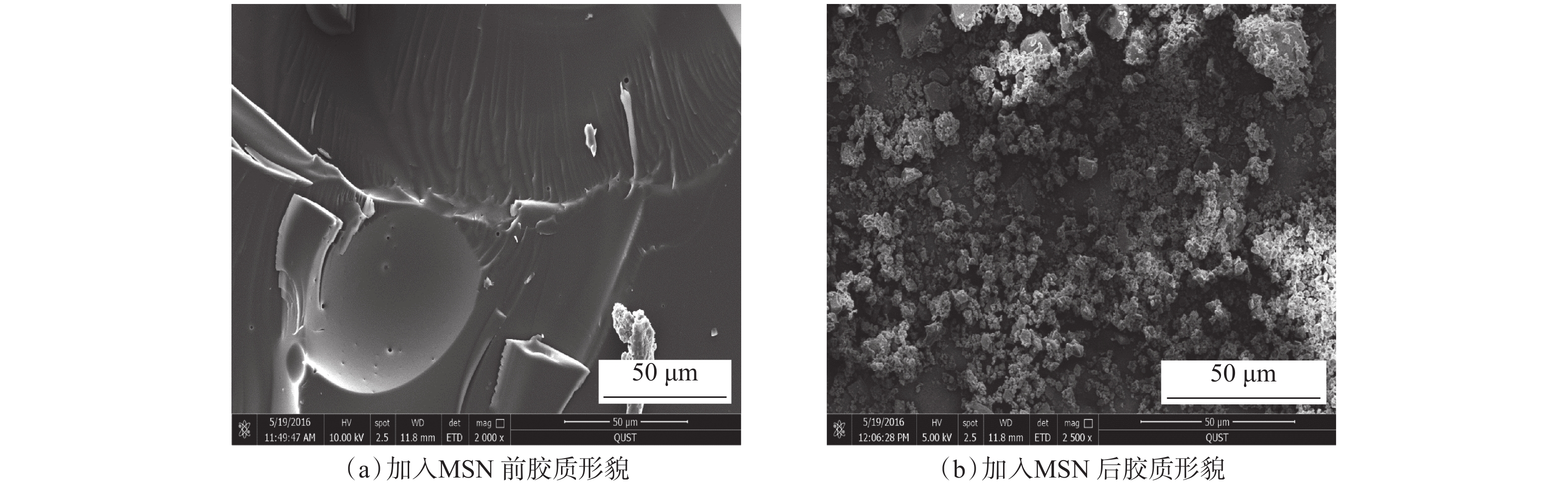

    Abstract: The traditional viscosity reducer has low stirring strength in the process of auxiliary heavy oil lifting, and it fails to be fully mixed with the produced liquid, leading to a poor on-site application effect. To solve this problem, a polyether viscosity reducer for heavy oil (MSN) was synthesized with styrene, maleic anhydride, and nonylphenol polyoxyethylene ether as main raw materials, and its viscosity reduction performance was investigated by laboratory tests. The viscosity reduction mechanism was discussed. The results show that MSN can achieve a viscosity reduction rate of 95.6% under the condition of stirring at 50 r/min for 1 min and can still maintain a viscosity reduction rate of 87.2% after 24 h. It also shows strong viscosity reduction ability and viscosity reduction stability under low stirring intensity. Scanning electron microscope (SEM) is used to observe the morphology of colloid and asphaltene before and after the addition of MSN and results show that the addition of MSN significantly disperses the original agglomerated structure of colloid and asphaltene. The analysis finds that MSN reduces the interaction between colloid and asphaltene molecules in heavy oil through dispersion and prevents them from forming a colloidal stable structure, so as to achieve the purpose of viscosity reduction in heavy oil. The successful development of viscosity reducer MSN provides technical support for the efficient development of heavy oil.



/
