深水固井循环阶段井筒温度场预测模型研究

刘金璐, 李军, 柳贡慧, 李辉, 杨宏伟

刘金璐,李军,柳贡慧,等. 深水固井循环阶段井筒温度场预测模型研究[J]. 石油钻探技术,2024,52(4):66-74. DOI: 10.11911/syztjs.2024065
引用本文: 刘金璐,李军,柳贡慧,等. 深水固井循环阶段井筒温度场预测模型研究[J]. 石油钻探技术,2024,52(4):66-74. DOI: 10.11911/syztjs.2024065
LIU Jinlu, LI Jun, LIU Gonghui, et al. Prediction model of wellbore temperature field during deepwater cementing circulation stage [J]. Petroleum Drilling Techniques, 2024, 52(4):66-74. DOI: 10.11911/syztjs.2024065
Citation: LIU Jinlu, LI Jun, LIU Gonghui, et al. Prediction model of wellbore temperature field during deepwater cementing circulation stage [J]. Petroleum Drilling Techniques, 2024, 52(4):66-74. DOI: 10.11911/syztjs.2024065

深水固井循环阶段井筒温度场预测模型研究

基金项目: 国家自然科学基金重大科研仪器研制项目“钻井复杂工况井下实时智能识别系统研制”(编号:52227804)、国家自然科学基金联合基金项目“特深井复杂温压场测量与井筒压力剖面控制基础研究”(编号:U22B2072)联合资助。
详细信息
    作者简介:

    刘金璐(1995—),男,山西襄汾人,2018年毕业于中国石油大学(北京)石油工程专业,在读博士研究生,主要从事控压固井、智能固井、控压钻井、井筒多相流研究。E-mail:790118395@qq.com

    通讯作者:

    李军,lijun446@vip.163.com

  • 中图分类号: TE21

Prediction Model of Wellbore Temperature Field during Deepwater Cementing Circulation Stage

  • 摘要:

    准确预测固井循环阶段井筒温度场有助于水泥浆性能参数的设计和井筒压力的计算,为此,基于井筒流动机理和传热学理论,考虑不同区域差异对传热过程的影响和不同流体热力学参数差异及其随井深变化的特点,结合流体界面位置描述方程,建立了适用于深水固井循环阶段的井筒温度场预测模型。利用2口井的实测数据对模型进行了验证,并进行了关键因素的影响规律分析。结果表明:注入水泥浆之前,钻井液应循环2~4周,以降低注入过程中循环时间改变对井底循环温度的影响;注入水泥浆过程中,排量越大,周围环境的升温或降温作用越不明显;计算过程中,若不考虑温度对比热容的影响,则预测的井底循环温度会偏高2~4 ℃;水泥浆密度对温度的影响规律与传热方向有关。研究结果对深水固井具有一定的指导作用。

    Abstract:

    Accurate prediction of the wellbore temperature field during the cementing circulation stage contributes to the design of cement slurry performance parameters and the calculation of wellbore pressure. Therefore, based on the wellbore flow mechanism and heat transfer theory, the influence of different regional differences on the heat transfer process was considered, and the discrepancy of different fluid thermodynamic parameters and their characteristics of variation with well depth were analyzed. Combined with the fluid interface position description equation, a set of wellbore temperature field prediction models suitable for the deepwater cementing circulation stage was established. The model was verified by the measured data from two wells, and the key influencing factors were analyzed. The results show that the drilling fluid should be circulated for 2~4 cycles prior to cement slurry injection, so as to reduce the impact of circulation time changes on the bottom hole circulating temperature (BHCT) during the injection. During the cement slurry injection process, larger flow rate causes less obvious warming or cooling of the surrounding environment. If the influence of temperature on specific heat capacity is not considered in the calculation process, it is predicted that the BHCT will be 2~4 °C higher. The influence of cement slurry density on temperature is related to the direction of heat transfer. The research results can be used to guide deepwater cementing.

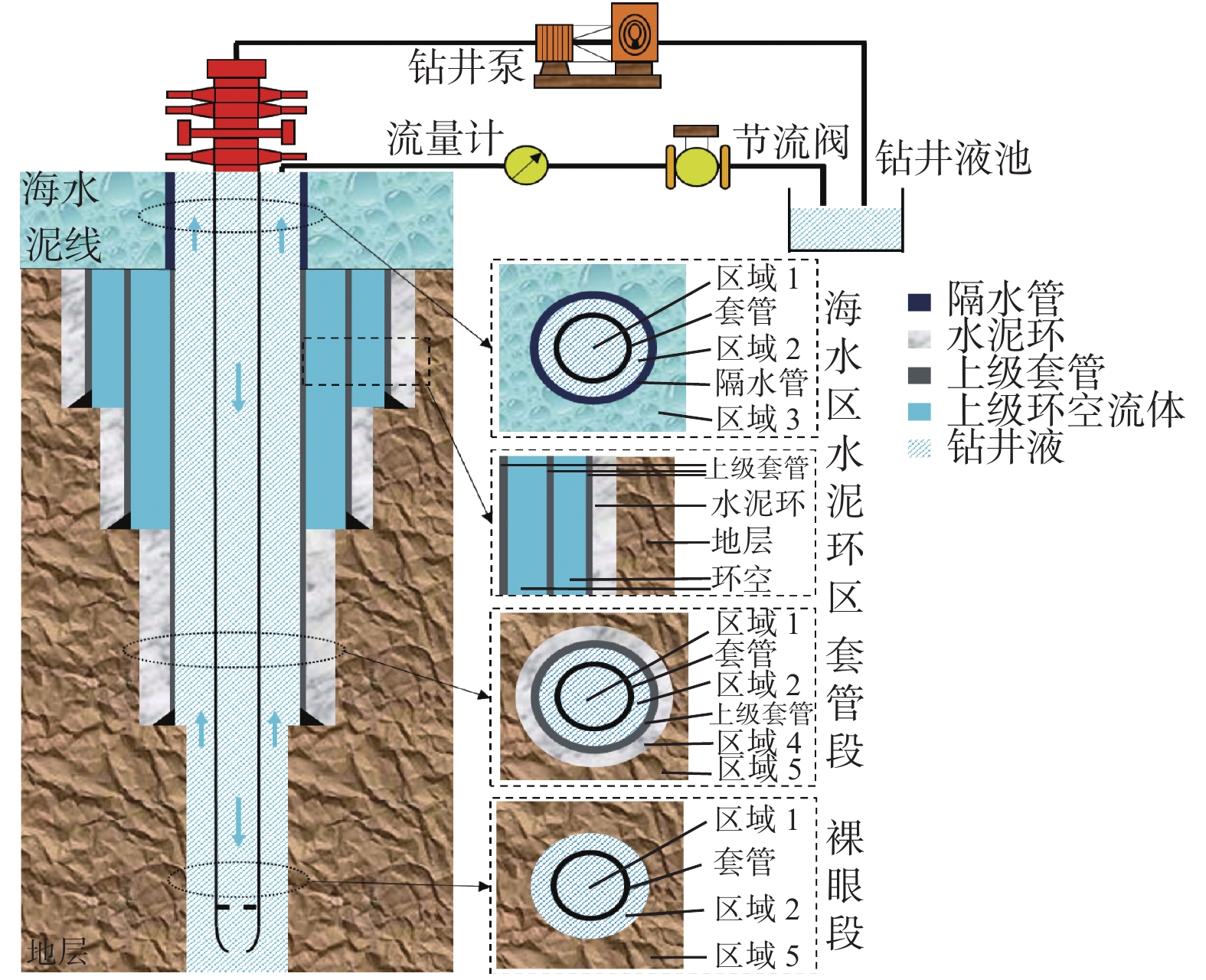

  • 图  1   钻井液循环阶段井筒流动物理模型

    Figure  1.   Physical model of wellbore flow during drilling fluid circulation stage

    图  2   水泥浆注入阶段井筒流动物理模型

    Figure  2.   Physical model of wellbore flow during cement slurry injection stage

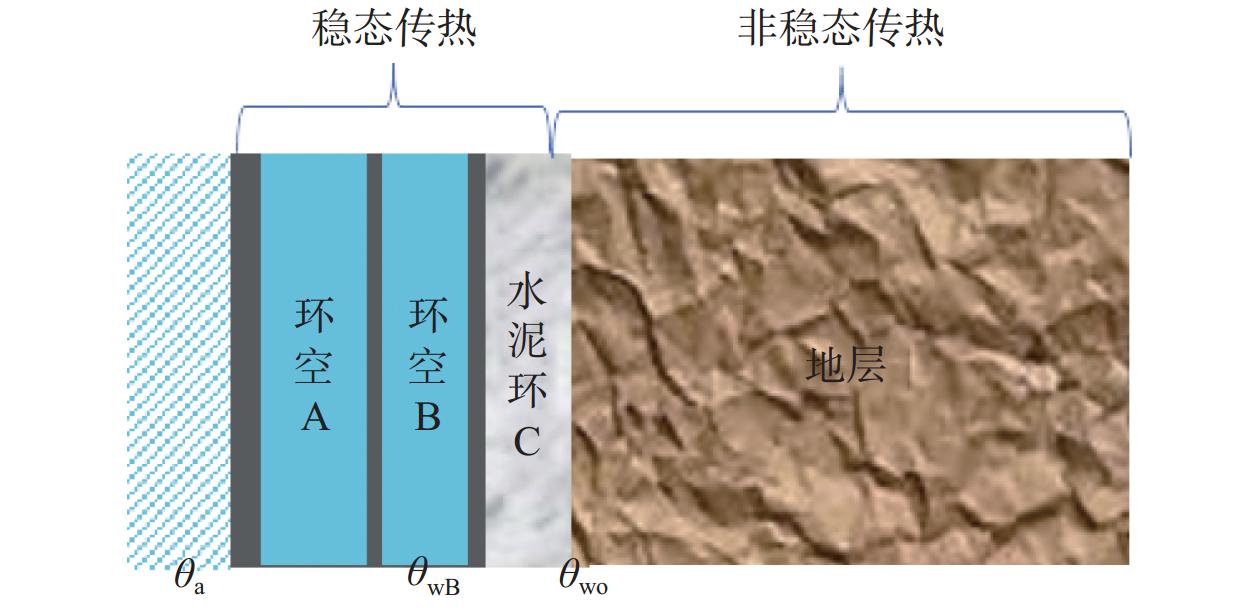

    图  3   水泥环区热传递示意

    Figure  3.   Heat transfer in cement sheath

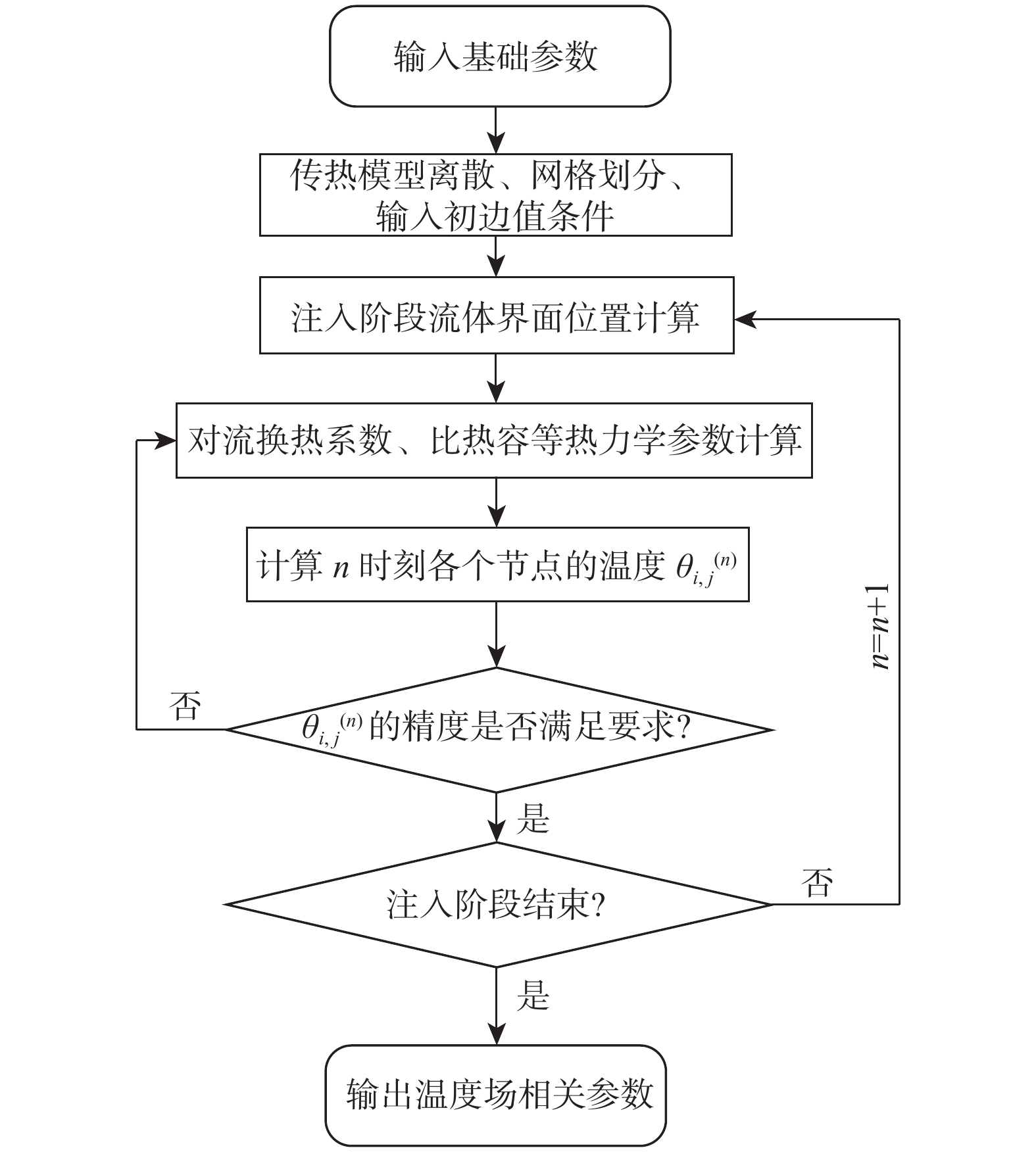

    图  4   计算流程

    Figure  4.   Calculation flow chart

    图  5   A井实测和预测的出口温度

    Figure  5.   Measured and predicted outlet temperatures of Well A

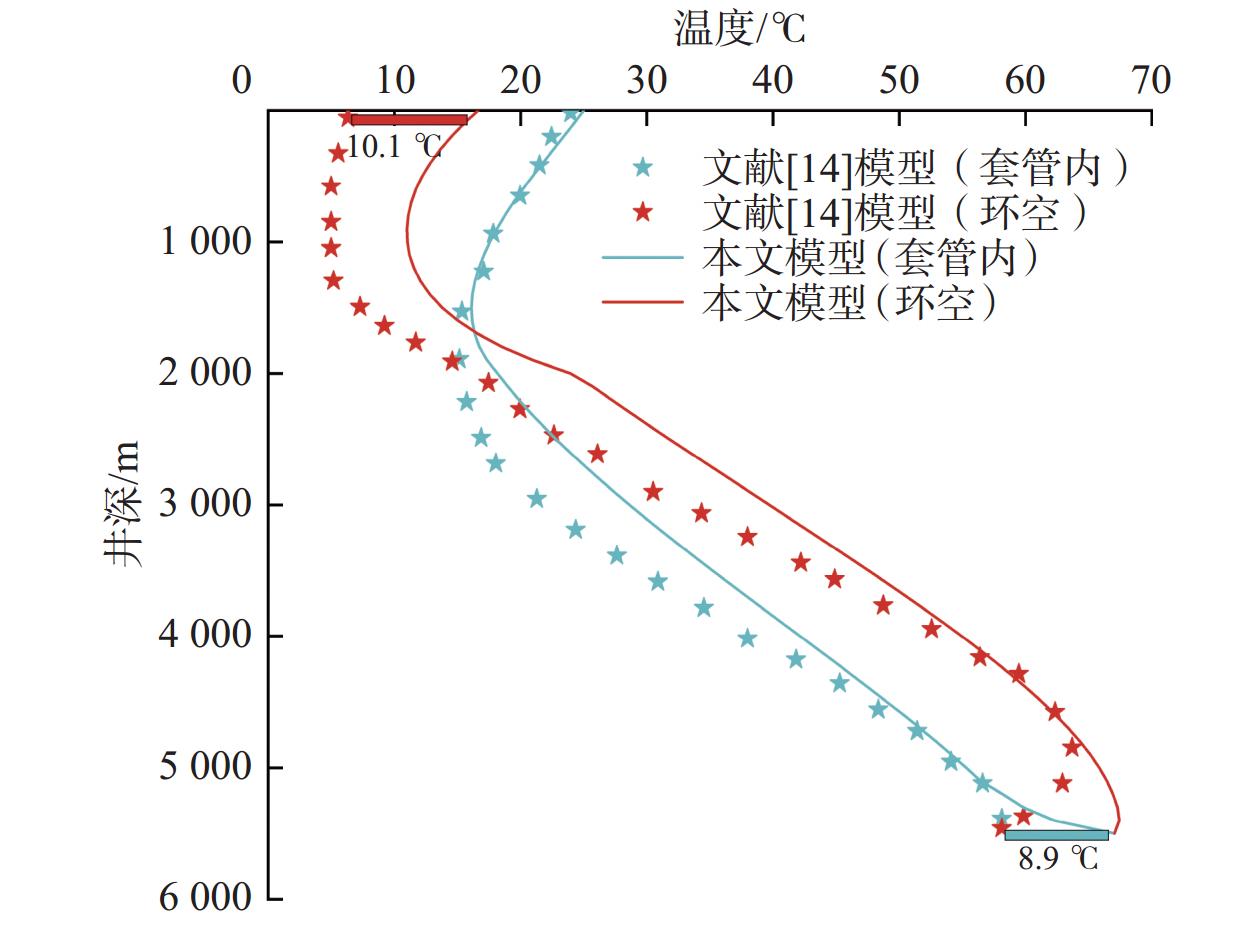

    图  6   B井不同模型预测的井筒温度分布

    Figure  6.   Wellbore temperature distribution predicted by different models for Well B

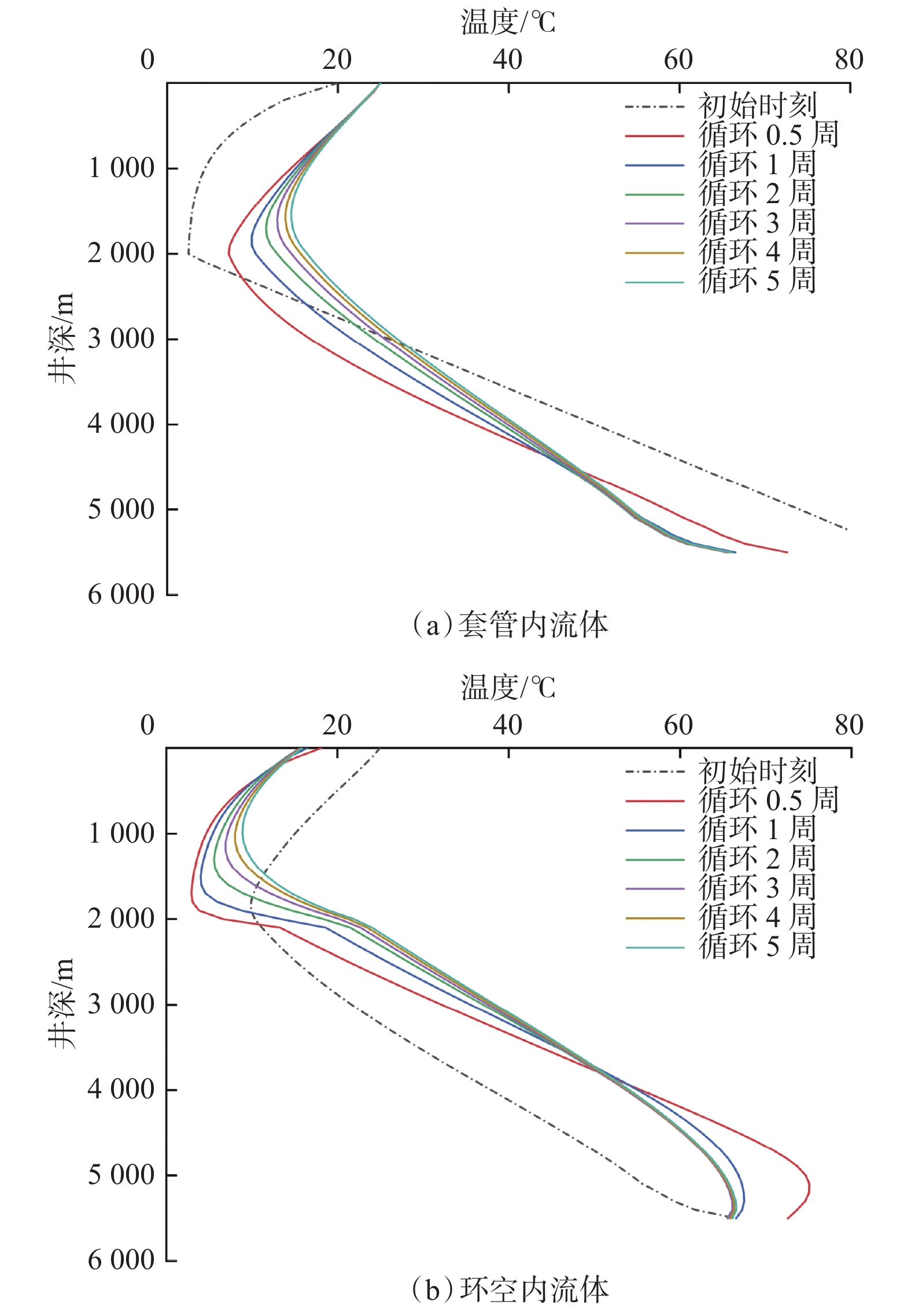

    图  7   不同钻井液循环时刻的井筒温度剖面

    Figure  7.   Wellbore temperature profile at different drilling fluid circulation times

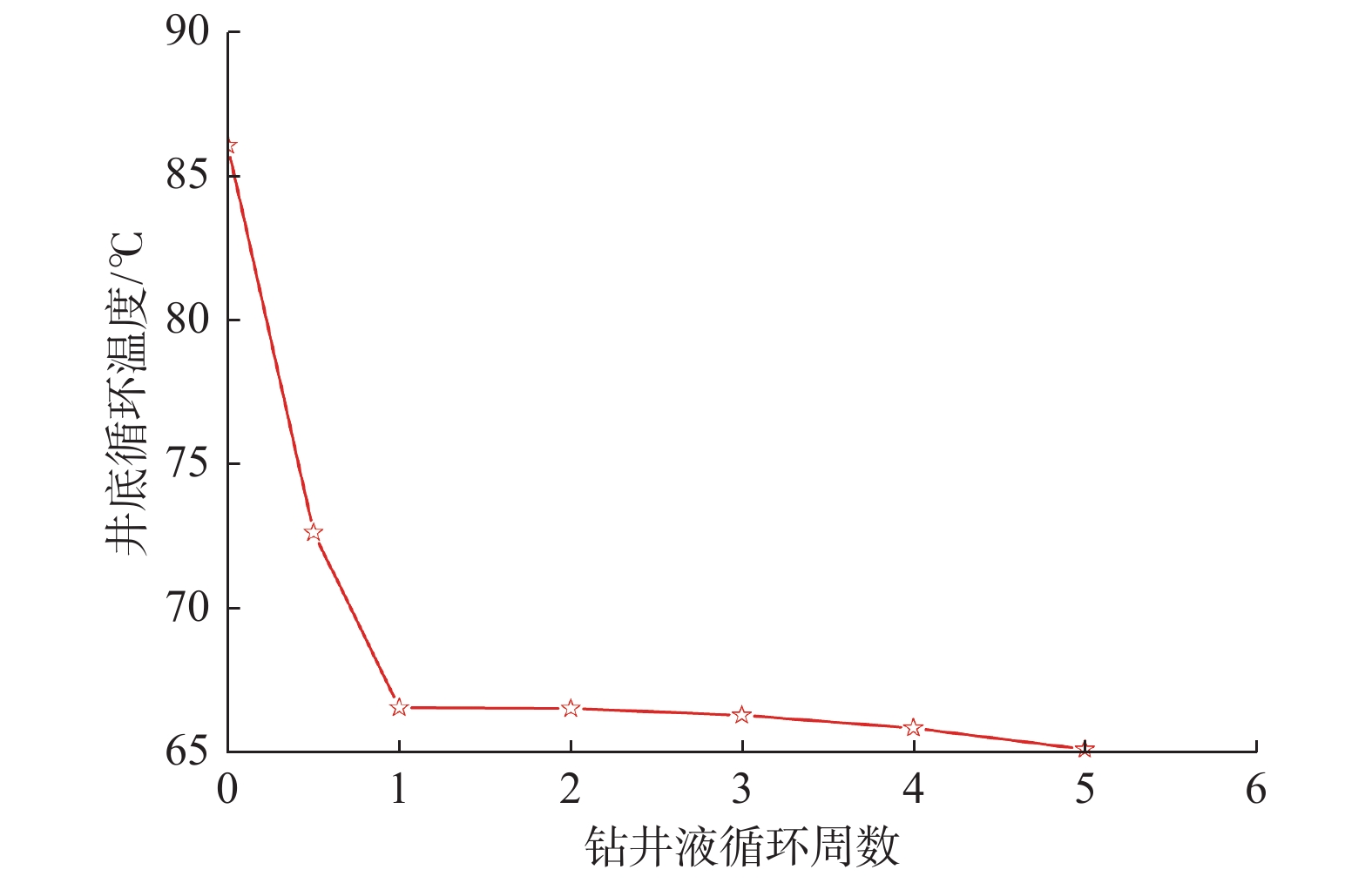

    图  8   井底循环温度随钻井液循环周数的变化

    Figure  8.   Variation of BHCT with number of drilling fluid circulation cycles

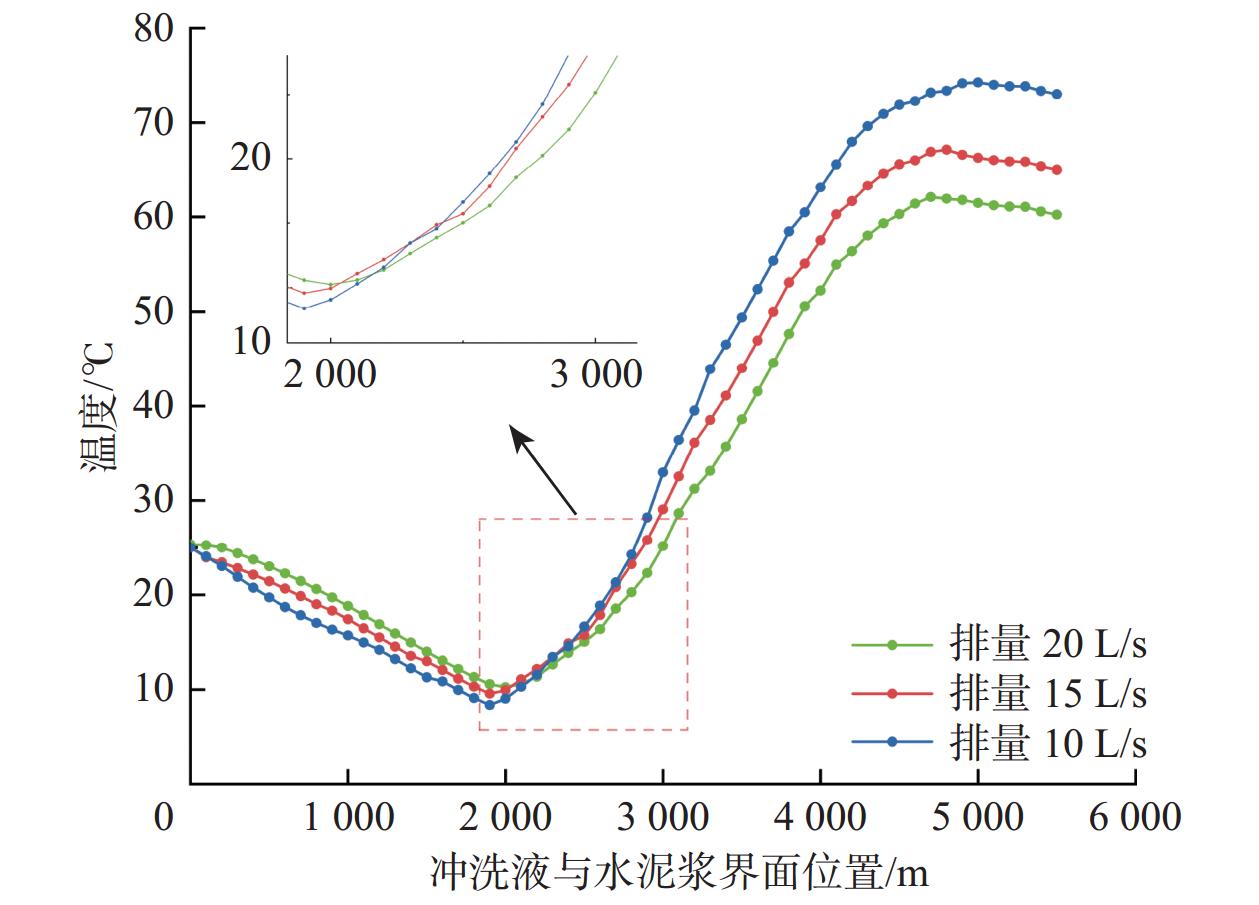

    图  9   不同注入排量下水泥浆温度随界面位置的变化

    Figure  9.   Variation of cement slurry temperature with interface position under different injection rates

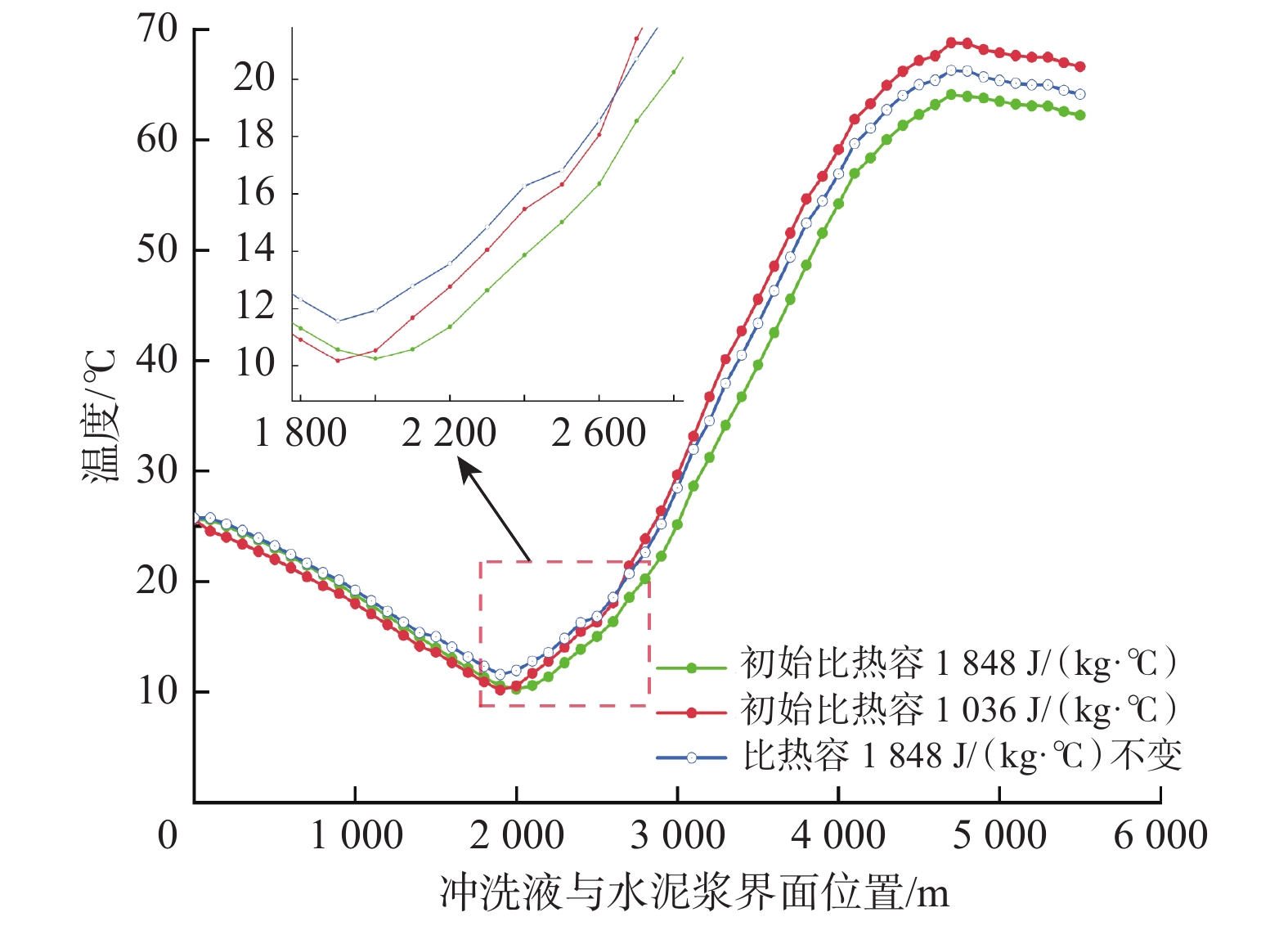

    图  10   不同比热容下水泥浆温度随界面位置的变化

    Figure  10.   Variation of cement slurry temperature with interface position under different specific heat capacity conditions

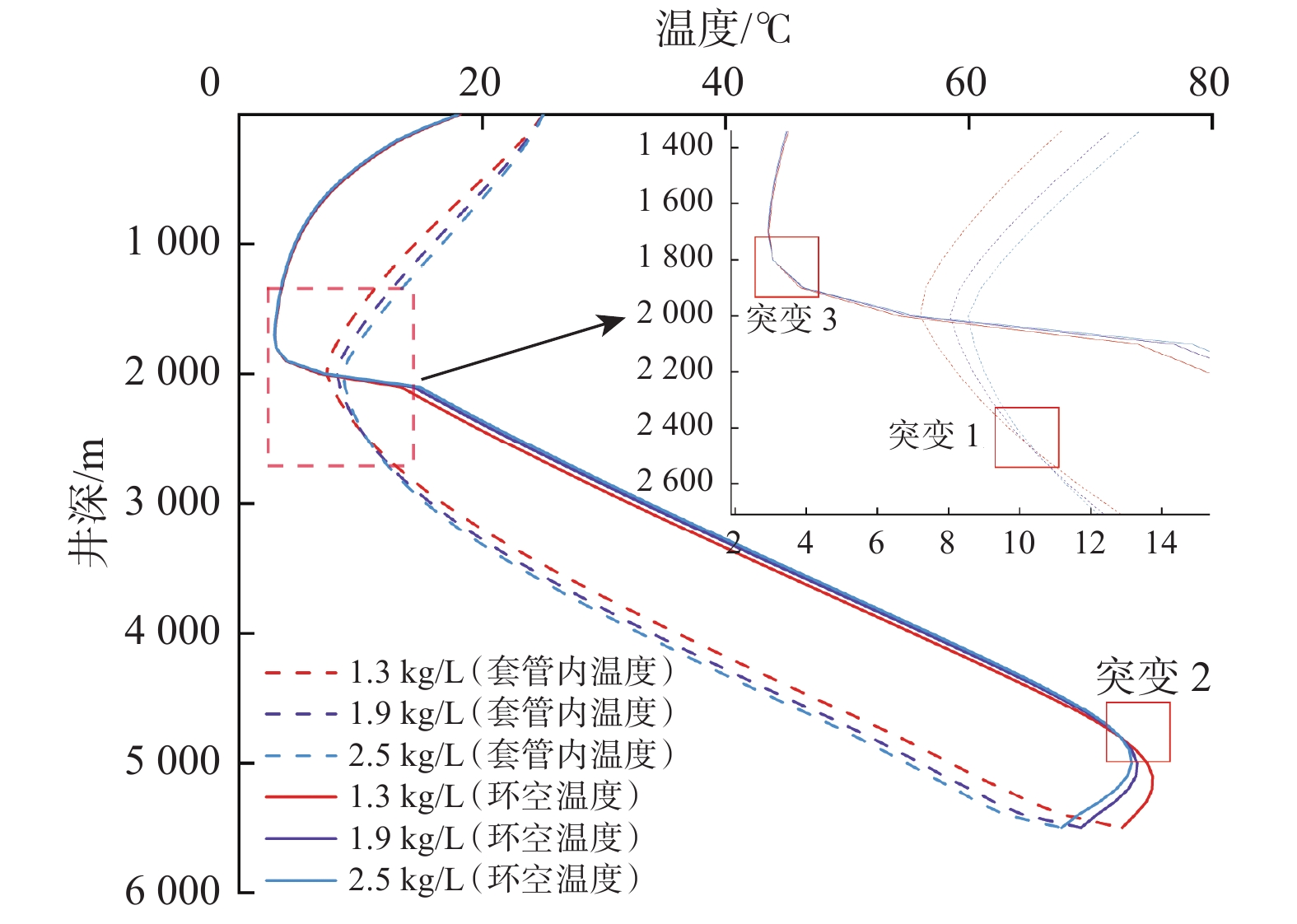

    图  11   注入不同密度水泥浆时井筒温度剖面

    Figure  11.   Wellbore temperature profile when injecting cement slurry with different density

    表  1   不同类型流体比热容与温度关系式的回归系数

    Table  1   Regression coefficient of specific heat capacity variation with temperature for different types of fluid

    流体类型 回归系数
    A B C
    前置液 0.0227 19.985 0 2675.5
    钻井液 0.0224 8.4234 2275.9
    水泥浆 0.3242 −18.199 0 1824.6
    下载: 导出CSV

    表  2   固井工作液基础参数

    Table  2   Basic parameters of cementing fluid

    流体类型体积/m3密度/(kg·m−3排量(L·s−1
    隔离液22.71 80028.3
    冲洗液7.31 02013.6
    水泥浆65.61 90015.1
    后置液11.11 04025.3
    顶替液30.51 00010.1
    下载: 导出CSV
