鄂尔多斯盆地页岩油水平井CO2区域增能体积压裂技术

张矿生, 齐银, 薛小佳, 陶亮, 陈文斌, 武安安

张矿生,齐银,薛小佳,等. 鄂尔多斯盆地页岩油水平井CO2区域增能体积压裂技术[J]. 石油钻探技术,2023, 51(5):15-22. DOI: 10.11911/syztjs.2023091
引用本文: 张矿生,齐银,薛小佳,等. 鄂尔多斯盆地页岩油水平井CO2区域增能体积压裂技术[J]. 石油钻探技术,2023, 51(5):15-22. DOI: 10.11911/syztjs.2023091
ZHANG Kuangsheng, QI Yin, XUE Xiaojia, et al. CO2 regional enhanced volumetric fracturing technology for shale oil horizontal wells in Ordos Basin [J]. Petroleum Drilling Techniques,2023, 51(5):15-22. DOI: 10.11911/syztjs.2023091
Citation: ZHANG Kuangsheng, QI Yin, XUE Xiaojia, et al. CO2 regional enhanced volumetric fracturing technology for shale oil horizontal wells in Ordos Basin [J]. Petroleum Drilling Techniques,2023, 51(5):15-22. DOI: 10.11911/syztjs.2023091

鄂尔多斯盆地页岩油水平井CO2区域增能体积压裂技术

基金项目: 国家科技重大专项“鄂尔多斯盆地致密油开发示范工程”(编号:2017ZX05069)、中国石油天然气股份有限公司重大专项“鄂尔多斯盆地页岩油勘探开发理论与关键技术研究”(编号:2021DJ1806)联合资助
详细信息
    作者简介:

    张矿生(1976—),男,陕西西安人,1998年毕业于西南石油学院石油工程专业,2004年获西南石油学院油气田开发工程专业硕士学位,高级工程师,主要从事低渗透、非常规油气储层改造方面的研究与管理工作。E-mail:zks_cq@petrochina.com。

    通讯作者:

    陶亮,taoliangyouxiang@163.com

  • 中图分类号: TE357.1

CO2 Regional Enhanced Volumetric Fracturing Technology for Shale Oil Horizontal Wells in Ordos Basin

  • 摘要:

    针对鄂尔多斯盆地页岩油储层压力低、缝网复杂程度低和黄土塬水资源缺乏等问题,以该盆地庆城油田页岩油为研究对象,进行了滑溜水和CO2压裂物理模拟试验,利用高能CT监测了CO2压裂裂缝扩展规律,分析了CO2压裂形成复杂裂缝的可行性;利用油藏数值模拟方法,优化了CO2注入关键参数,形成了适合庆城油田页岩油的CO2区域增能体积压裂技术。研究表明:前置CO2压裂可提高长7段页岩油储层裂缝复杂程度,裂缝沿层理弱面扩展并纵向穿层形成缝网;增能理念应由单井段间交替增能向平台整体注入实现井间、段间协同一体增能转变,单井采用全井段注入增能模式,可实现缝控区域全覆盖。庆城油田某平台进行了页岩油CO2区域增能体积压裂试验,与采用常规体积压裂技术的邻井相比,3口试验水平井平均压力保持程度提高1.5倍,单井平均初期产油量提高28.6%。研究和现场试验结果表明,CO2区域增能体积压裂能提高裂缝复杂程度,增加区域地层能量,提高单井产能,可为鄂尔多斯盆地页岩油开发提供技术支持。

    Abstract:

    In response to the problems of low pressure, high fluid flow resistance, low energy enhancement efficiency of slick water fracturing, and low complexity of fracture networks in shale oil reservoirs in Ordos Basin, a physical simulation experiment of slick water and CO2 fracturing was conducted in the Qingcheng shale oil block of Ordos Basin. The expansion law of CO2 fracturing fractures was monitored using high-energy computerized tomography (CT) scanning, and the feasibility of CO2 fracturing to form complex fractures was analyzed. By using reservoir numerical simulation methods, the key parameters of CO2 injection were optimized, forming a CO2 regional energy enhancement and volumetric fracturing technology suitable for the Qingcheng shale oil block. Research showed that pre-CO2 fracturing could increase the complexity of fractures in Chang 7 shale oil, with fractures spreading along weak bedding planes and forming a fracture network through the layers vertically. The concept of energy enhancement should be achieved by injecting energy into the platform as a whole instead of alternating energy enhancement between single well sections and injecting energy into the platform as a whole, achieving a transformation of integrated energy enhancement between wells and sections. The single well that adopted the full well section injection energy enhancement mode could achieve full coverage of the fracture control area. Based on a platform in the Qingcheng shale oil block, a shale oil CO2 regional energy enhancement and volumetric fracturing test was conducted. Compared with conventional volumetric fracturing adjacent wells, the average pressure retention of the three test horizontal wells increased by 1.5 times, and the average initial oil production of a single well increased by 28.6%. Research and on-site experiments showed that CO2 regional energy enhancement and volumetric fracturing could increase the complexity of fractures, enhance regional formation energy, and improve single well productivity, providing technical support for shale oil development in Ordos Basin.

  • 图  1   庆城油田延长组长7段岩性综合柱状图

    Figure  1.   Comprehensive histogram of Chang 7 of Yanchang Formation in Ordos Basin

    图  2   长7段露头岩心注入不同介质后的压裂裂缝扩展情况和CT扫描结果

    Figure  2.   Fracture expansion and CT scanning results of Chang 7 outcrop core injected different media

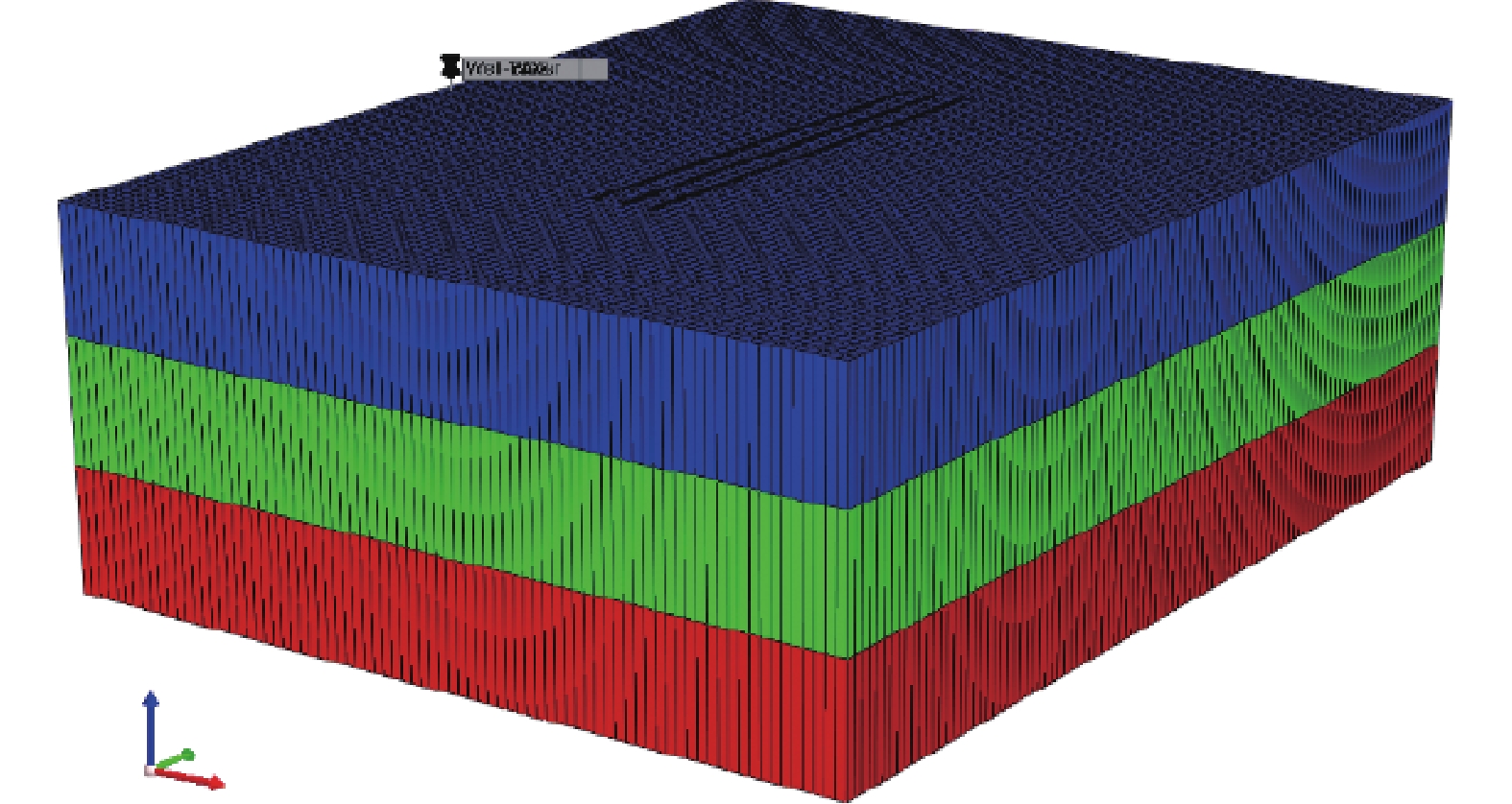

    图  3   页岩油单段压裂油藏3D数值模型

    Figure  3.   3D numerical model of single-stage shale oil fracturing reservoir

    图  4   单井注入CO2后地层压力分布

    Figure  4.   Formation pressure distribution field diagram of single well CO2 injection

    图  5   平台多井区域注入CO2后地层压力分布

    Figure  5.   Formation pressure distribution of CO2 injection in multi-well area of platform

    图  6   段间交替注入模式下的地层压力分布

    Figure  6.   Formation pressure distribution of alternating injection mode between sections

    图  7   距离水力裂缝面不同位置的地层压力

    Figure  7.   Formation pressure at different positions away from hydraulic fracture surface

    图  8   不同CO2注入量下的地层压力

    Figure  8.   Formation pressure under different CO2 injection

    图  9   能量波及面积与CO2注入量的相关性

    Figure  9.   Correlation curve between energy sweep area and CO2 injection

    图  10   不同CO2注入排量下的地层压力

    Figure  10.   Formation pressure under different CO2 injection displacements

    图  11   不同注入排量下地层压力随注入时间的变化

    Figure  11.   Variation of formation pressure with time under different injection displacements

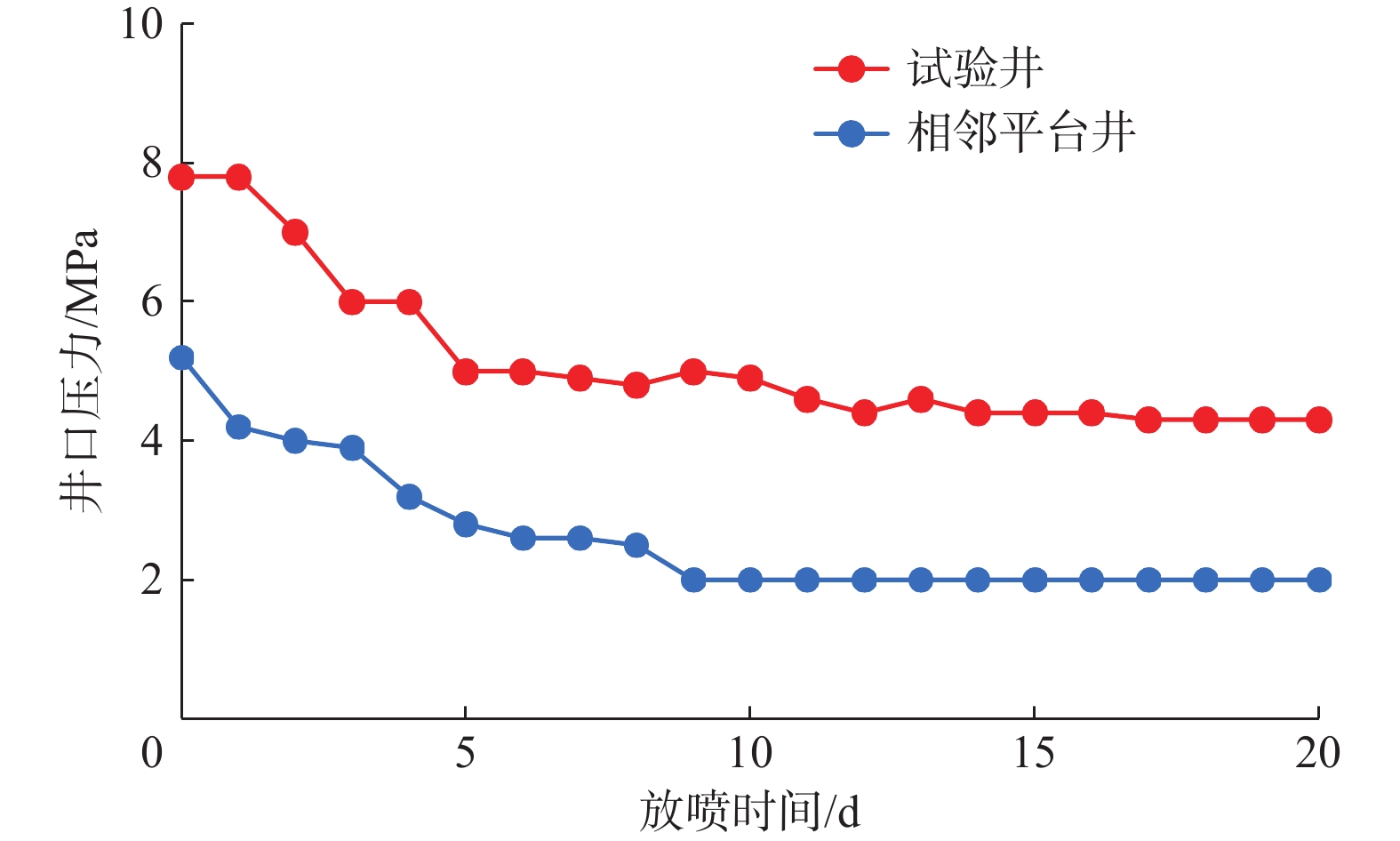

    图  12   试验井与相邻平台井放喷井段井口压力对比

    Figure  12.   Comparison of wellhead pressure in blowout section of test well and adjacent platform well

    图  13   试验井与相邻平台井百米油层的产油量对比

    Figure  13.   Oil production comparison of 100-meter oil layer between test well and adjacent platform well

    表  1   庆城油田页岩油与国内外典型页岩油特征参数的对比

    Table  1   Characteristic parameter comparison of shale oil in Ordos Basin and other typical shale oil in China and abroad

    特征参数庆城油田国内国外
    准噶尔盆地芦草沟组三塘湖盆地条湖组松辽盆地白垩系北美二叠盆地
    沉积环境湖相湖相湖相湖相浅海相
    埋深/m1 600~2 2002 700~3 9002 000~2 8001 700~2 2002 134~2 895
    油层厚度/m5~1510~135~2010~30400~600
    孔隙度,%6.0~11.08.0~14.68.0~18.05.0~18.08.0~12.0
    渗透率/mD0.11~0.140.010~0.0120.1~0.50.02~0.500.01~1.00
    含油饱和度,%67.7~72.478.0~80.055.0~76.548.0~55.075.0~88.0
    油气比/(m3·t−175~12218~2250~140
    原油黏度/(mPa·s)1.2~2.411.7~21.558.0~83.04.0~8.00.15~0.53
    压力系数0.77~0.841.20~1.600.901.10~1.321.05~1.50
    水平应力差/MPa4~65~91~53~61~3
    脆性指数,%35~4550~5131~5445~60
    下载: 导出CSV
