Research on the Optimal Proportions of the New and Old Fractures in Refracturing of Horizontal Wells in Ultra-Low Permeability Reservoirs
-
摘要:
超低渗透油藏初次压裂投产后，由于地层能量亏空严重、裂缝失效等原因，油井产量递减迅速，无法满足生产需求，需要进行重复压裂，重复压裂设计的关键是确定合理的布缝位置和重复压裂的新缝数量。基于长庆油田元284井区储层地质特征，结合初次压裂生产情况，建立了水平井重复压裂裂缝延伸数值模拟模型；对比了不同新老缝配比条件下重复压裂储层改造体积与最终开采效果，明确了重复压裂前注水补能提高重复压裂改造效果的机理；通过分析经济收益，获得了合理的新老缝配比关系。模拟结果表明：重复压裂新缝为2条、缝间距为20 m时，更有利于形成复杂缝网，提高采收率；随着2条老缝间重复压裂新缝数量增加，更有利于裂缝间相互沟通形成复杂缝网，提高储层改造效果；老缝间重复压裂的新缝数量较多时，由于裂缝之间的相互干扰，会导致开发生产前期产量增幅递减，但随着不断生产，由于储层改造更为充分，对后期稳产较为有利。研究结果为超低渗透油藏水平井重复压裂方案设计提供了理论依据。
Abstract:After the initial hydraulic fracturing of the ultra-low permeability oil reservoir, there is a rapid decline in oil production due to the depletion of formation energy and fracture failure. This decline fails to meet the production demands, and the refracturing is needed. In the design of refracturing, the key lies in determining the optimal positioning and number of new fractures. In this study, a numerical simulation model for fracture extension during refracturing of horizontal wells was established, based on the geological characteristics of the Changqing yuan 284 well block oil reservoir and the production data from the initial hydraulic fracturing. A comparative analysis of the reservoir stimulation volume and ultimate developing effect was conducted with varying proportions of new and old fractures. The study found that energy replenishment by water injection before refracturing as a mechanism could effectively improve the reservoir stimulation effect of refracturing. Furthermore, an economic benefit analysis was performed to determine an reasonable proportion of new and old fractures. Simulation results indicated that a favorable condition for the formation of a complex fracture network and increased oil recovery was observed when there were two new fractures by refracturing, with a spacing of 20 m between fractures. As the number of new fractures between two old fractures increased, the formation of a complex fracture network and reservoir stimulation effect were further enhanced. However, a large number of new fractures between old fractures led to mutual interference, resulting in a decrease in the range of production increase during the early stage of development. Nonetheless, as development and production continued, there will be a more thorough reservoir stimulation effect, which is beneficial for stable production in the later period. These research findings offer a theoretical foundation for designing refrcuturing schemes for horizontal wells in ultra-low permeability oil reservoirs.
-
-
![]()

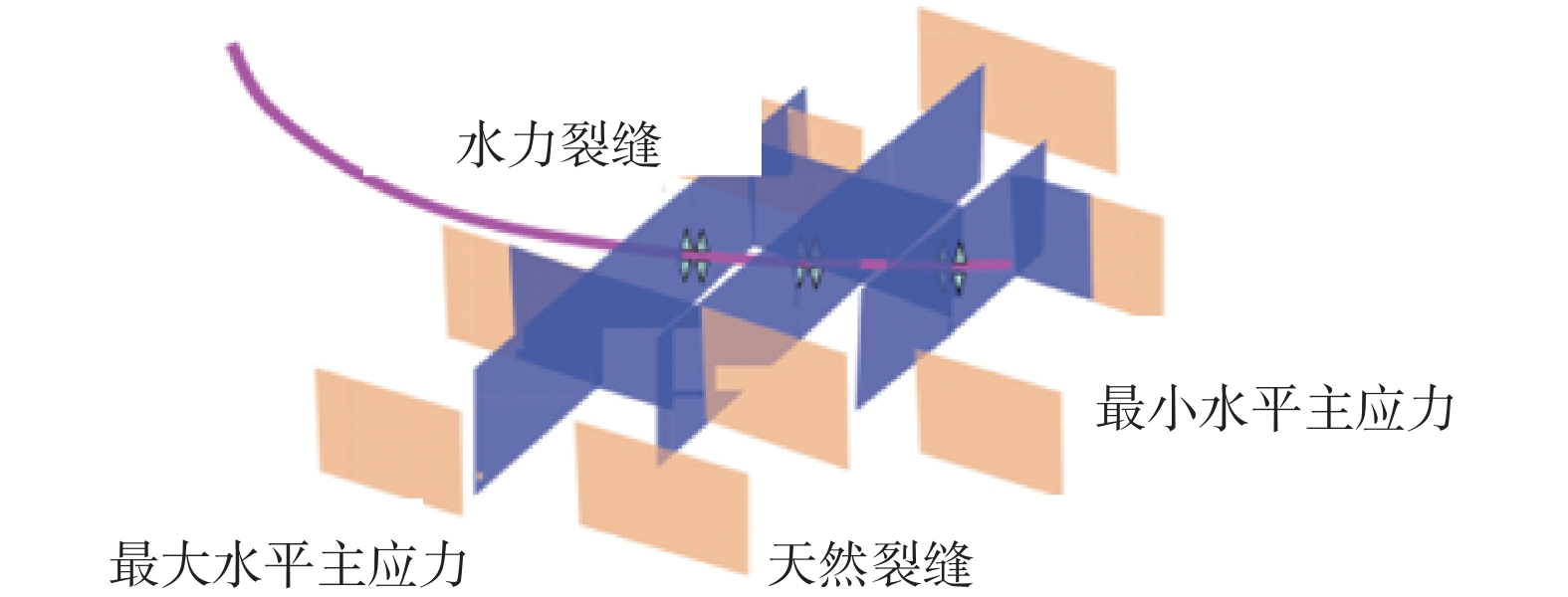

图 2 压裂过程中水力裂缝与天然裂缝交互图
Figure 2. Interaction between hydraulic fractures and natural fractures during fracturing
![]()
图 3 压裂过程中水力裂缝与天然裂缝交互图
Figure 3. Interaction between hydraulic fractures and natural fractures during fracturing
![]()

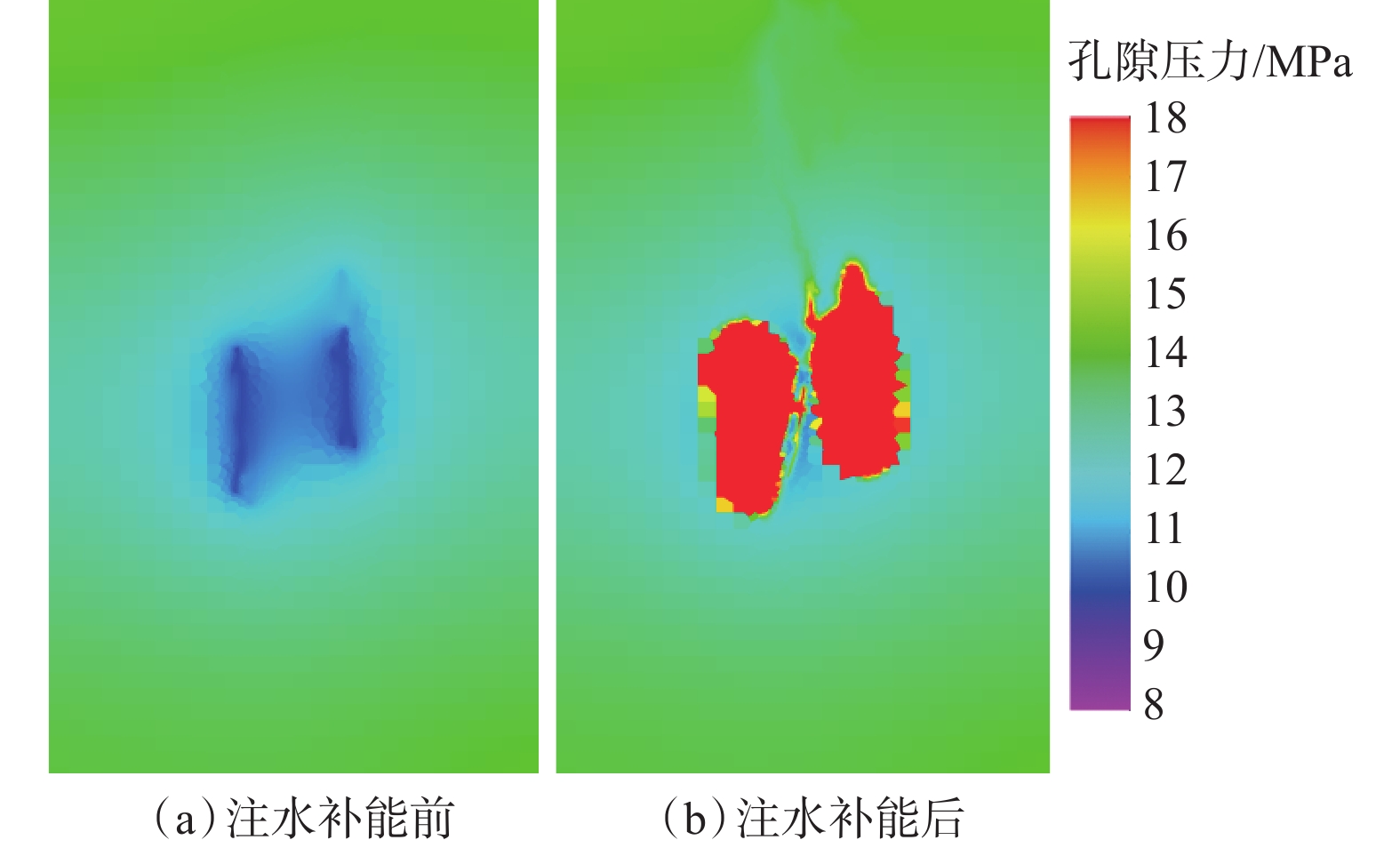

图 4 注水补能前后孔隙压力分布
Figure 4. Pore pressure distribution before and after waterinjection for energy replenishment
![]()

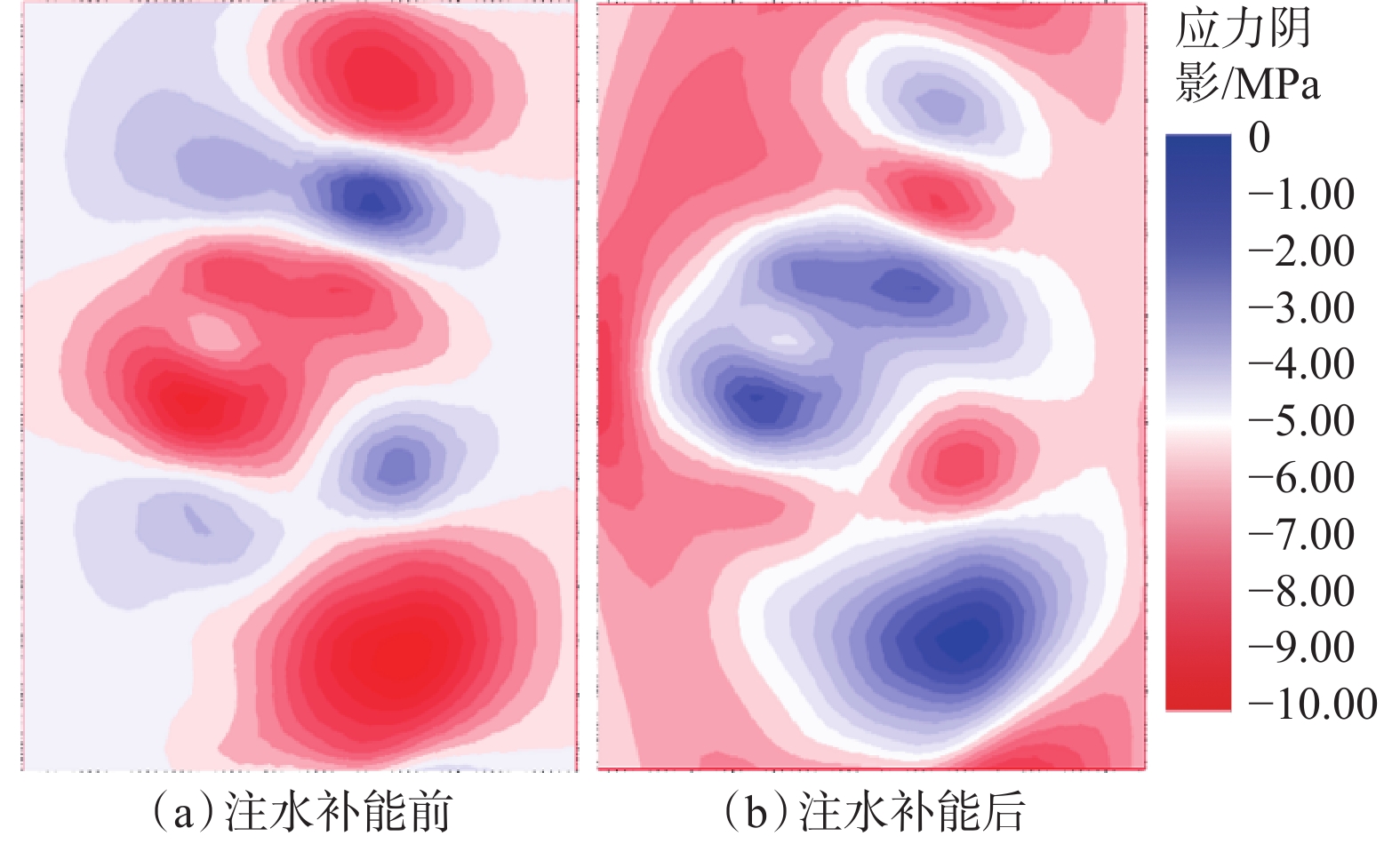

图 5 注水补能前后应力阴影分布
Figure 5. Stress shading distribution before and after water injection for energy replenishment
![]()

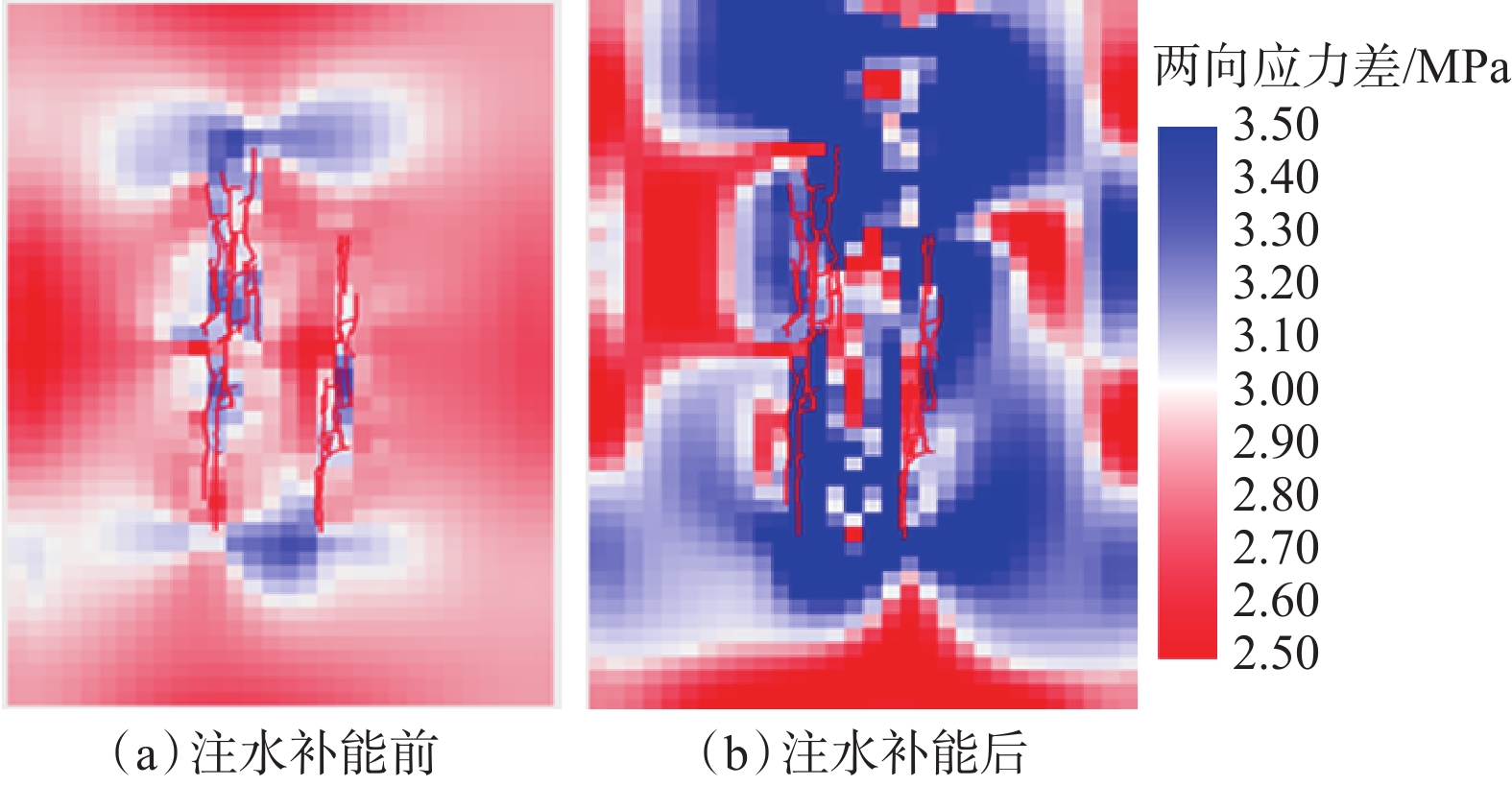

图 6 注水补能前后两向应力差分布
Figure 6. Two-way stress difference distribution before and after water injection for energy replenishment
![]()

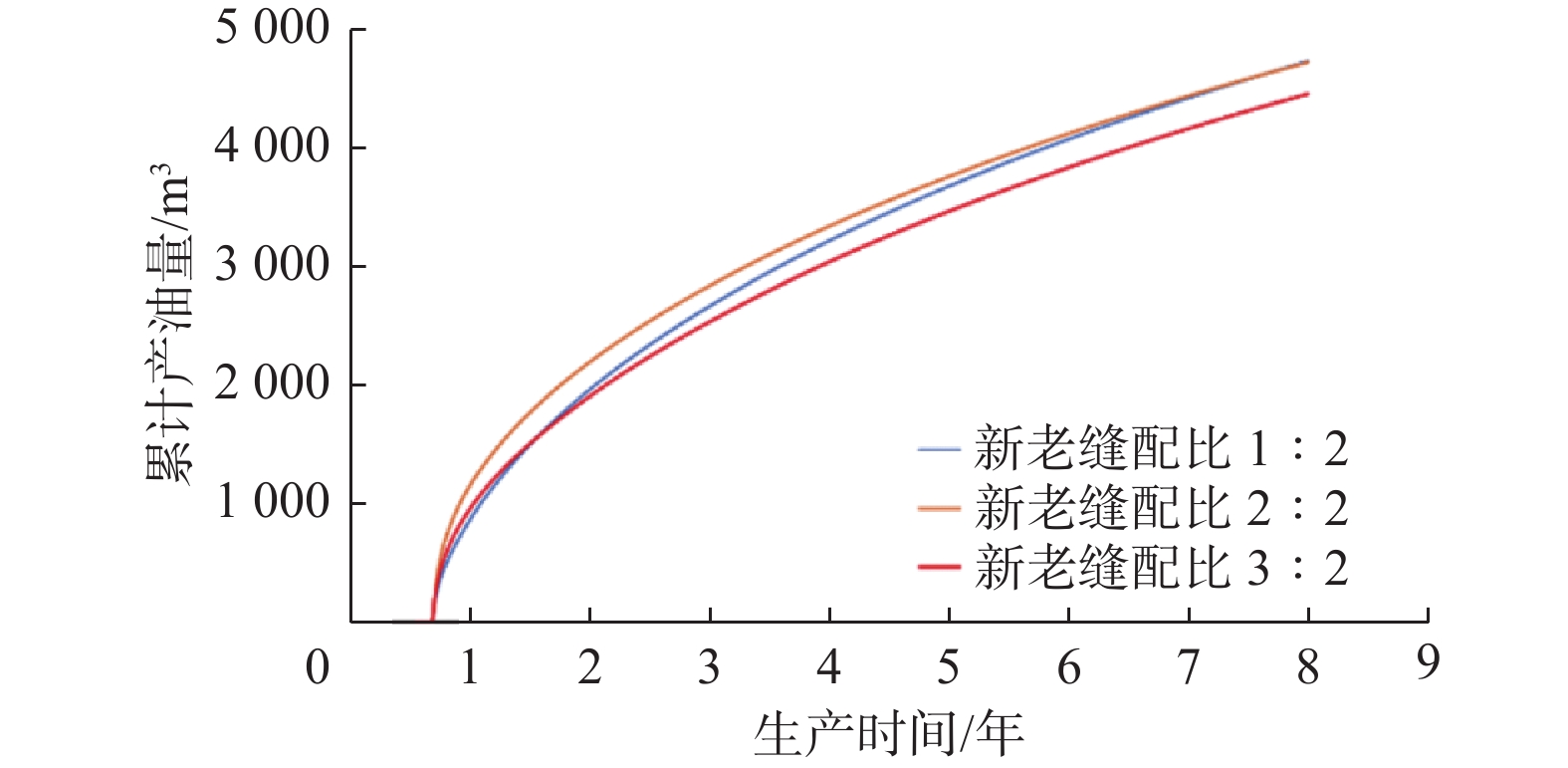

图 9 不同新老缝配比下的油井生产动态曲线
Figure 9. Oil well production dynamic curve with different proportions of new and old fractures
![]()

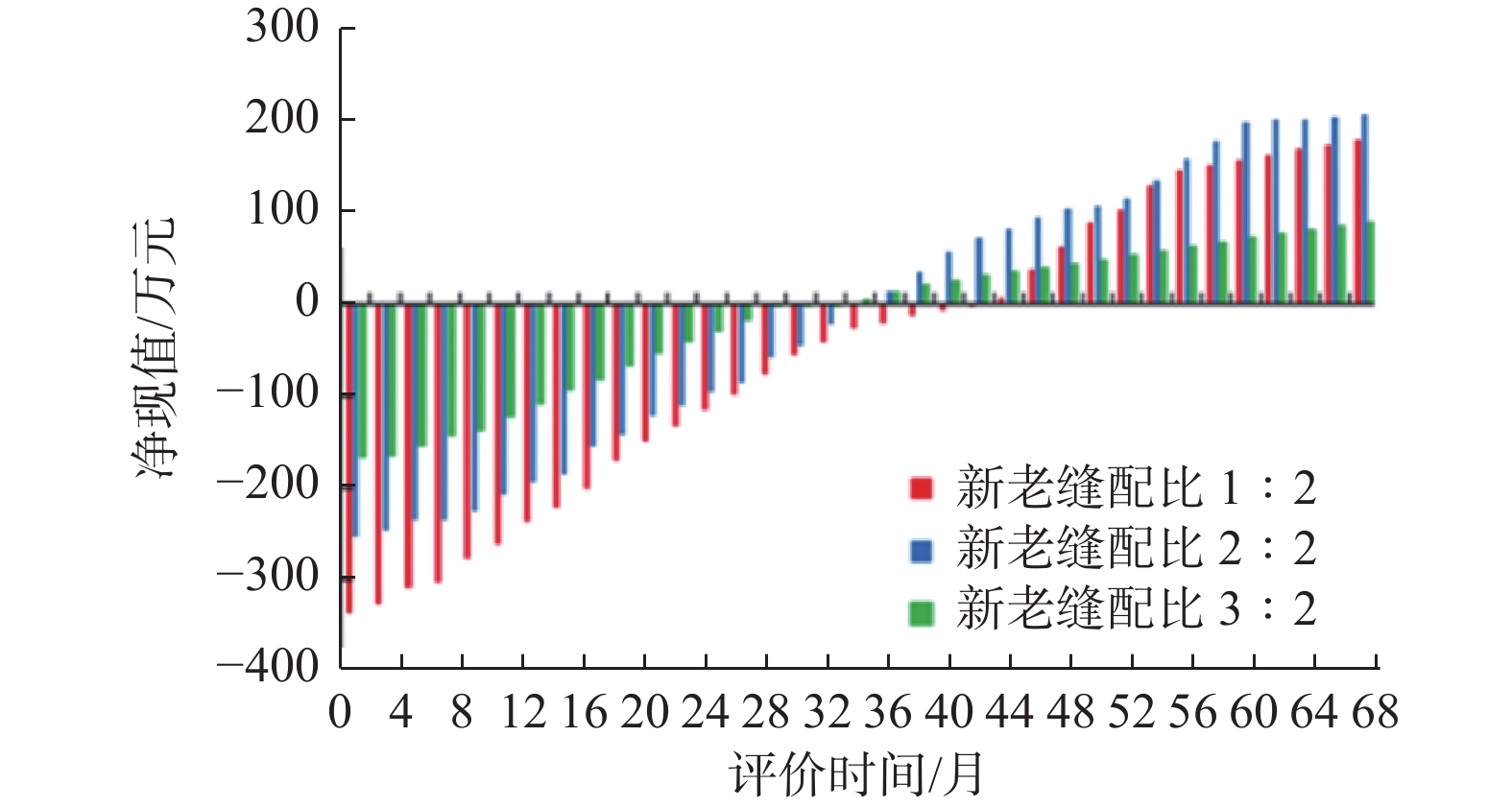

图 10 不同新老缝配比下的经济收益对比
Figure 10. Economic benefits change with different proportions of new and old fractures
表 1 不同新老缝配比下重复压裂裂缝延伸模拟参数
Table 1 Fracture extension simulation parameters with different proportions of new and old fractures
方案 裂缝导流能力/
（mD·m）单段裂缝
半长/m缝网复杂
程度新老缝配比1∶2 259.3 187.9 0.26 新老缝配比2∶2 216.8 156.6 0.28 新老缝配比3∶2 202.8 126.7 0.35
下载: 导出CSV
表 2 不同新老缝配比下的储层改造体积
Table 2 Reservoir stimulation volume with different proportions of new and old fractures
方案 平均裂缝改造体积/
108m3总改造体积/
108m3新老缝配比1∶2 0.237 0.488 新老缝配比2∶2 0.139 0.529 新老缝配比3∶2 0.118 0.606
下载: 导出CSV
-
[1] 窦立荣,汪望泉,肖伟,等. 中国石油跨国油气勘探开发进展及建议[J]. 石油科技论坛,2020,39(2):21–30. DOU Lirong, WANG Wangquan, XIAO Wei, et al. Progress and suggestions on CNPC’s multinational oil and gas exploration and development[J]. Petroleum Science and Technology Forum, 2020, 39(2): 21–30.
[2] 韩頔. 低渗透油田开发的难点与挖潜对策分析[J]. 石化技术,2019,26(5):145–146. HAN Di. Difficulties in low permeability oilfield development and analysis of potential digging strategies[J]. Petrochemical Industry Technology, 2019, 26(5): 145–146.
[3] 马国财. 低渗透油藏地质特征与开发对策分析[J]. 化工设计通讯,2019,45(4):238. MA Guocai. Geological characteristics and development countermeasures of low permeability reservoirs[J]. Chemical Engineering Design Communications, 2019, 45(4): 238.
[4] 杨学峰,张斌,朱胜利,等. 超低渗透油藏开发初期降低递减对策分析[J]. 石油化工应用,2010,29(9):52–55. YANG Xuefeng, ZHANG Bin, ZHU Shengli, et al. Analysis of the countermeasures to reduce regression at the early stage of ultra-low permeability reservoir development[J]. Petrochemical Industry Application, 2010, 29(9): 52–55.
[5] 周波,叶凯,刘江. 水平井重复压裂改造工艺分析[J]. 中国石油和化工标准与质量,2022,42(3):180–182. ZHOU Bo, YE Kai, LIU Jiang. Analysis of refracturing modification process for horizontal wells[J]. China Petroleum and Chemical Standard and Quality, 2022, 42(3): 180–182.
[6] 贺代兰. 老井重复压裂工艺技术发展现状[J]. 科技和产业,2021,21(1):264–268. doi: 10.3969/j.issn.1671-1807.2021.01.048 HE Dailan. Study on the development of repeated fracturing technology in old wells[J]. Science Technology and Industry, 2021, 21(1): 264–268. doi: 10.3969/j.issn.1671-1807.2021.01.048
[7] BARREE R D, MISKIMINS J L, SVATEK K J. Reservoir and completion considerations for the refracturing of horizontal wells[R]. SPE 184837, 2017.
[8] 庞鹏,刘振宇,王胡振,等. 重复压裂改造时机数值模拟[J]. 大庆石油地质与开发,2015,34(6):83–87. PANG Peng, LIU Zhenyu, WANG Huzhen, et al. Numerical simulation of refracturing opportunity[J]. Petroleum Geology & Oilfield Development in Daqing, 2015, 34(6): 83–87.
[9] TAVASSOLI S, YU Wei, JAVADPOUR F, et al. Well screen and optimal time of refracturing: a Barnett shale well[J]. Journal of Petroleum Engineering, 2013, 2013: 817293.
[10] 霍雅迪,江厚顺. 一种基于BP神经网络的气井重复压裂井优选方法[J]. 天然气地球科学,2020,31(4):552–558. HUO Yadi, JIANG Houshun. A preferred method for gas well re-fracturing well based on BP neural network[J]. Natural Gas Geoscience, 2020, 31(4): 552–558.
[11] YANG Changdong, XUE Xu, HUANG Jixiang, et al. Rapid refracturing candidate selection in shale reservoirs using drainage volume and instantaneous recovery ratio[R]. URTEC-2459368-MS, 2016.
[12] TAO Liang, GUO Jianchun, ZHAO Zhihong, et al. Refracturing candidate selection for MFHWs in tight oil and gas reservoirs using hybrid method with data analysis techniques and fuzzy clustering[J]. Journal of Central South University, 2020, 27(1): 277–287. doi: 10.1007/s11771-020-4295-0
[13] WANG Zhiguo, LIU Zhongneng, GUI Jie, et al. A solution for mechanical isolation volume refracturing in ultra-low permeability horizontal wells: a case study in Ordos Basin[R]. IPTC-21155-MS, 2021.
[14] ARTUN E,KULGA B. 基于模糊推理的致密砂岩气储集层重复压裂井选择方法[J]. 石油勘探与开发,2020,47(2):383–389. doi: 10.1016/S1876-3804(20)60055-6 ARTUN E, KULGA B. Selection of candidate wells for re-fracturing in tight gas sand reservoirs using fuzzy inference[J]. Petroleum Exploration and Development, 2020, 47(2): 383–389. doi: 10.1016/S1876-3804(20)60055-6
[15] 郭建春,陶亮,曾凡辉. 致密油储集层水平井重复压裂时机优化:以松辽盆地白垩系青山口组为例[J]. 石油勘探与开发,2019,46(1):146–154. GUO Jianchun, TAO Liang, ZENG Fanhui. Optimization of refracturing timing for horizontal wells in tight oil reservoirs: a case study of Cretaceous Qingshankou Formation, Songliao Basin, NE China[J]. Petroleum Exploration and Development, 2019, 46(1): 146–154.
[16] 何海波. 致密油水平井缝网增能重复压裂技术实践[J]. 特种油气藏,2018,25(4):170–174. HE Haibo. Practice of re-fracturing with network energization for horizontal well in tight oil reservoir[J]. Special Oil & Gas Reservoirs, 2018, 25(4): 170–174.
[17] 蒋廷学,周珺,廖璐璐. 国内外智能压裂技术现状及发展趋势[J]. 石油钻探技术,2022,50(3):1–9. JIANG Tingxue, ZHOU Jun, LIAO Lulu. Development status and future trends of intelligent fracturing technologies[J]. Petroleum Drilling Techniques, 2022, 50(3): 1–9.
[18] JAYAKUMAR R, RAI R, BOULIS A, et al. A systematic study for refracturing modeling under different scenarios in shale reser-voirs[R]. SPE 165677, 2013.
[19] HUANG Jixiang, YANG Changdong, XUE Xu, et al. Simulation of coupled fracture propagation and well performance under different refracturing designs in shale reservoirs[R]. SPE 180238, 2016.
[20] 任佳伟,王贤君,张先敏,等. 大庆致密油藏水平井重复压裂及裂缝参数优化模拟[J]. 断块油气田,2020,27(5):638–642. REN Jiawei, WANG Xianjun, ZHANG Xianmin, et al. Refracturing and fracture parameters optimization simulation for horizontal well in Daqing tight oil reservoir[J]. Fault-Block Oil & Gas Field, 2020, 27(5): 638–642.
[21] 黄婷,苏良银,达引朋,等. 超低渗透油藏水平井储能压裂机理研究与现场试验[J]. 石油钻探技术,2020,48(1):80–84. HUANG Ting, SU Liangyin, DA Yinpeng, et al. Research and field test on energy storage fracturing mechanism of horizontal wells in ultra-low permeability reservoirs[J]. Petroleum Drilling Techniques, 2020, 48(1): 80–84.
[22] 胡春桥,任来义,贺永红,等. 鄂尔多斯盆地延长探区油气勘探历程与启示[J]. 新疆石油地质,2021,42(3):312–318. HU Chunqiao, REN Laiyi, HE Yonghong, et al. Petroleum exploration history and enlightenment of Yanchang exploration area in Ordos Basin[J]. Xinjiang Petroleum Geology, 2021, 42(3): 312–318.
[23] 达引朋, 陆红军, 杨博丽, 等. 低渗透老油田新型多缝重复压裂技术研究与应用[J]. 石油钻探技术, 2015, 43(3): 65-70. DA Yinpeng, LU Hongjun, YANG Boli, et al. Research and application of new refracturing technology in low permeability oilfield[J]. Petroleum Drilling Techniques, 2015, 43(3): 65-70.
[24] MASOULEH S F, KUMAR D, GHASSEMI A. Three-dimensional geomechanical modeling and analysis of refracturing and “frac-hits” in unconventional reservoirs[J]. Energies, 2020, 13(20): 5352. doi: 10.3390/en13205352
[25] HUBBERT M K, WILLIS D G. Mechanics of hydraulic frac-turing[J]. Transactions of the AIME, 1957, 210(1): 153–168. doi: 10.2118/686-G
[26] CIPOLLA C L, WARPINSKI N R, MAYERHOFER M J, et al. The relationship between fracture complexity, reservoir properties, and fracture-treatment design[J]. SPE Production & Operations, 2010, 25(4): 438–452.
[27] ZHU Haiyan, TANG Xuanhe, LIU Qingyou, et al. Complex fractures propagations of infill well based on reservoir stress evolution after long-time shale gas production[R]. ARMA-2019-0403, 2019.
