抗高温高密度生物质钻井液体系研究及应用

周启成; 梁应红; 单海霞; 黄桃; 国安平; 王俊祥

doi:10.11911/syztjs.2022109

抗高温高密度生物质钻井液体系研究及应用

周启成^{1, 2,},
梁应红^{1, 2},
单海霞^{1, 2},
黄桃³,
国安平^{1, 2},
王俊祥³

1.
中石化石油工程钻完井液技术中心, 河南濮阳 457001
2.
中石化中原石油工程有限公司钻井工程技术研究院, 河南濮阳 457001
3.
中石化中原石油工程有限公司西南钻井分公司, 四川成都 611230

基金项目: 中国石化集团公司科技攻关项目“抗温抗盐生物质合成树脂降滤失剂研制”（编号：JP18038-1）、中石化石油工程公司科技攻关项目“水基钻井液用生物质合成树脂降滤失剂研制”（编号：SG19-82K）资助

详细信息

作者简介:
周启成（1988—），男，广东梅州人，2013年毕业于长江大学石油工程专业，2016年获长江大学油气井工程专业硕士学位，工程师，主要从事生物质功能材料（油田化学品）研发工作。E-mail:625687692@qq.com

中图分类号: TE254
计量
- 文章访问数: 229
- HTML全文浏览量: 122
- PDF下载量: 62
出版历程
- 收稿日期: 2022-03-04
- 修回日期: 2022-10-15
- 网络出版日期: 2022-11-07
- 刊出日期: 2022-12-07

Research and Application of a High-Temperature Resistant and High-Density Biomass Drilling Fluid System

ZHOU Qicheng^{1, 2,},
LIANG Yinghong^{1, 2},
SHAN Haixia^{1, 2},
HUANG Tao³,
GUO Anping^{1, 2},
WANG Junxiang³

1.
Drilling and Completion Fluid Technology Center of Sinopec Oilfield Service Corporation, Puyang, Henan, 457001, China
2.
Drilling Engineering and Technology Research Institute, Sinopec Zhongyuan Oilfield Service Corporation, Puyang, Henan, 457001, China
3.
Southwest Drilling Company, Sinopec Zhongyuan Oilfield Service Corporation, Chengdu, Sichuan, 611230, China

摘要

摘要:
为了提高抗高温高密度钻井液体系的高温稳定性及环保性能，以自主研发的生物质合成树脂降滤失剂、抑制剂和润滑剂为核心处理剂，对处理剂加量进行优化，构建了抗高温高密度生物质钻井液体系。性能评价结果表明：该体系抗温可达200 ℃，抗1.0%CaCl₂污染，岩屑滚动回收率达94.3%，润滑系数≤0.128，生物毒性EC₅₀为89 230 mg/L。现场应用表明，抗高温高密度生物质钻井液具有较好的抗污染能力，在密度达2.55 kg/L、井底温度达140 ℃的情况下其仍具有很好的流变稳定性能。抗高温高密度生物质钻井液促进了生物质资源在钻井液领域的利用，解决了高密度水基钻井液抗温性与环保性相矛盾的问题，具有较好的现场推广应用价值。
- 钻井液 /
- 生物质 /
- 高密度 /
- 环保性 /
- 稳定性 /
- 抗温性
Abstract:
In order to improve the temperature stability and environmental protection performance of a high-temperature resistant and high-density drilling fluid system, the self-developed filtrate reducers, inhibitors, and lubricants with biomass synthetic resin were taken as the core treatment agents, the dosages of the treatment agents were optimized, and a high-temperature resistant and high-density biomass drilling fluid system was constructed. The performance evaluation results showed that the system could resist temperature up to 200 °C. It also could resist CaCl₂ pollution of 1%. The rock cuttings rolling recovery was 94.3%, with the lubrication coefficient ≤ 0.128. The biological toxicity EC₅₀ value was 89 230 mg/L. The field application showed that the high-temperature resistant and high-density biomass drilling fluids could significantly resist pollution. They had excellent rheological stability when the density was up to 2.55 kg/L and the bottom hole temperature was 140 °C. The high-temperature resistant and high-density biomass drilling fluids can promote the utilization of biomass resources in the drilling fluid field and solve the trade-off between the temperature resistance and environmental protection of high-density water-based drilling fluids. Therefore, the drilling fluids have positive field promotion and application value.
- drilling fluid /
- biomass /
- high density /
- environmental protection performance /
- stability /
- temperature resistance

HTML全文

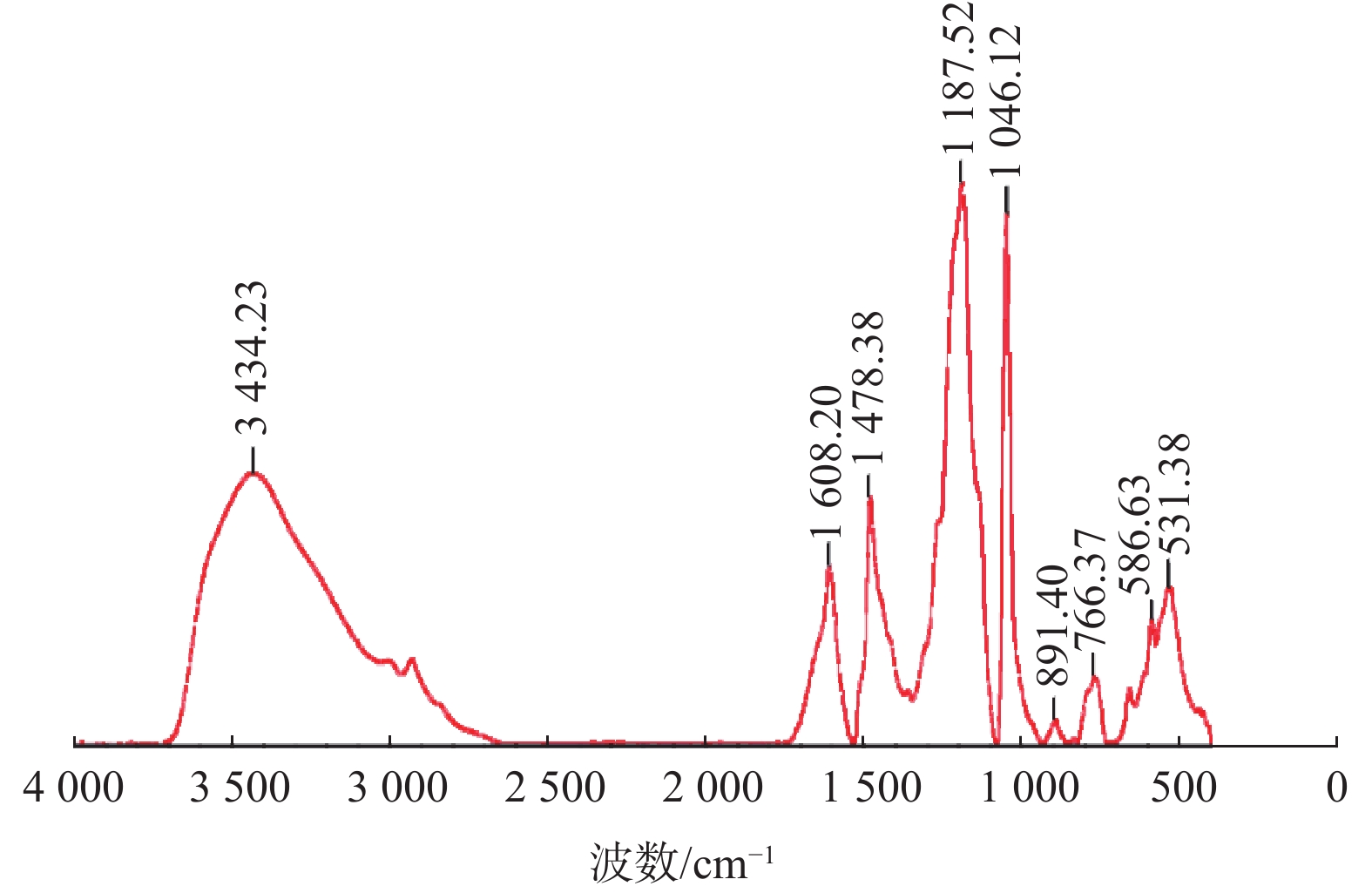

图 1 生物质合成树脂降滤失剂红外光谱

Figure 1. Infrared spectroscopy of filtrate reducers with biomass synthetic resin

下载: 全尺寸图片幻灯片

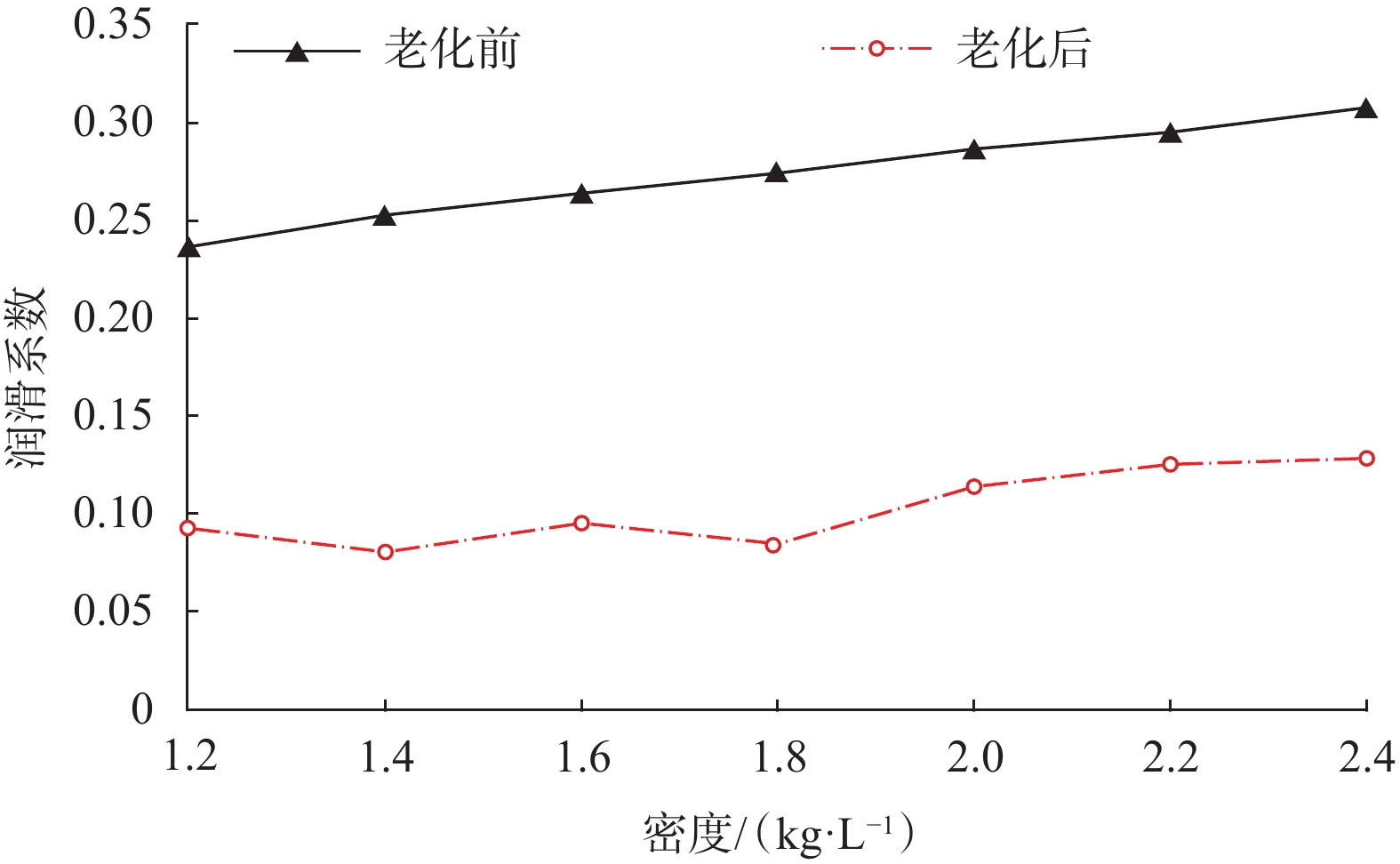

图 2 不同密度抗高温高密度生物质钻井液的润滑系数

Figure 2. Lubrication coefficient of high-temperature resistant and high-density biomass drilling fluids with different densities

下载: 全尺寸图片幻灯片

表 1 基浆加入不同量降滤失剂时的基本性能

Table 1 Basic properties of drilling fluids with different dosages of filtrate reducers

降滤失剂加量，%	表观黏度/ （mPa·s）	塑性黏度/ （mPa·s）	动切力/ Pa	API滤失量/mL	高温高压滤失量/mL
2.0	28.0	18	10.0	18	58.6
4.0	30.5	17	13.5	12	26.4
6.0	32.5	15	17.5	8	22.8

下载: 导出CSV

表 2 钠膨润土基浆加入不同量抑制剂时的抑制性能

Table 2 Inhibition properties of sodium bentonite drilling fluids with different dosages of inhibitors

抑制剂加量， %	表观黏度/ （mPa·s）	塑性黏度/ （mPa·s）	动切力/ Pa	相对抑制率， %
0	85.0	6	79.0
0.3	25.0	17	8.0	89.1
0.5	16.5	12	4.5	93.2
0.7	7.5	5	2.5	96.6
1.0	6.5	6	0.5	98.6

下载: 导出CSV

表 3 基浆加入不同量润滑剂时的润滑性能

Table 3 Lubricating properties of drilling fluids with different lubricant contents

润滑剂加量，%	润滑系数	润滑系数减小率，%
0	0.425
0.5	0.082	80.71
1.0	0.039	90.82
1.5	0.035	91.76
2.0	0.033	92.24
2.5	0.031	92.71
3.0	0.028	93.41

下载: 导出CSV

表 4 不同温度下抗高温高密度生物质钻井液的基本性能

Table 4 Basic properties of high-temperature resistant and high-density biomass drilling fluids at different temperatures

老化温度/℃	表观黏度/（mPa·s）	塑性黏度/（mPa·s）	动切力/Pa	静切力/Pa		API滤失量/mL	高温高压滤失量/mL
老化温度/℃	表观黏度/（mPa·s）	塑性黏度/（mPa·s）	动切力/Pa	初切	终切	API滤失量/mL	高温高压滤失量/mL
120	31	24	7	1.0	5.0	1.2	8
160	38	34	4	1.5	5.5	1.6	9
180	31	23	8	2.0	6.5	1.8	10
200	40	31	9	3.0	8.0	2.4	14

下载: 导出CSV

表 5 不同密度抗高温高密度生物质钻井液的基本性能

Table 5 Basic properties of high-temperature resistant and high-density biomass drilling fluids with different densities

密度/（kg·L⁻¹）	表观黏度/（mPa·s）	塑性黏度/（mPa·s）	动切力/Pa	静切力/Pa		API滤失量/mL	高温高压滤失量/mL
密度/（kg·L⁻¹）	表观黏度/（mPa·s）	塑性黏度/（mPa·s）	动切力/Pa	初切	终切	API滤失量/mL	高温高压滤失量/mL
1.80	39.0	33.0	6.0	1.0	3.5	3.2	13
2.10	40.0	31.0	9.0	3.0	8.0	2.4	14
2.30	55.0	43.0	12.0	2.5	8.5	2.6	12
2.40	61.5	56.0	5.5	1.5	7.0	3.6	14

下载: 导出CSV

表 6 抗高温高密度生物质钻井液环保性能测试结果

Table 6 Test results of environmental protection performance of high-temperature resistant and high-density biomass drilling fluids

名称	生物毒性EC₅₀/（mg·L⁻¹）	生物可降解性
降滤失剂LDR	620 000	0.26
抑制剂SW-A	112 000	0.47
润滑剂ZYRH-1	151 400	0.51
抗高温生物质钻井液	89 230	0.17

下载: 导出CSV

表 7 不同钙离子加量下的抗高温高密度生物质钻井液性能

Table 7 Performance of high-temperature resistant and high-density biomass drilling fluids with different calcium ion dosages

氯化钙加量，%	表观黏度/ （mPa·s）	塑性黏度/ （mPa·s）	动切力/Pa	静切力/Pa		API滤失量/mL	高温高压滤失量/mL
氯化钙加量，%	表观黏度/ （mPa·s）	塑性黏度/ （mPa·s）	动切力/Pa	初切	终切	API滤失量/mL	高温高压滤失量/mL
0	30.0	22.0	8.0	2.5	8.5	1.8	12
0.2	31.0	23.0	8.0	3.5	13.5	2.2	10
0.4	30.5	25.0	5.5	3.0	11.5	2.4	10
0.8	40.0	35.0	5.0	3.0	14.0	2.8	14
1.0	55.0	46.0	9.0	4.0	19.0	3.2	16

下载: 导出CSV

参考文献(15)

[1]	樊相生,曾李,张勇,等. 元坝地区高密度超高密度钻井液技术[J]. 钻井液与完井液,2014,31(2):31–34. doi: 10.3969/j.issn.1001-5620.2014.02.009 FAN Xiangsheng, ZENG Li, ZHANG Yong, et al. Ultra-high density drilling fluid technology used in Yuanba[J]. Drilling Fluid & Completion Fluid, 2014, 31(2): 31–34. doi: 10.3969/j.issn.1001-5620.2014.02.009
[2]	马鸿彦,郑邦贤,陈景旺,等. 杨税务潜山超深超高温井安全优快钻井技术[J]. 石油钻采工艺,2020,42(5):573–577. doi: 10.13639/j.odpt.2020.05.008 MA Hongyan, ZHENG Bangxian, CHEN Jingwang, et al. Optimized, safe and fast drilling technologies used in the ultra deep and high temperature wells in Yangshuiwu buried hill[J]. Oil Drilling & Production Technology, 2020, 42(5): 573–577. doi: 10.13639/j.odpt.2020.05.008
[3]	王志远,黄维安,范宇,等. 长宁区块强封堵油基钻井液技术研究及应用[J]. 石油钻探技术,2021,49(5):31–38. doi: 10.11911/syztjs.2021039 WANG Zhiyuan, HUANG Weian, FAN Yu, et al. Technical research and application of oil base drilling fluid with strong plugging property in Changning Block[J]. Petroleum Drilling Techniques, 2021, 49(5): 31–38. doi: 10.11911/syztjs.2021039
[4]	李斌,石秉忠,彭商平,等. 元坝地区高密度钻井液CO₂污染处理技术[J]. 钻井液与完井液,2013,30(5):22–24. doi: 10.3969/j.issn.1001-5620.2013.05.006 LI Bin, SHI Bingzhong, PENG Shangping, et al. CO₂ contamination treatment technology of high density drilling fluid in block of Yuanba[J]. Drilling Fluid & Completion Fluid, 2013, 30(5): 22–24. doi: 10.3969/j.issn.1001-5620.2013.05.006
[5]	蒲晓林,黄林基,罗兴树,等. 深井高密度水基钻井液流变性、造壁性控制原理[J]. 天然气工业,2001,21(6):48–51. doi: 10.3321/j.issn:1000-0976.2001.06.015 PU Xiaolin, HUANG Linji, LUO Xingshu, et al. Principles controlling the rheological property and wall building property of deep well high density water-base drilling fluid[J]. Natural Gas Industry, 2001, 21(6): 48–51. doi: 10.3321/j.issn:1000-0976.2001.06.015
[6]	张喜凤,李天太,施里宇,等. 深井抗高温高密度盐水钻井液实验研究[J]. 西安石油大学学报(自然科学版),2007,22(5):37–40. ZHANG Xifeng, LI Tiantai, SHI Liyu, et al. Experimental study of the high-density salt water drilling fluid with high-temperature resistance for deep wells[J]. Journal of Xi’an Shiyou University(Natural Science Edition), 2007, 22(5): 37–40.
[7]	李林,黄文章,向林,等. 高效环保型页岩气开发水基钻井液体系研究[J]. 石油与天然气化工,2017,46(6):71–74. doi: 10.3969/j.issn.1007-3426.2017.06.013 LI Lin, HUANG Wenzhang, XIANG Lin, et al. Study of water-based drilling fluid system with high efficiency and environment-friendly for shale gas development[J]. Chemical Engineering of Oil and Gas, 2017, 46(6): 71–74. doi: 10.3969/j.issn.1007-3426.2017.06.013
[8]	宿振国,王瑞和,刘均一,等. 高性能环保水基钻井液的研究与应用[J]. 钻井液与完井液,2021,38(5):576–582. SU Zhenguo, WANG Ruihe, LIU Junyi, et al. Study and application of environmentally friendly high performance water base drilling fluid[J]. Drilling Fluid & Completion Fluid, 2021, 38(5): 576–582.
[9]	周启成,单海霞,位华,等. 环保型生物质合成树脂降滤失剂[J]. 钻井液与完井液,2020,37(5):593–596. ZHOU Qicheng, SHAN Haixia, WEI Hua, et al. A synthetic resin filter loss reducer made from environmentally friendly biomasses[J]. Drilling Fluid & Completion Fluid, 2020, 37(5): 593–596.
[10]	宋海,龙武,邓雄伟. 页岩气水基钻井液用抗高温环保润滑剂的研制及应用[J]. 断块油气田,2021,28(6):761–764. SONG Hai, LONG Wu, DENG Xiongwei. Development and application of high temperature resistant and environmental protection lubricant for shale gas water-based drilling fluid[J]. Fault-Block Oil & Gas Field, 2021, 28(6): 761–764.
[11]	李钟,罗石琼,罗恒荣,等. 多元协同防塌钻井液技术在临盘油田探井的应用[J]. 断块油气田,2019,26(1):97–100. doi: 10.6056/dkyqt201901022 LI Zhong, LUO Shiqiong, LUO Hengrong, et al. Application of multivariate synergistic anti-caving drilling fluid technology in exploratory wells of Linpan Oilfield[J]. Fault-Block Oil & Gas Field, 2019, 26(1): 97–100. doi: 10.6056/dkyqt201901022
[12]	宣扬,刘珂,郭科佑,等. 顺北超深水平井环保耐温低摩阻钻井液技术[J]. 特种油气藏,2020,27(3):163–168. doi: 10.3969/j.issn.1006-6535.2020.03.027 XUAN Yang, LIU Ke, GUO Keyou, et al. Environmental anti-temperature low friction drilling fluid technology of ultra-deep horizontal well in Shunbei Oil & Gas Field[J]. Special Oil & Gas Reservoirs, 2020, 27(3): 163–168. doi: 10.3969/j.issn.1006-6535.2020.03.027
[13]	张晓刚,单海霞,李彬,等. 环保无荧光生物质润滑剂ZYRH的性能与应用[J]. 油田化学,2019,36(2):196–200. doi: 10.19346/j.cnki.1000-4092.2019.02.002 ZHANG Xiaogang, SHAN Haixia, LI Bin, et al. Development and application of an environment-friendly and non-fluorescent biomass lubricant[J]. Oilfield Chemistry, 2019, 36(2): 196–200. doi: 10.19346/j.cnki.1000-4092.2019.02.002
[14]	钱晓琳,宣扬,林永学,等. 钻井液环保润滑剂SMLUB-E的研制及应用[J]. 石油钻探技术,2020,48(1):34–39. doi: 10.11911/syztjs.2019113 QIAN Xiaolin, XUAN Yang, LIN Yongxue, et al. Development and application of an environmental-friendly drilling fluid lubricant SMLUB-E[J]. Petroleum Drilling Techniques, 2020, 48(1): 34–39. doi: 10.11911/syztjs.2019113
[15]	罗人文,龙大清,王昆,等. 马深1井超深井钻井液技术[J]. 石油钻采工艺,2016,38(5):588–593. doi: 10.13639/j.odpt.2016.05.009 LUO Renwen, LONG Daqing, WANG Kun, et al. Drilling fluid for the super-deep Well Mashen-1[J]. Oil Drilling & Production Technology, 2016, 38(5): 588–593. doi: 10.13639/j.odpt.2016.05.009
