顺北油气田防漏固井用封隔式分级箍研制与应用

路飞飞, 于洋, 王伟志, 李明军

路飞飞,于洋,王伟志,等. 顺北油气田防漏固井用封隔式分级箍研制与应用[J]. 石油钻探技术,2022, 50(4):31-36. DOI: 10.11911/syztjs.2022076
引用本文: 路飞飞,于洋,王伟志,等. 顺北油气田防漏固井用封隔式分级箍研制与应用[J]. 石油钻探技术,2022, 50(4):31-36. DOI: 10.11911/syztjs.2022076
LU Feifei, YU Yang, WANG Weizhi, et al. Development and application of a leakproof stage cementing collar with packer in the Shunbei Oil & Gas Field [J]. Petroleum Drilling Techniques,2022, 50(4):31-36. DOI: 10.11911/syztjs.2022076
Citation: LU Feifei, YU Yang, WANG Weizhi, et al. Development and application of a leakproof stage cementing collar with packer in the Shunbei Oil & Gas Field [J]. Petroleum Drilling Techniques,2022, 50(4):31-36. DOI: 10.11911/syztjs.2022076

顺北油气田防漏固井用封隔式分级箍研制与应用

基金项目: 中国石化重点科技项目群“顺北特深层断裂破碎带区块安全成井关键技术”(编号:PE19004)课题三“顺北一区易漏失地层固井技术研究与应用”部分研究内容
详细信息
    作者简介:

    路飞飞(1985—),女,山东新泰人,2008年毕业于中国石油大学(华东)石油工程专业,2011年获中国石油大学(华东)油气井工程专业硕士学位,工程师,主要从事固井水泥浆体系与固井工艺研究。E-mail: luff.xbsj@sinopec.com。

  • 中图分类号: TE925+.2

Development and Application of a Leakproof Stage Cementing Collar with Packer in the Shunbei Oil & Gas Field

  • 摘要:

    顺北油气田二叠系固井极易发生漏失,环空水泥缺失长度超过2 000 m,导致生产期间套损严重。针对该问题,研制了封隔式分级箍,并进行了室内性能评价试验和现场应用。室内性能评价试验发现,该分级箍不仅具有常规分级箍的功能,还可以在一级固井后胀封封隔器,封隔漏层,防止二级固井时发生漏失,提高环空水泥环完整性;封隔器胀封后,环空封隔能力可达20 MPa;循环孔关闭后,管内密封能力不低于套管抗内压强度。顺北油气田9口井应用了封隔式分级箍,二级固井平均漏失量由105.1 m3降至3.5 m3,环空水泥缺失长度由2 048 m缩短至350 m,节约固井成本约1 100万元。封隔式分级箍解决了长裸眼易漏失井段固井时的漏失问题,为顺北油气田的高效开发提供了技术支撑。

    Abstract:

    Permian cementing was leakprone in the Shunbei Oil & Gas Field, and the loss of annular cement surpassed 2 000 m, which led to severe casing damage in the production period. To solve this problem, a stage cementing collar with packer was developed, performance evaluated in the laboratory, and applied in fields. The tool works well not only with the conventional function of the stage cementing collar, it can also expand the packer upon the first-stage cementing to seal the layers and prevent the leakage of the second-stage cementing and thus improve the integrity of annular cement sheaths. After the expansion, the annular sealing capacity of the tool could reach 20 MPa, and when the circulation holes were closed, the internal sealing capacity should not be lower than the internal pressure strength of the casing. The developed tool was applied in nine wells of the Shunbei Oil & Gas Field. The results revealed that the average leakage of the second-stage cementing was reduced from 105.1 m3 to 3.5 m3, and the missing length of annular cement declined from 2 048 m to 350 m, saving about 11.0 million yuan in cementing. The stage cementing collar with packer could solve the leakage problem in the cementing of the leakprone well sections which tend to leak in long open holes. The lessons learned in this study provide technical support for the efficient development of the Shunbei Oil & Gas Field.

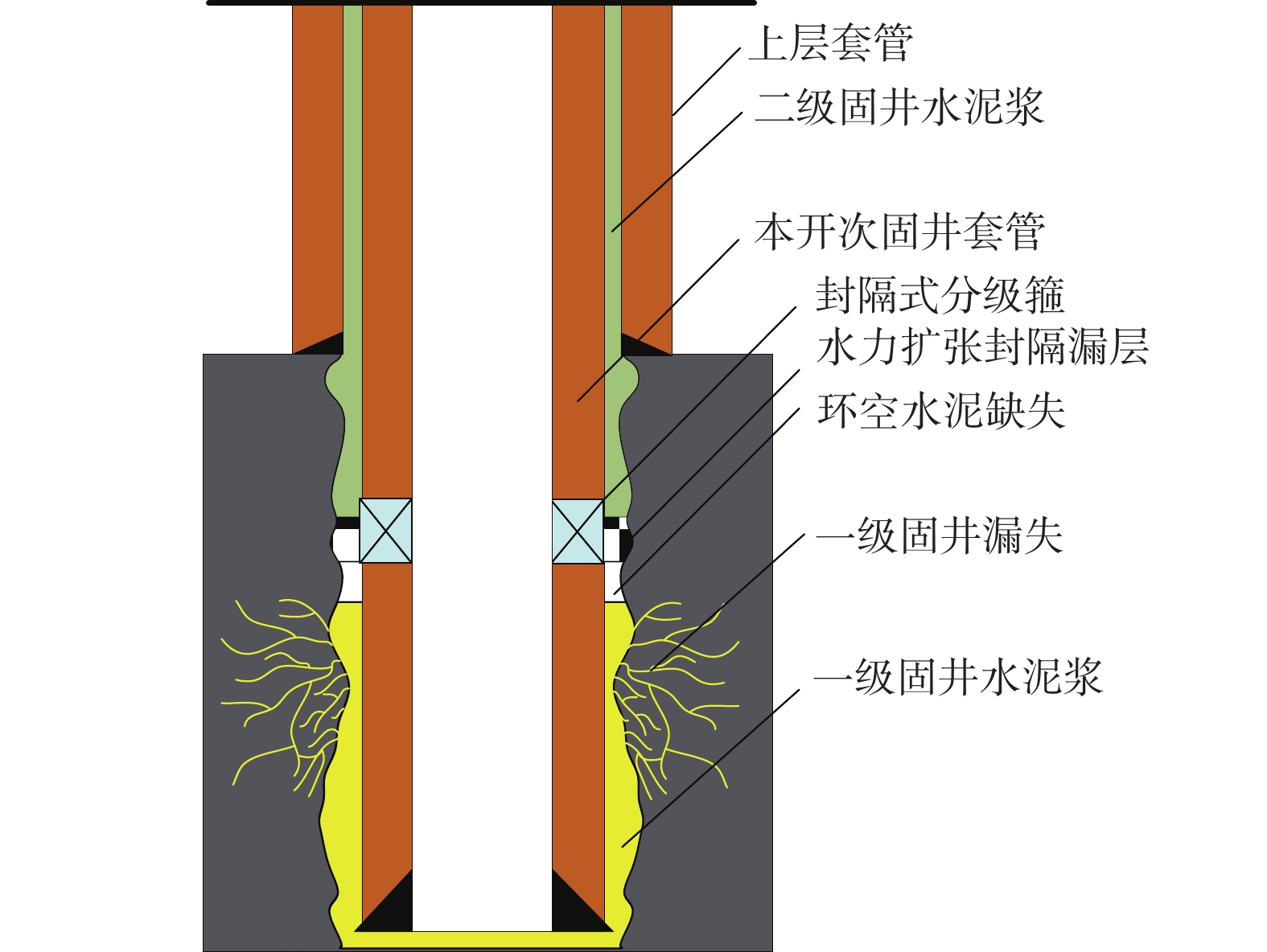

  • 图  1   固井防漏示意

    Figure  1.   Anti-leakage in cementing

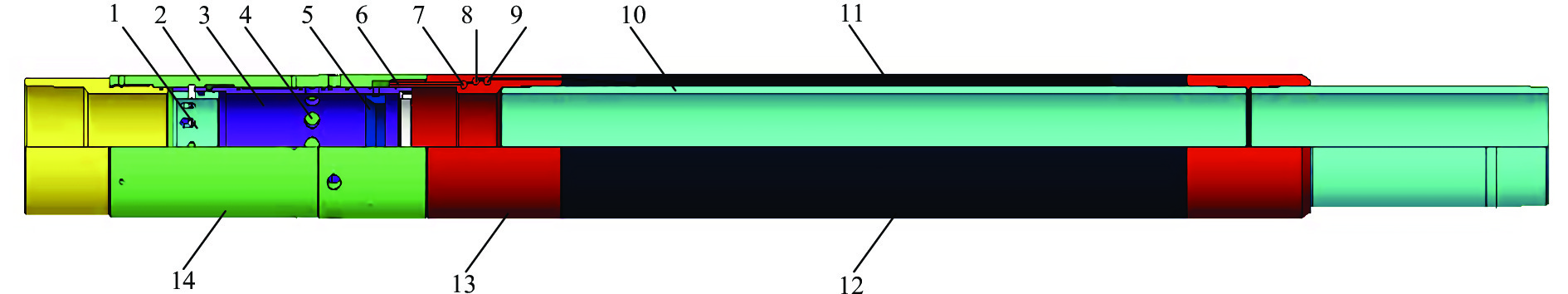

    图  2   封隔式分级箍结构

    1.关闭塞座;2.分级箍本体;3.关闭套;4.循环孔;5.打开塞座;6.注液通道;7.开启阀;8.单向阀;9.关闭阀;10.基管;11.胶筒;12.封隔器单元;13.连接阀单元;14.分级箍单元

    Figure  2.   Stage cementing collar with packer

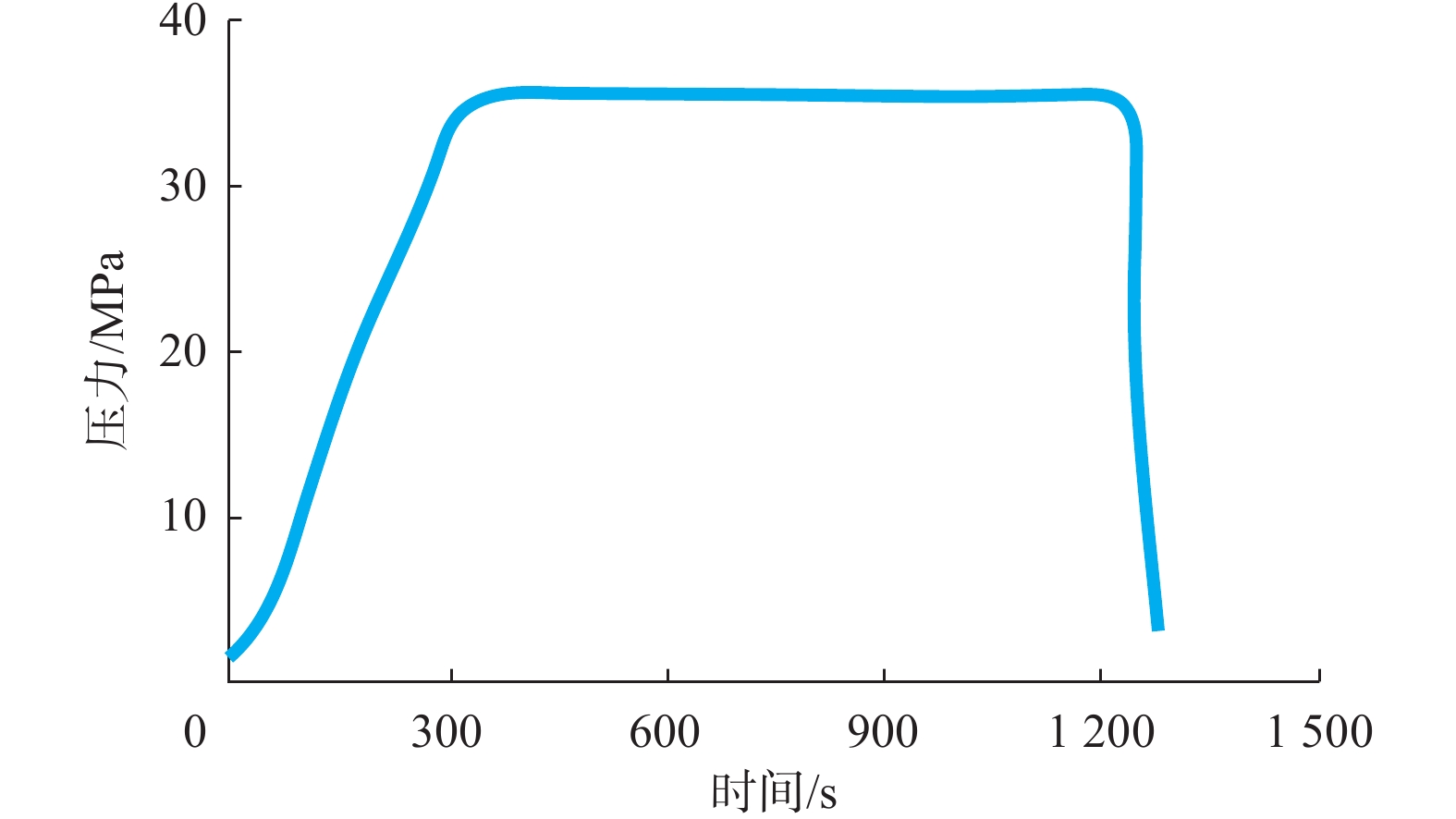

    图  3   整机密封压力试验结果

    Figure  3.   Results of sealing pressure test for the whole machine

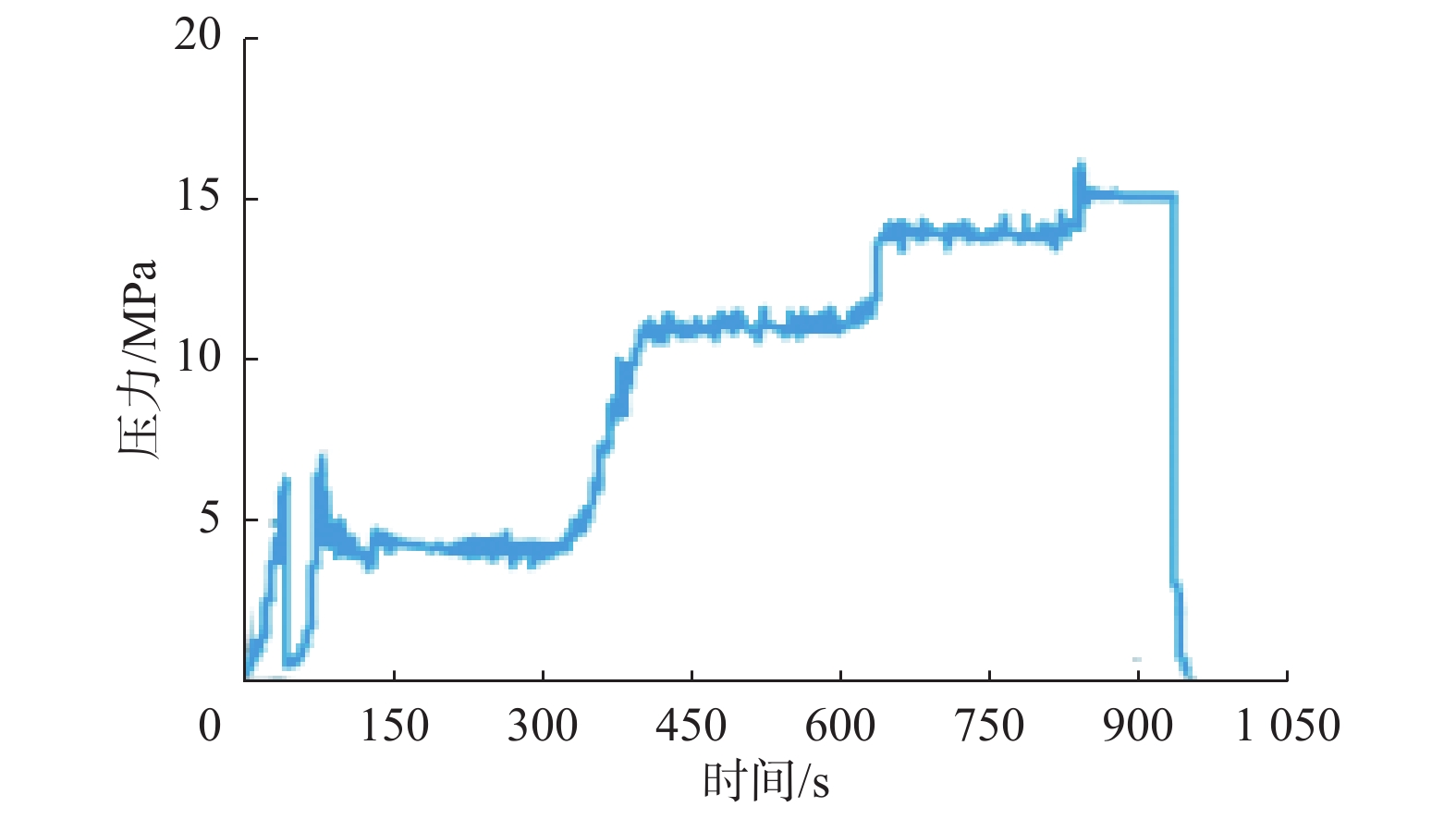

    图  4   封隔器胀封压力试验结果

    Figure  4.   Pressure test results of packer expansion

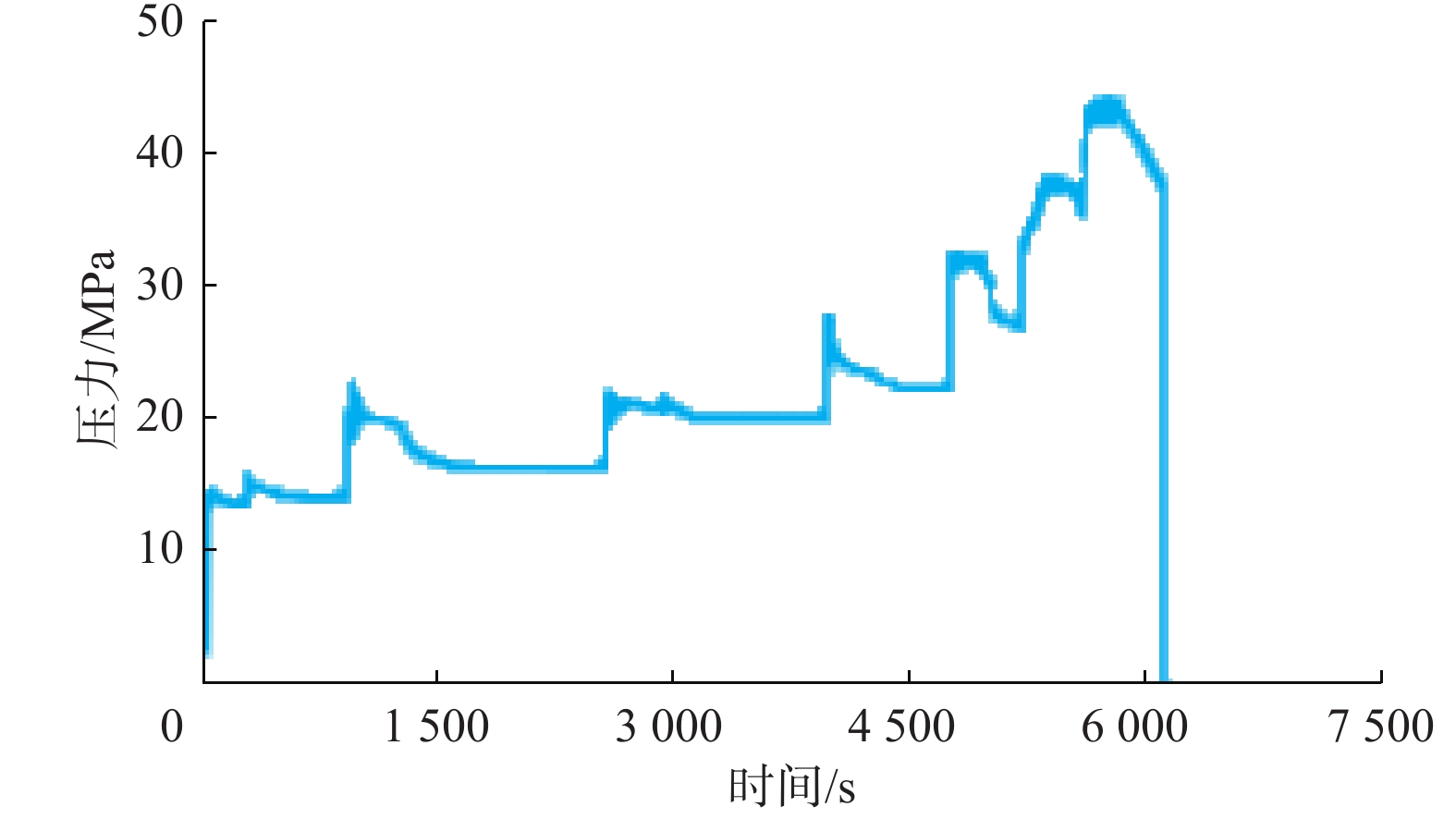

    图  5   封隔器环空封隔压力试验结果

    Figure  5.   Annular sealing pressure test results of packer

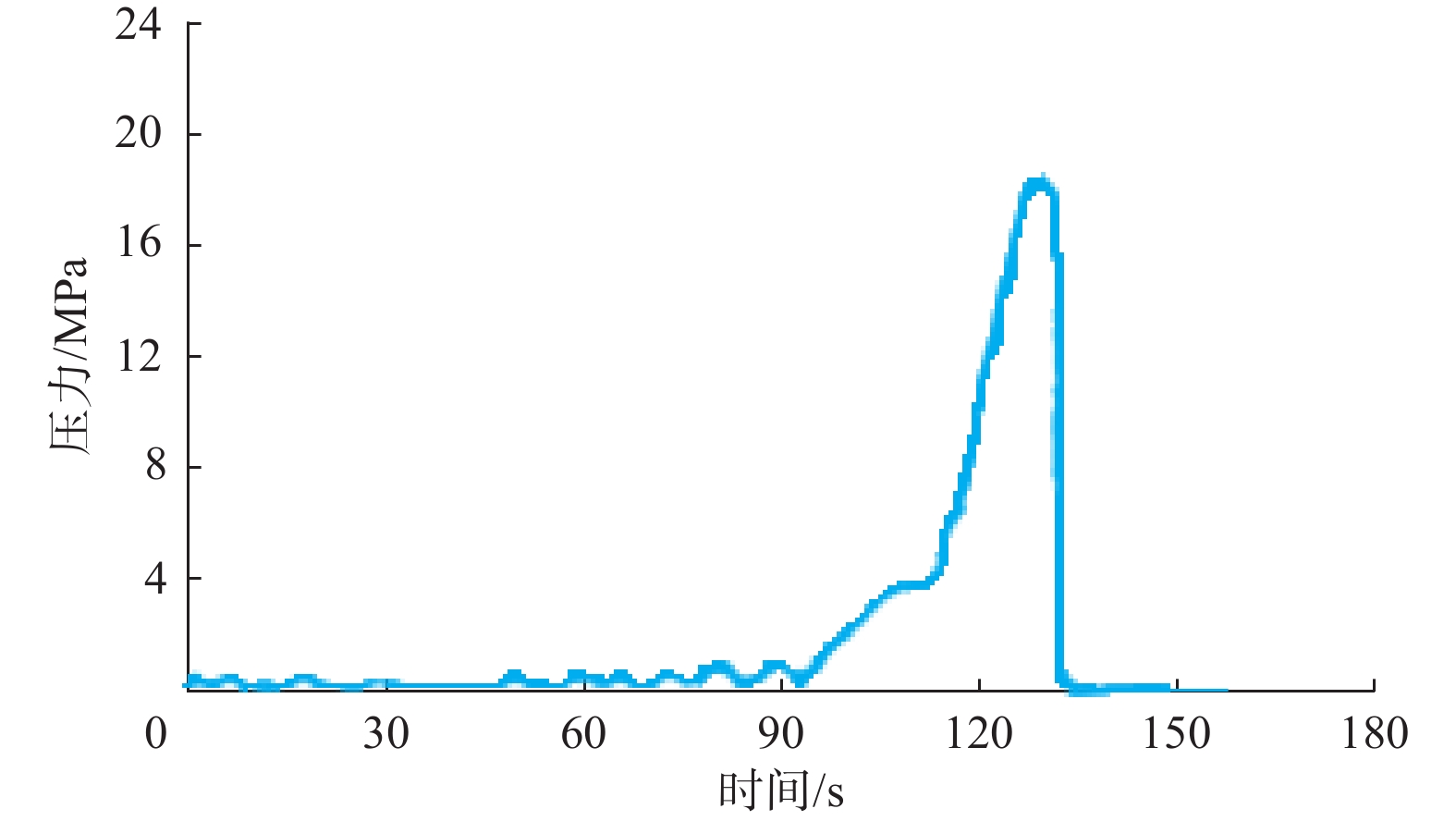

    图  6   分级箍循环孔打开压力试验结果

    Figure  6.   Opening pressure test results of circulation holes of stage cementing collar

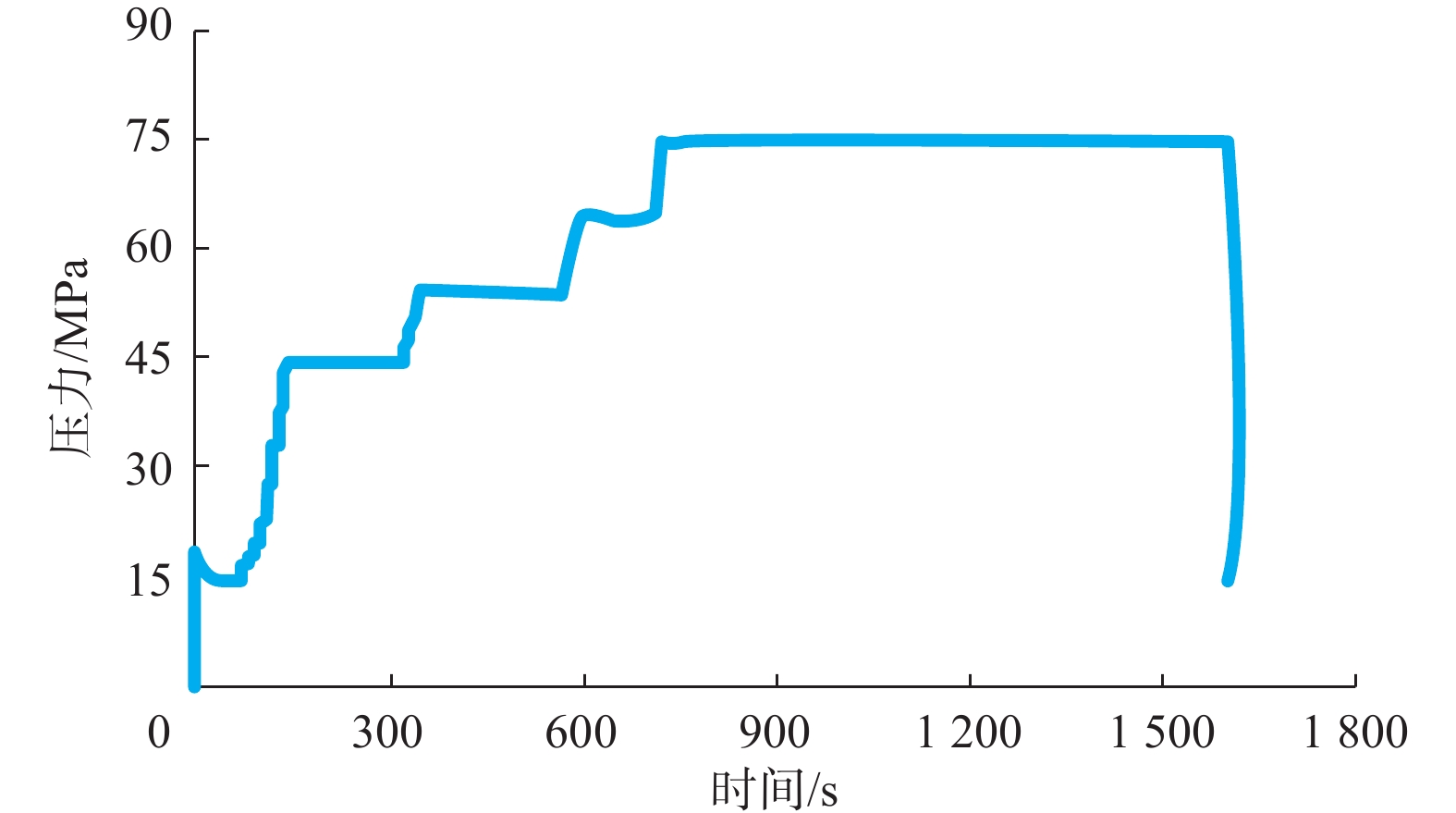

    图  7   分级箍管内密封压力试验结果

    Figure  7.   Internal sealing pressure test results of stage cementing collar

    表  1   不同规格封隔式分级箍主要性能参数

    Table  1   Main performance parameters for stage cementing collar with packer of different specifications

    套管直径/
    mm
    整机密封
    能力/MPa
    封隔器注液
    打开压力/MPa
    封隔器注液
    关闭压力/MPa
    循环孔打开
    压力/MPa
    循环孔关闭
    压力/MPa
    环空封隔
    能力/MPa
    管内密封
    能力/MPa
    胶筒长度/
    mm
    本体最大
    外径/mm
    本体内径/
    mm
    177.8357.0±0.513.0±0.515.0±0.55.0±0.520801200210156
    193.7357.0±0.513.0±0.515.0±0.55.0±0.520751200230168
    244.5357.0±0.511.0±0.514.0±0.55.0±0.535651200290220
    273.1357.0±0.511.0±0.514.0±0.55.0±0.535501200312244
    下载: 导出CSV

    表  2   封隔式分级箍在顺北油气田的应用情况统计

    Table  2   Application of stage cementing collar with packer in the Shunbei Oil & Gas Field

    年份井号二叠系井段/m套管直径/mm封隔式分级箍位置/m一级固井漏失量/m3二级固井漏失量/m3水泥环缺失长度/m
    2021SHBX-2YH3 702~4 261273.13 644.90366.50265
    2021顺北Z4X3 886~4 384193.73 651.40 00710
    2021SHBX-8H4 370~5 034273.14 356.10474.00305
    2021顺北EY2X3 458~4 030193.73 400.00374.5 23.3700
    2022SHBF-O9H4 592~5 154244.53 685.70280.00390
    2022SHBZ-O2H3 644~4 162273.13 381.20437.90370
    2022SHBE-X3H3 415~3 983273.13 008.70399.20100
    2022顺北E10X3 264~3 812273.13 013.30395.00 0
    2022顺北T1X4 104~4 711273.14 078.80265.1 6.9140
    下载: 导出CSV
