盐岩蠕变对水泥环气密封完整性影响规律研究

谢关宝, 滕春鸣, 柳华杰

谢关宝, 滕春鸣, 柳华杰. 盐岩蠕变对水泥环气密封完整性影响规律研究[J]. 石油钻探技术, 2022, 50(2): 78-84. DOI: 10.11911/syztjs.2021113
引用本文: 谢关宝, 滕春鸣, 柳华杰. 盐岩蠕变对水泥环气密封完整性影响规律研究[J]. 石油钻探技术, 2022, 50(2): 78-84. DOI: 10.11911/syztjs.2021113
XIE Guanbao, TENG Chunming, LIU Huajie. Study on the Influence of Salt Rock Creep on the Integrity of Cement Sheath Gas Seals[J]. Petroleum Drilling Techniques, 2022, 50(2): 78-84. DOI: 10.11911/syztjs.2021113
Citation: XIE Guanbao, TENG Chunming, LIU Huajie. Study on the Influence of Salt Rock Creep on the Integrity of Cement Sheath Gas Seals[J]. Petroleum Drilling Techniques, 2022, 50(2): 78-84. DOI: 10.11911/syztjs.2021113

盐岩蠕变对水泥环气密封完整性影响规律研究

基金项目: 国家自然科学基金项目“海相深层油气富集机理与关键工程技术基础研究”(编号:U19B6003)资助
详细信息
    作者简介:

    谢关宝(1977—),男,山东济宁人,2001年毕业于石油大学(华东)应用地球物理专业,2013年获中国石油大学(华东)地质资源与地质工程专业博士学位,高级工程师,主要从事测井方法研究、岩石物理试验与分析、地球物理正反演及测井资料解释等工作。E-mail:baoupc@163.com

  • 中图分类号: TE256

Study on the Influence of Salt Rock Creep on the Integrity of Cement Sheath Gas Seals

  • 摘要: 盐岩具有可溶性和可塑性,钻井及固井过程中易发生塑性变形或蠕动流动,导致井眼呈不规则形状,使套管发生变形或被挤毁,影响盐岩层段井筒气密性,从而影响油(气)井的正常生产及安全。为了给盐岩层段的井筒气密性评价提供理论依据,基于岩石物理试验及三维有限元法,分析了盐岩地层对固井一界面、二界面气密性的影响。分析得知:固井一界面对气体的密封能力强于水泥石本身的气密性,盐岩蠕变可增强固井二界面的气密封能力;盐岩层气体密封能力主要取决于固井二界面的密封能力和水泥石自身密封能力;盐岩层气体密封能力与界面接触压力呈复杂正相关性。基于分析结果,建立了固井二界面气体密封压力定量评价模型。固井二界面气体密封压力定量评价模型可评价目标区盐岩地层气密性,对其他地区类似地层固井施工也有借鉴作用。
    Abstract: Salt rocks are prone to plastic deformation or creeping flow during drilling and cementing due to their solubility and plasticity. This may result in irregular wellbores and deformed or even collapsed casings, which influences air tightness of wellbore in salt rock interval and thereby threatening the normal production and safety of oil (gas) wells. This study aimed to provide a theoretical basis for air tightness evaluations of wellbores in salt rock intervals. For this purpose, the influences of salt rock intervals on the air tightness of the first and the second interfaces in cementing were analyzed by means of petrophysical experiments and three dimensional (3D) finite element simulations. The following results are obtained: The first interface is superior to the cement stone itself in gas sealing ability, and the ability of the second interface can be enhanced from salt rock creep. The gas sealing ability of salt rock intervals is mainly depends on the sealing ability of the second interface and cement stone itself. The gas sealing ability of salt rock intervals has a complex positive correlation with interface contact pressure. A model for quantitative evaluation of gas seal pressure at the second interface in cementing was built based on the analysis results. With this model, the air tightness of salt rock intervals in target areas can be evaluated, and it can provide reference for the cementing in similar intervals in other areas.

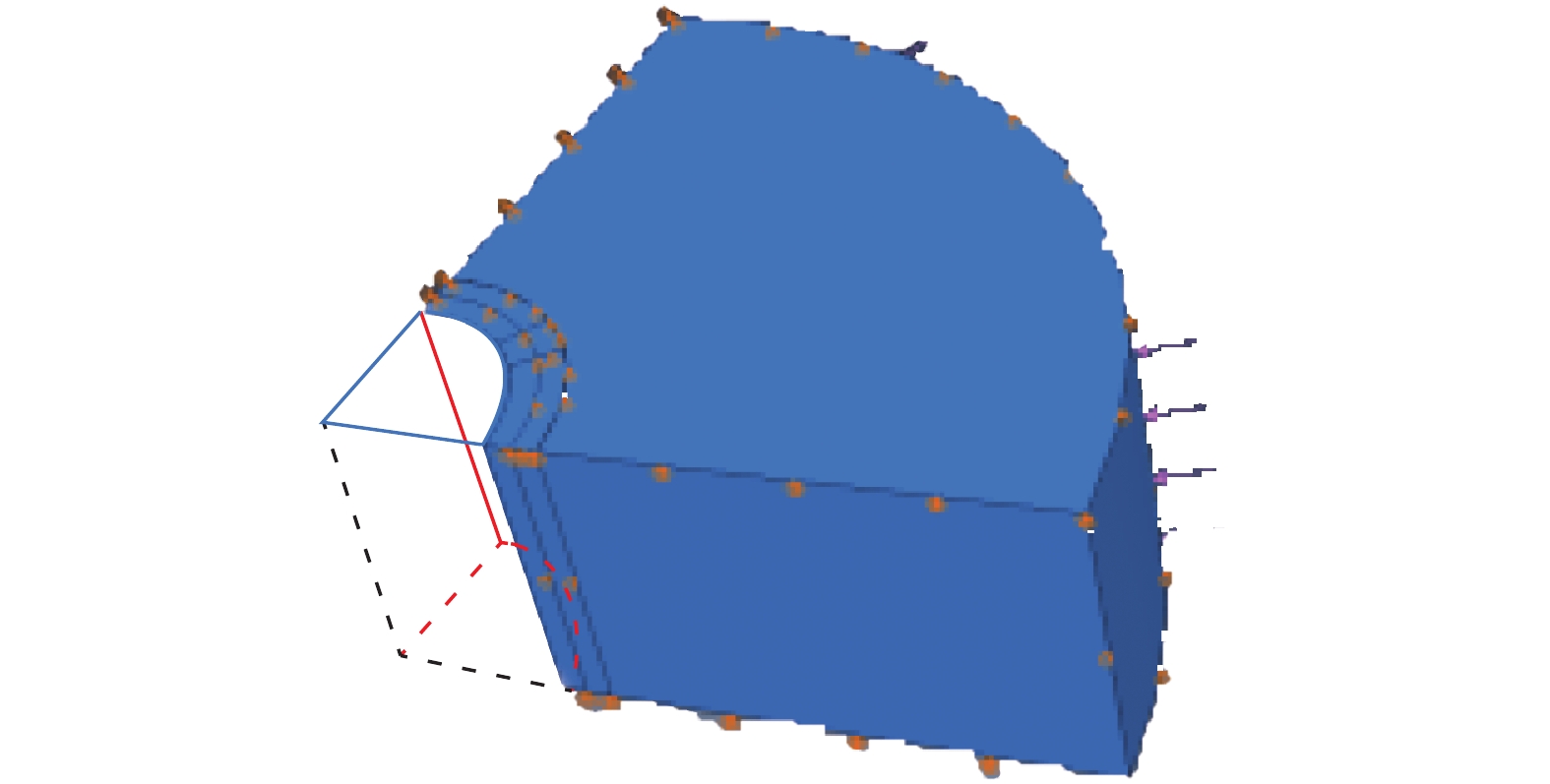

  • 图  1   盐岩–水泥环–套管三维模型

    Figure  1.   Salt rock–cement sheath–casing 3D model

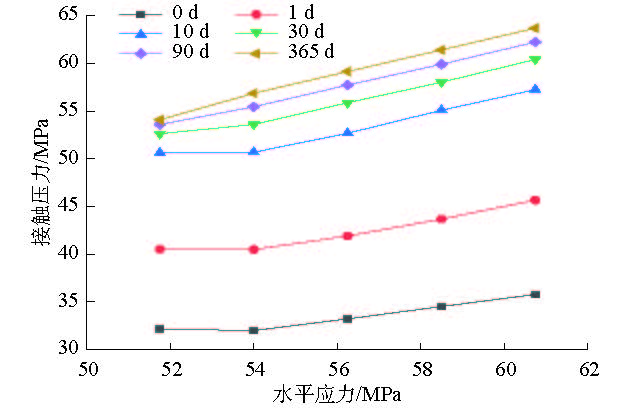

    图  2   地应力对气体密封能力的影响

    Figure  2.   Influence of in-situ stress on gas sealing ability

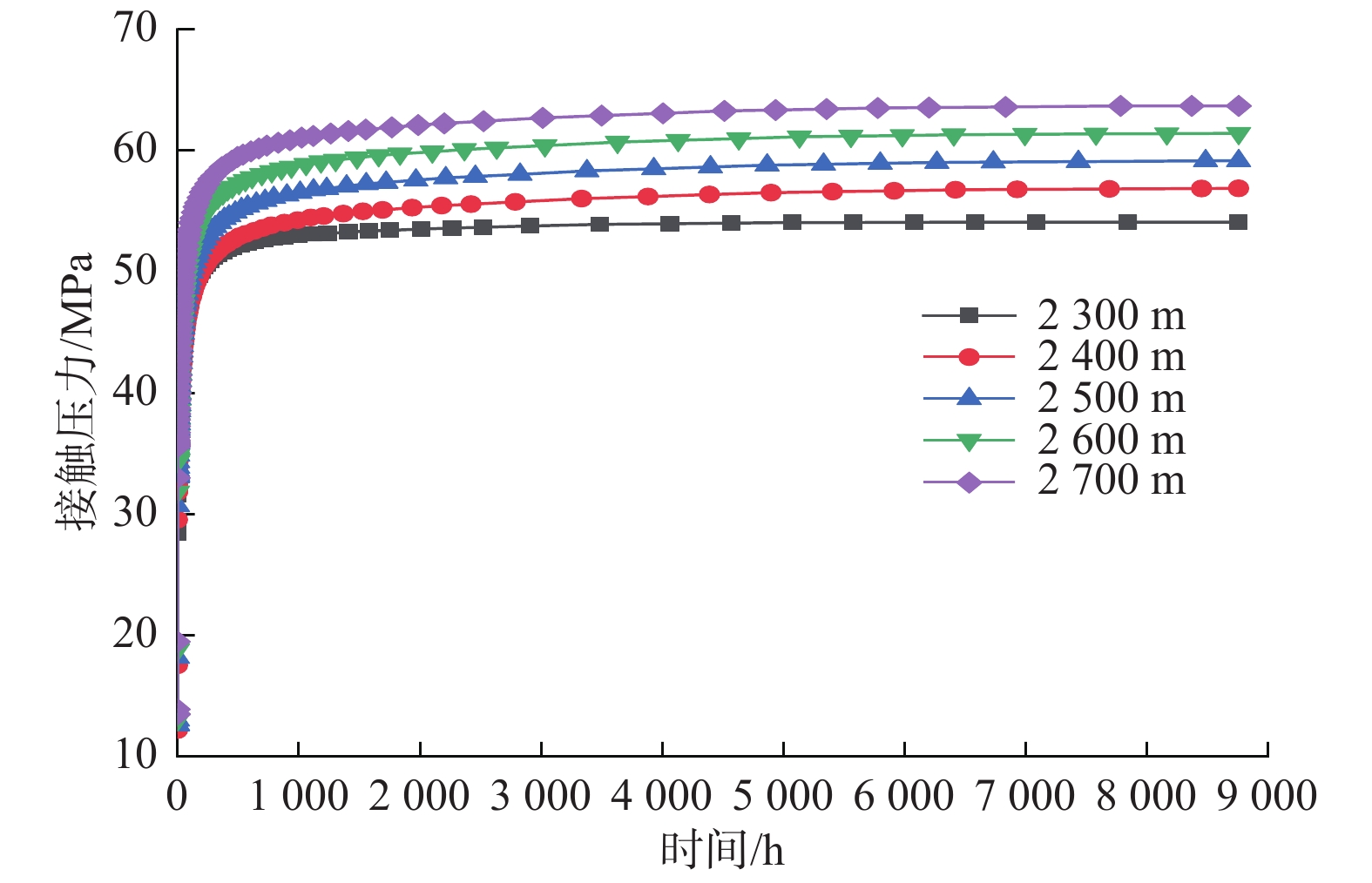

    图  3   蠕变时间对固井二界面气体密封能力的影响

    Figure  3.   Effect of creep time on gas sealing ability of the second interface in cementing

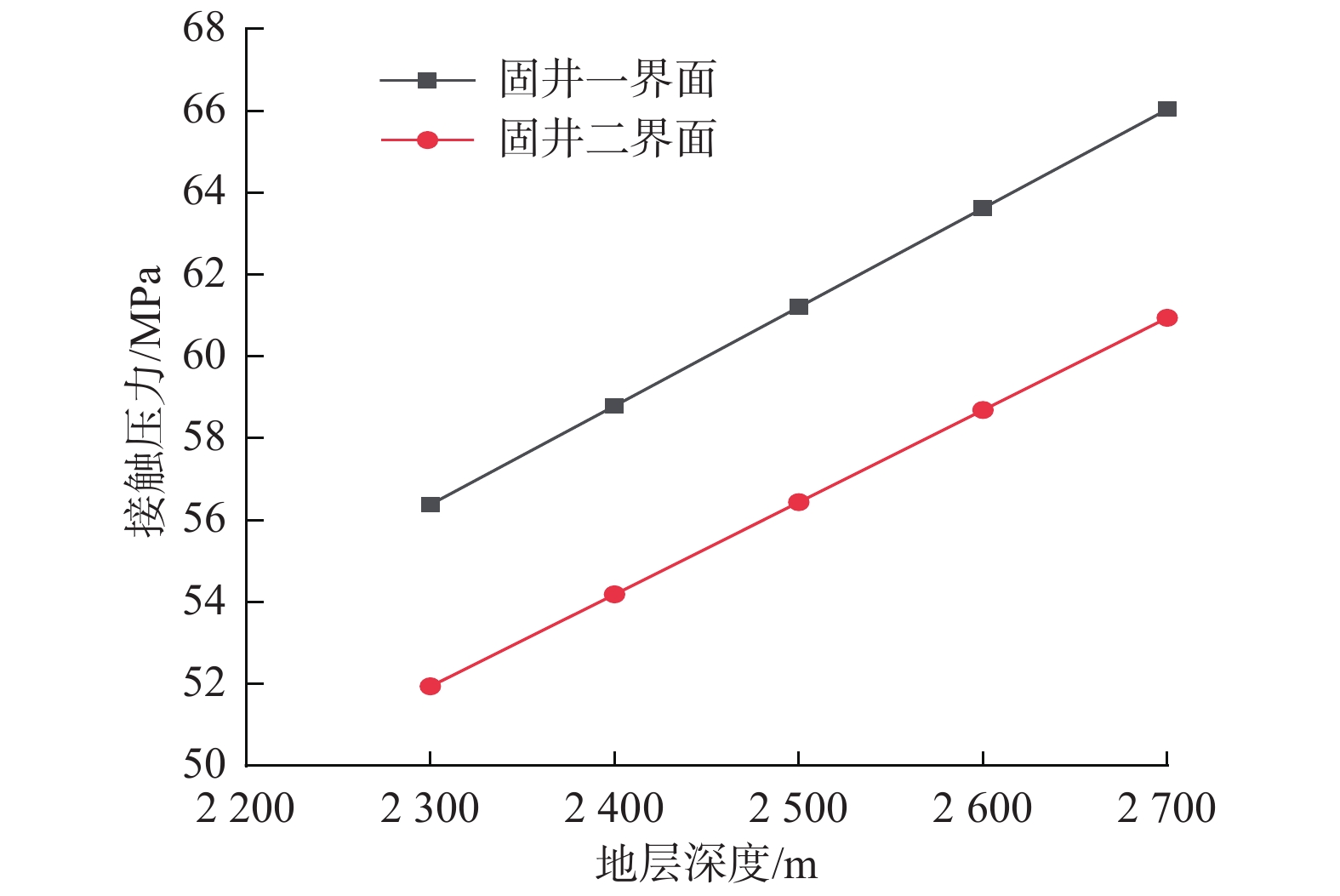

    图  4   界面气体密封能力随地层深度的变化关系

    Figure  4.   Variation of gas sealing ability of interface with depth of the formation

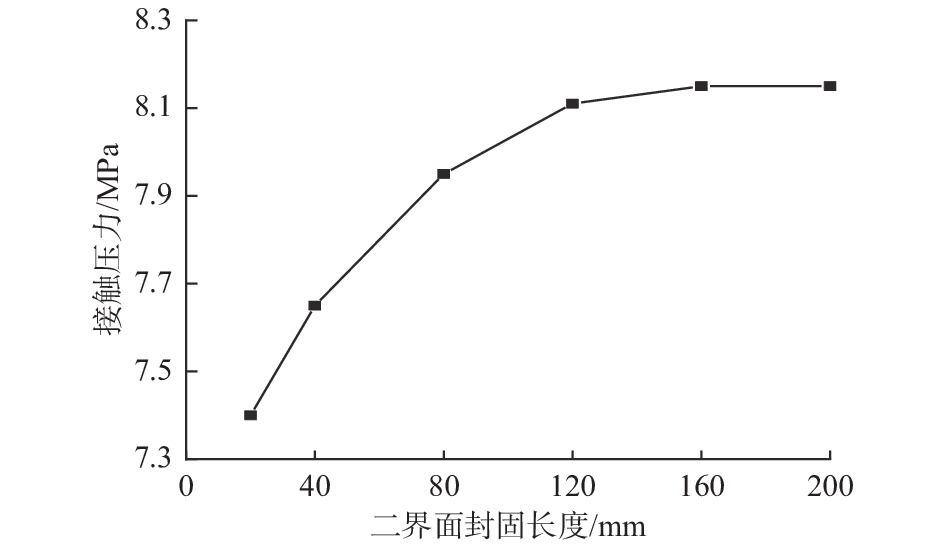

    图  5   界面接触压力随二界面封固长度的变化关系

    Figure  5.   Variation of interface contact pressure with the sealing length of the second interface

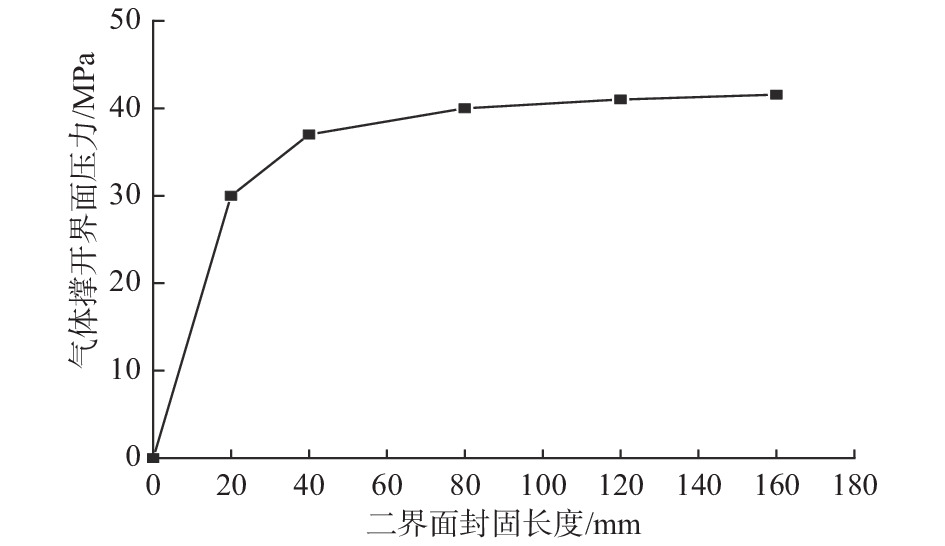

    图  6   气体撑开界面压力随二界面封固长度的变化关系

    Figure  6.   Variation of interface pressure against gas expansion with the sealing length of the second interface

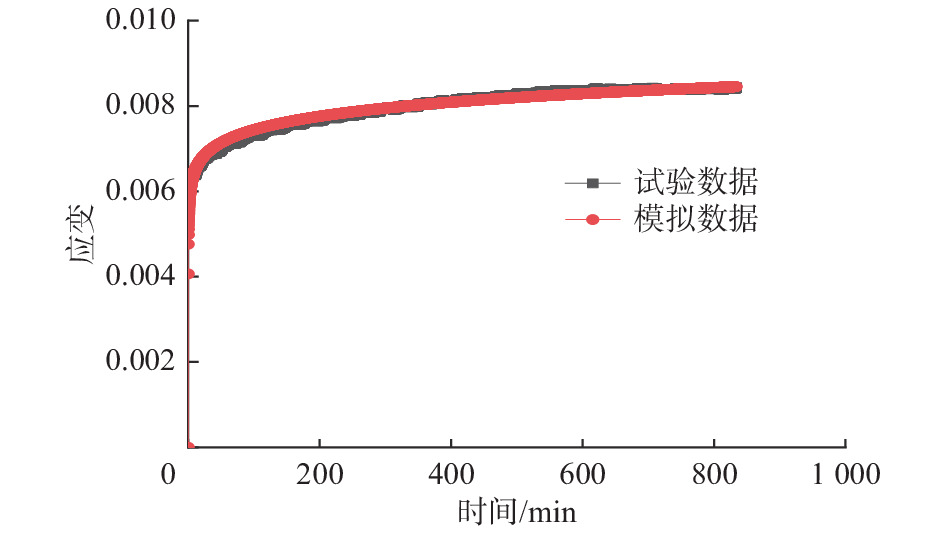

    图  7   盐岩单轴蠕变试验

    Figure  7.   Uniaxial creep test of salt rock

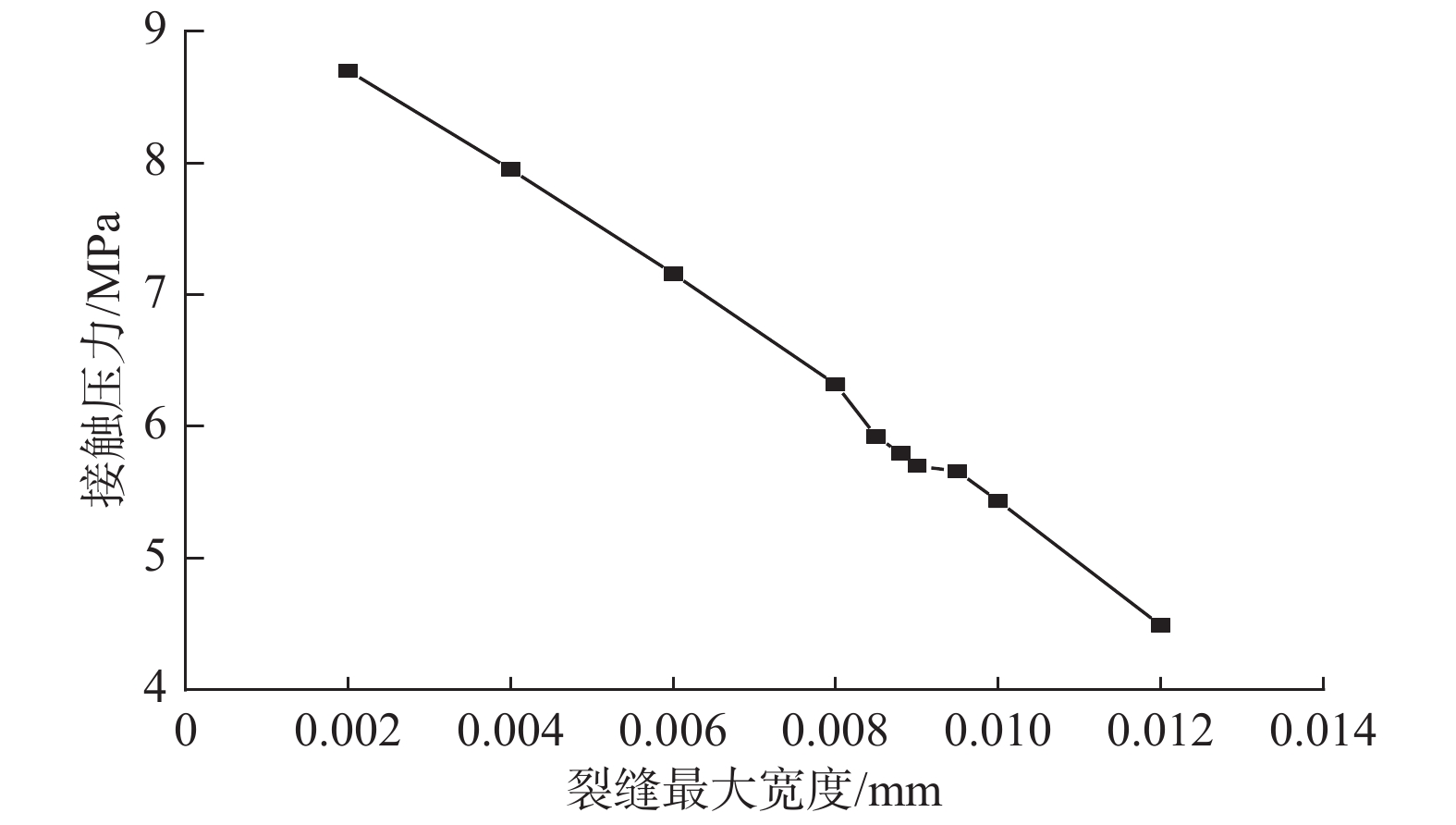

    图  8   裂缝宽度–接触压力对应关系

    Figure  8.   Relationship between fracture width and contact pressure

    图  9   WX4-3井固井质量综合评价结果

    Figure  9.   Comprehensive evaluation result of cementing quality of WX4-3 Well

    表  1   固井一界面气体密封能力

    Table  1   Gas sealing ability of the first interface of cementing

    模拟套管长度/mm密封压力/MPa接触压力/MPa
    18.9 7.201.35
    28.7 6.001.38
    39.0 9.401.98
    47.9 9.801.98
    58.210.302.02
    69.510.801.98
    78.410.002.01
    下载: 导出CSV

    表  2   固井二界面气体密封能力

    Table  2   Gas sealing ability of the second interface in cementing

    试验方案岩样围压/MPa突破压力/MPa接触压力/MPa
    方案112.00.1
    22.01.00.9
    36.04.01.9
    方案214.00.60.5
    26.02.72.6
    310.0 5.6
    方案346.07.85.7
    58.01.07.6
    下载: 导出CSV

    表  3   蠕变试验参数取值

    Table  3   Parameters of creep experiment

    试验方法 参考取值
    Anm
    单轴蠕变4.14×10–62.000–0.94
    围压蠕变3.74×10–61.8760
    下载: 导出CSV

    表  4   WX4-3井盐岩层段固井二界面密封压力

    Table  4   Sealing pressure of the second interface in cementing for the salt rock interval of Well WX4-3

    地层深度/m候凝不同时间后的固井二界面密封压力/MPa
    24 h48 h72 h600 h1000 h
    2 30039.0342.9544.7250.0350.70
    2 35040.0444.0045.7851.1451.81
    2 40040.9745.0046.8252.2852.96
    2 45071.2067.0865.2359.7159.02
    2 50043.0147.2049.0654.5555.22
    2 55043.7548.0649.9855.6456.32
    2 60044.6249.0751.0456.7657.45
    2 65045.6550.1252.1057.8758.56
    2 70046.8151.2753.2459.0059.69
    2 75047.6652.2054.2260.1060.81
    下载: 导出CSV

    表  5   WX7-7井盐岩层段固井质量评价结果

    Table  5   Cementing quality evaluation results of salt rock interval of Well WX7-7

    测井次序界面固井质量评价结果占比,%
    第一次
    (固井3 d)
    一界面0.3 7.192.6
    二界面 0.799.3
    第二次
    (固井32 d)
    一界面8.215.975.9
    二界面1.711.986.4
    第三次
    (固井47 d)
    一界面21.4 21.457.2
    二界面10.8 17.072.2
    下载: 导出CSV
