便携式岩屑声波录井系统研制与测试

王志战, 朱祖扬, 李丰波, 张元春, 张卫, 杜焕福

王志战, 朱祖扬, 李丰波, 张元春, 张卫, 杜焕福. 便携式岩屑声波录井系统研制与测试[J]. 石油钻探技术, 2020, 48(6): 109-115. DOI: 10.11911/syztjs.2020141
引用本文: 王志战, 朱祖扬, 李丰波, 张元春, 张卫, 杜焕福. 便携式岩屑声波录井系统研制与测试[J]. 石油钻探技术, 2020, 48(6): 109-115. DOI: 10.11911/syztjs.2020141
WANG Zhizhan, ZHU Zuyang, LI Fengbo, ZHANG Yuanchun, ZHANG Wei, DU Huanfu. Development and Testing of a Portable Acoustic Logging System on Cuttings[J]. Petroleum Drilling Techniques, 2020, 48(6): 109-115. DOI: 10.11911/syztjs.2020141
Citation: WANG Zhizhan, ZHU Zuyang, LI Fengbo, ZHANG Yuanchun, ZHANG Wei, DU Huanfu. Development and Testing of a Portable Acoustic Logging System on Cuttings[J]. Petroleum Drilling Techniques, 2020, 48(6): 109-115. DOI: 10.11911/syztjs.2020141

便携式岩屑声波录井系统研制与测试

基金项目: 国家自然科学基金企业创新发展联合基金项目“海相深层地层孔隙压力形成机理及预测方法探索”(编号:U19B6003-05-01)、国家自然科学基金青年基金项目“弹性波散射衰减对致密砂岩非均质性的响应机制及实验研究”(编号:41704109)、国家科技重大专项“低渗透油气藏高效开发钻完井技术”(编号:2016ZX05021-2)和中石化石油工程公司科技攻关项目“岩屑声波录井技术研究”(编号:SG18-77J)联合资助
详细信息
    作者简介:

    王志战(1969—),男,山东栖霞人,1991年毕业于西北大学岩矿及地球化学专业,2006年获西北大学矿产普查与勘探专业博士学位,教授级高级工程师,主要从事低场核磁共振技术、地层压力随钻预测和监测技术、非常规油气储层快速评价技术方面的研究工作。E-mail:wangzz.sripe@sinopec.com

  • 中图分类号: TE142,TE927

Development and Testing of a Portable Acoustic Logging System on Cuttings

  • 摘要: 为了在钻井过程中实时测量所钻地层的声波速度,在研究岩屑声波录井方法的基础上,研制了高精度的便携式岩屑声波录井系统。设计岩屑声波录井系统时,采用了具有脉冲发生器和示波器功能的一体化电路,并研制了能够快速读取、存储波形数据的软件示波器;采用了超声波透射法,通过超声波探头发射1 MHz频率的超声波,测量声波穿过岩屑样品的纵波速度和横波速度。对该系统进行了实验室比对和实钻井偶极子声波测井比对测试,结果表明,声波速度测量精度大于98.0%、岩屑声波和电缆声波数据一致性大于80.0%。利用该系统不仅可以随钻监测地层异常压力,还可以实时评价岩石的脆性、可压性、可钻性和井壁稳定性。
    Abstract: In order to measure the real-time acoustic velocity in the formation while drilling, a portable acoustic logging system on cuttings with high precision was developed based on the research of acoustic logging on cuttings. In the design of this logging system, integrated circuit of pulse generator and oscilloscope was adopted. In addition, software functioning as oscilloscope that could quickly read and store waveform data was studied for this system. By using the ultrasonic transmission method, an ultrasonic probe was used to emit ultrasonic waves with 1 MHz frequency to measure the P-wave velocity and S-wave velocity of the acoustic wave passing through cuttings samples. Results comparisons were conducted on both the laboratory test and the dipole acoustic logging in actual drilling. The results showed that the accuracy of acoustic velocity measurement was more than 98.0%, and the consistency of acoustic logging data of cuttings and wireline acoustic data was greater than 80.0%. This system could not only be used to monitor abnormal formation pressure while drilling, but also to evaluate rock brittleness, compressibility, drillability and wellbore stability in real time.
  • 图  1   钻井岩屑运移示意

    Figure  1.   Schematic diagram of cuttings migration while drilling

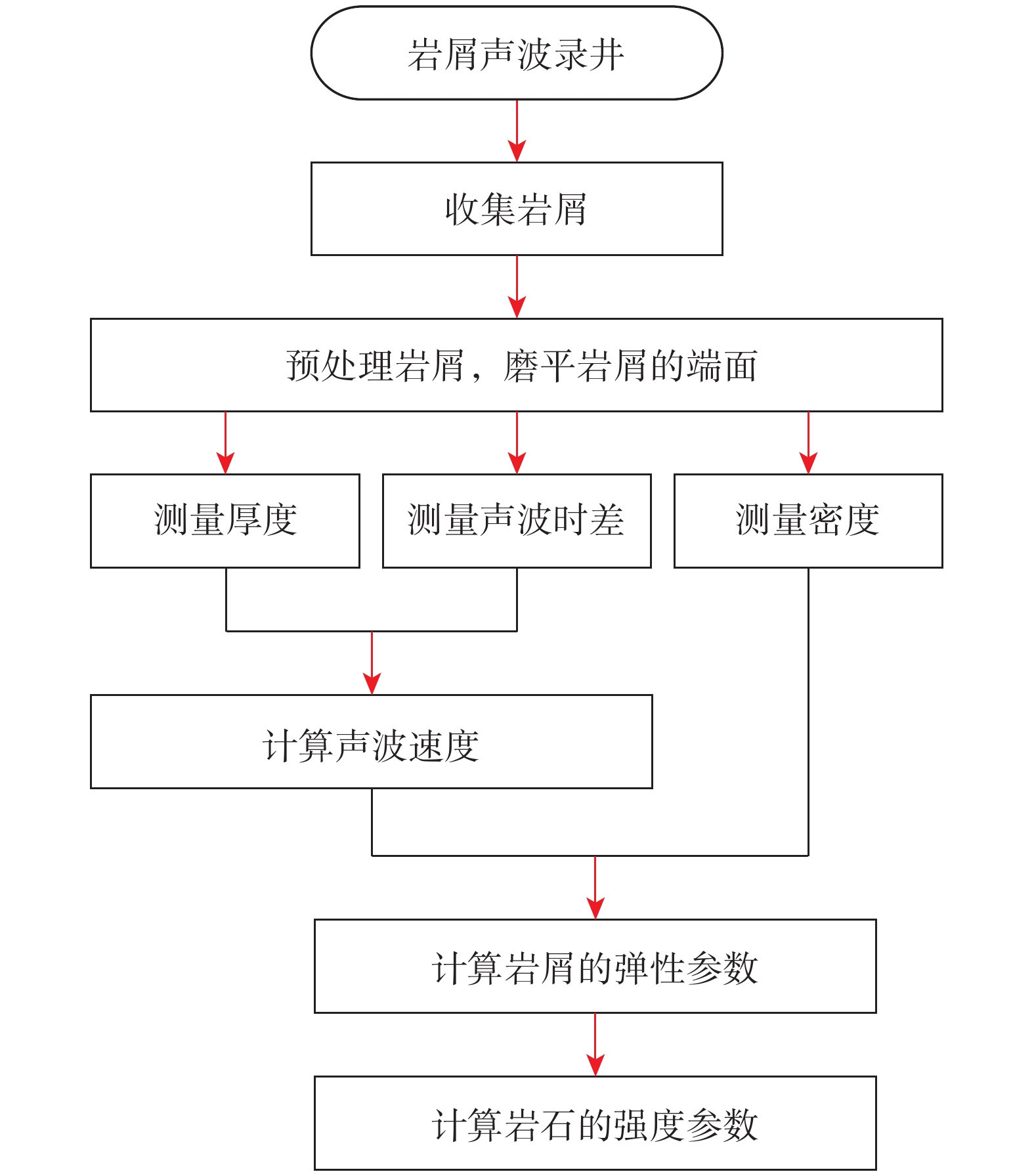

    图  2   岩屑声波录井流程

    Figure  2.   The process of acoustic logging on cuttings

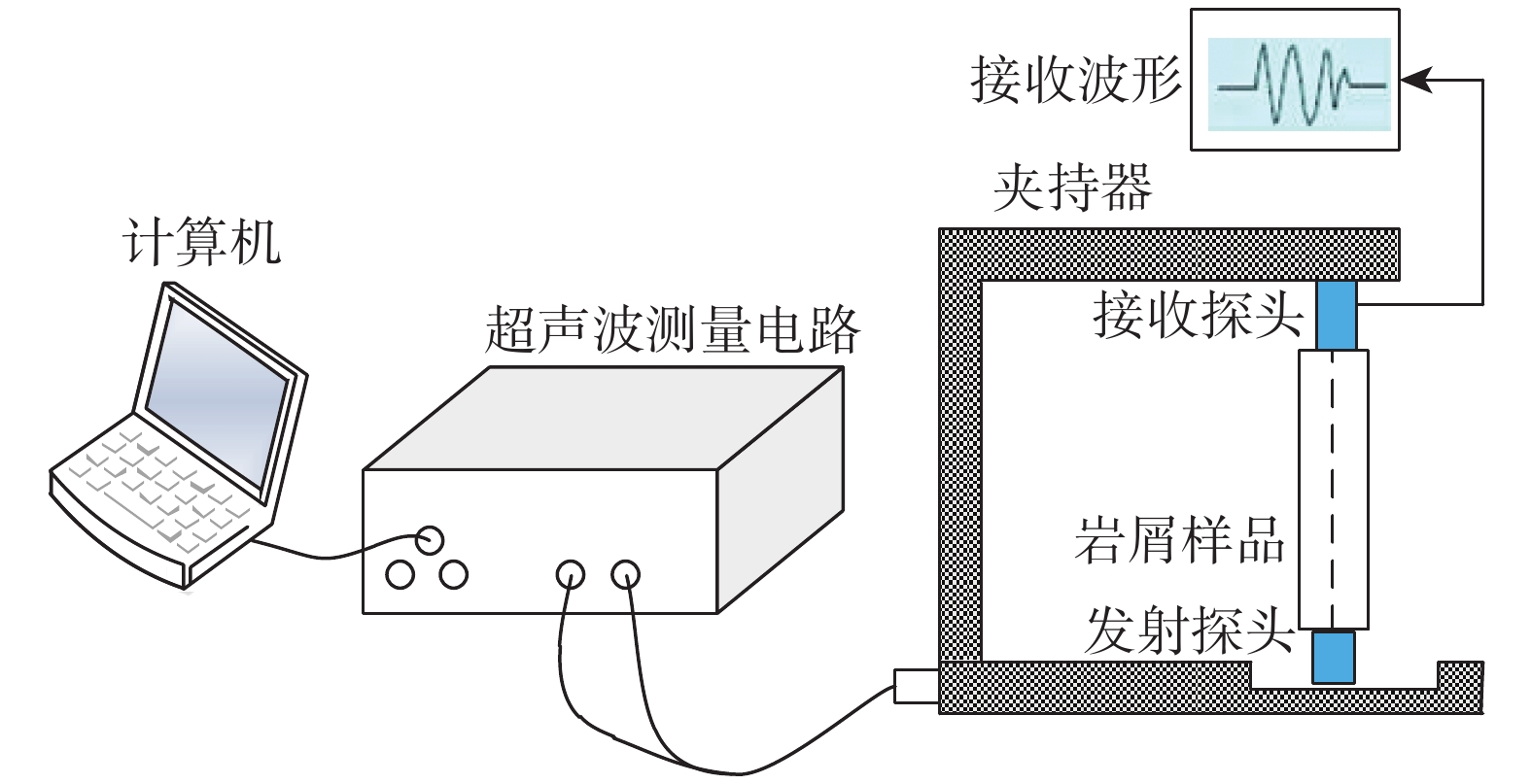

    图  3   岩屑声波录井系统

    Figure  3.   Acoustic logging system on cuttings

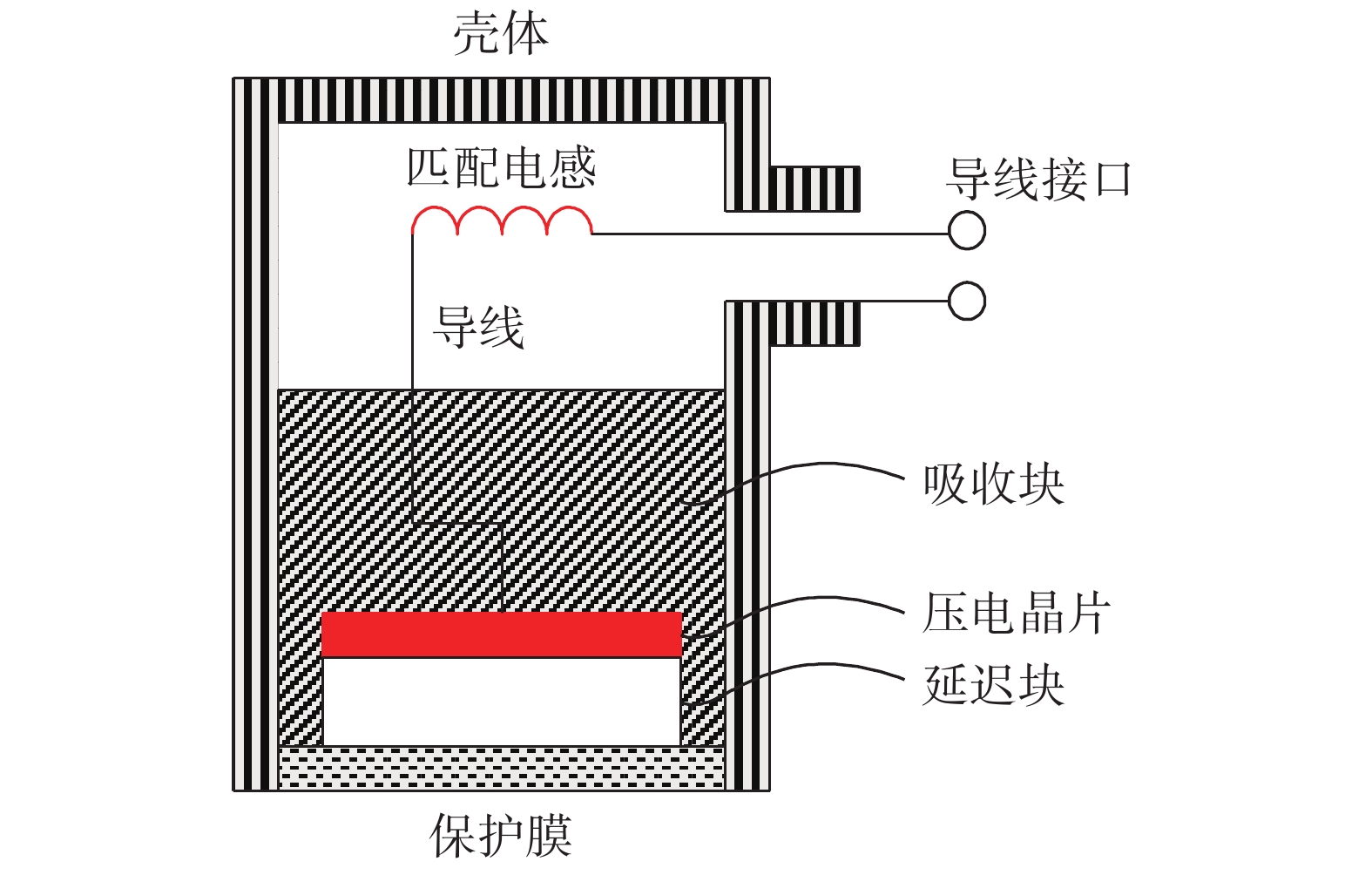

    图  4   超声波探头结构

    Figure  4.   Structure of ultrasonic probe

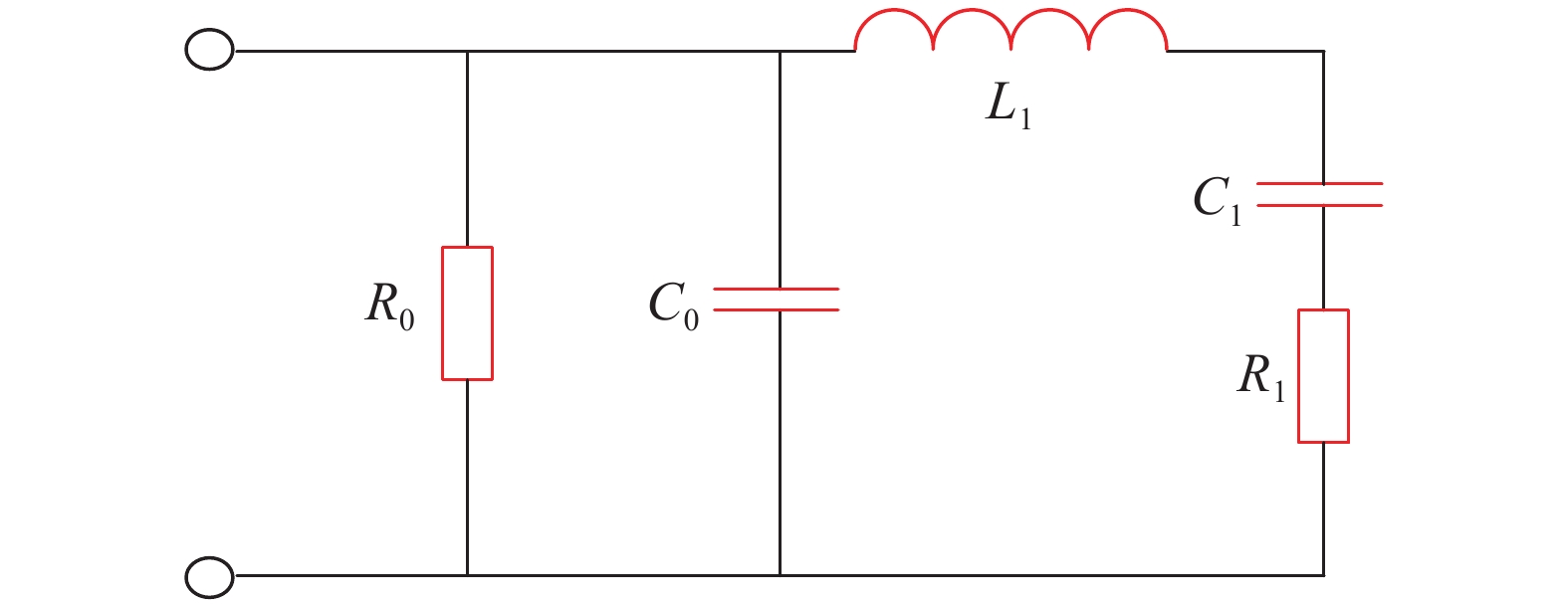

    图  5   超声波探头等效电路

    Figure  5.   Equivalent circuit of ultrasonic probe

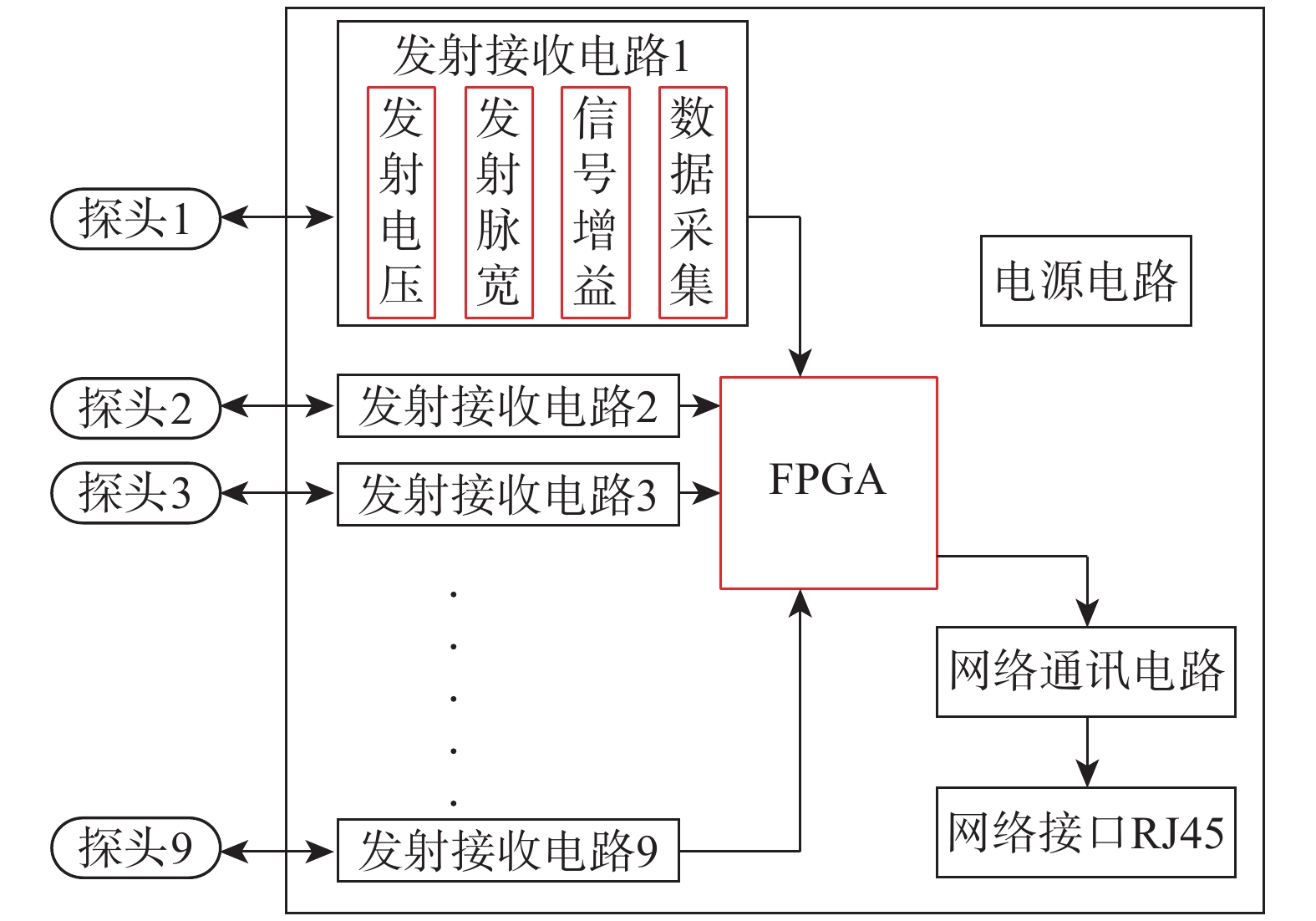

    图  6   超声波测量电路结构

    Figure  6.   Structure of ultrasonic measurement circuit

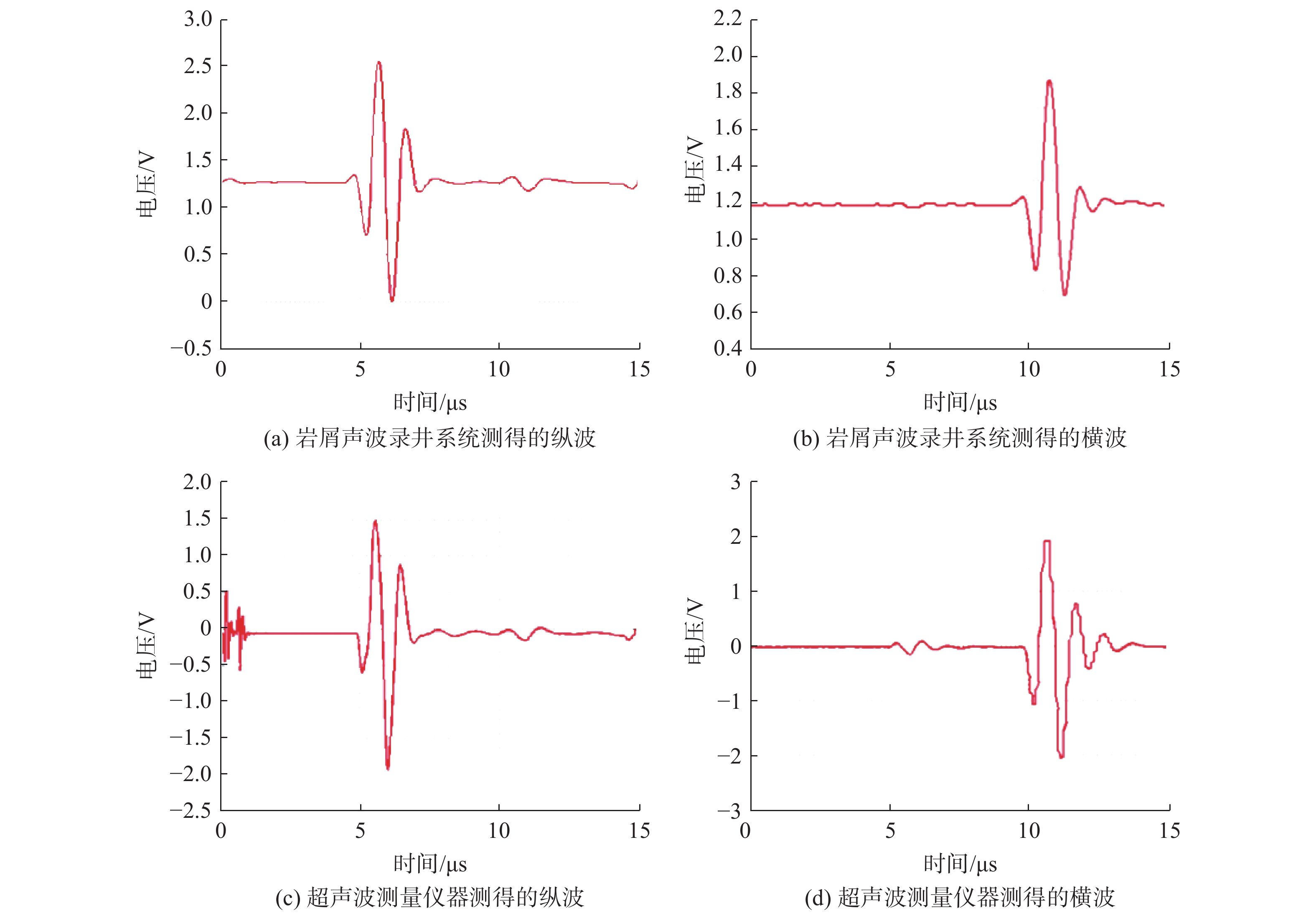

    图  7   两种仪器测量的声波在铝块中的波形

    Figure  7.   Comparison of acoustic waveforms in aluminum block measured by two types of instruments

    图  8   岩屑声波测量值与测井值对比

    Figure  8.   Comparison between data from acoustic logging on cuttings and mud logging

    表  1   数据协议格式

    Table  1   Data protocol format

    序号命令头操作代号信息长度/byte输入信息说明
    1A1B2C3D40000000A0000000400000XXX设置发射接收通道:0~9个通道
    2A1B2C3D40000000B0000000400000XXX设置发射探头类型:0为单晶,1为双晶
    3A1B2C3D40000000C0000000400000XXX发射电压:XXX伏特
    4A1B2C3D40000000D0000000400000XXX发射脉宽:XXX ns
    5A1B2C3D40000000E0000000400000XXX信号增益:XXX倍数
    6A1B2C3D40000000F0000000400000XXX数据采集时长:XXX个10 ns
    7A1B2C3D40000000G0000000400000XXX重复周期:XXX个10 μs
    8A1B2C3D40000000H0000000400000XXX发射阻尼:0为50 Ω,1为200 Ω
    9A1B2C3D40000000I0000000400000XXX接收阻尼:0为50 Ω,1为200 Ω
    1000000XXX延迟时间:XXX个10 ns
    下载: 导出CSV

    表  2   软件采样频率

    Table  2   Software sampling frequency

    序号预设波形采集时长/μs波形数据数量硬件采样频率/MHz软件采样频率/MHz实际波形采集时长/μs备注
    1 1896100100.00 8.96探头频率小于20 MHz
    2 5896100100.00 8.96探头频率小于20 MHz
    3 10896100 89.60 10.00探头频率小于15 MHz
    4 20896100 44.80 20.00探头频率小于10 MHz
    5 50896100 17.92 50.00探头频率小于4 MHz
    6100896100 8.96100.00探头频率小于2 MHz
    7200896100 4.48200.00探头频率小于1 MHz
    下载: 导出CSV
