Effect of Irregular Wellbores on Well Deviation in Air Drilling Through Thick Conglomerate Formations
-
摘要: 直井易斜和下套管困难是巨厚砾石层气体钻井存在的2个亟需解决的问题。现场测试数据表明，即使使用普遍认为具有较好控斜效果的空气锤钻井技术，井斜控制依然困难，且井筒的规则性很差，这很难用现有的控斜理论解释。现有底部钻具组合（BHA）受力模型均未考虑井筒的不规则性，都假设井筒光滑规则。为此，基于现场实测数据，利用有限元方法建立了BHA与不规则井筒相互作用的力学模型，分析了井筒不规则性对BHA受力特征的影响。模型分析表明，不规则井筒易形成附加支点，缩短有效钟摆长度，使降斜力大幅减小，甚至可能使钻头侧向力成为增斜力，造成井斜控制失败。实例分析证实，巨厚砾石层采用气体钻井时，预弯钟摆BHA所钻井筒相对较为规则，控斜效果好，下套管作业顺利。现场实测数据间接证明了井筒不规则性对井斜存在重要影响，BHA力学分析时应考虑井筒的不规则性。Abstract: Proneness to well deviation and difficulty in casing running are two bottlenecks to be solved urgently in air drilling through the thick conglomerate formation. Field test data revealed that well deviation control was still challenging even air hammer drilling with a marked control effect on deviation was adopted, and wellbore regularity was poor. This phenomenon is difficult to explain with present theories of deviation control. Existing bottom hole assembly (BHA) force models do not consider the irregularity of the wellbore, and assume that the wellbore is smooth and regular. In this paper, the mechanical model of interaction between the irregular wellbore and BHA was built with finite element method on the basis of field data, and the influence of wellbore irregularity on the mechanical characteristics of BHA was analyzed. The model results demonstrate that the irregular wellbore is easy to form additional fulcrum and shorten the swing distance of pendulum BHA, thus greatly reducing deviation-reducing force. It may even convert the lateral force on the drill bit into a deviation-increasing force, resulting in well deviation control failure. It is confirmed by case analysis that the wellbore drilled by the pre-bent pendulum BHA is regular in air drilling through the thick conglomerate formation, with effective well deviation control and smooth running of casing. Field data indirectly supports the significant impact of wellbore irregularity on well deviation, which should be considered in the BHA mechanical analysis.
-
-
![]()

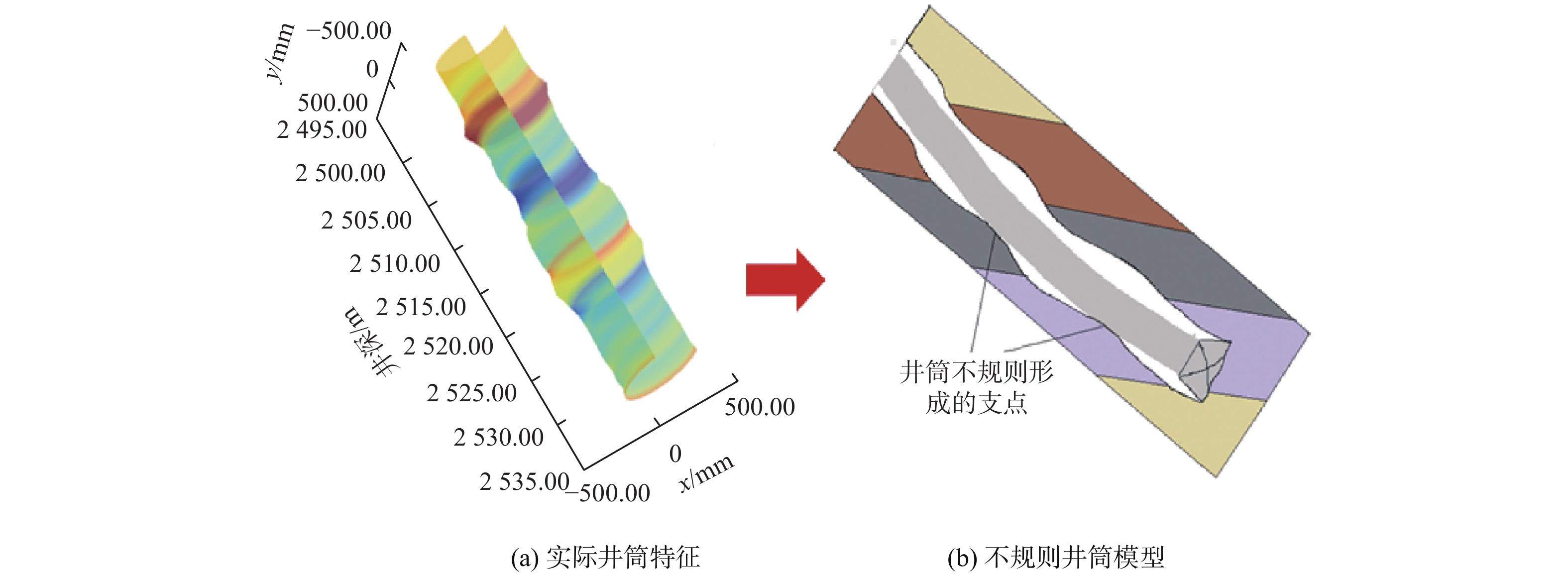

图 1 BHA与不规则井筒相互作用物理模型
Figure 1. Physical model of interaction between the BHA and the irregular wellbore
![]()

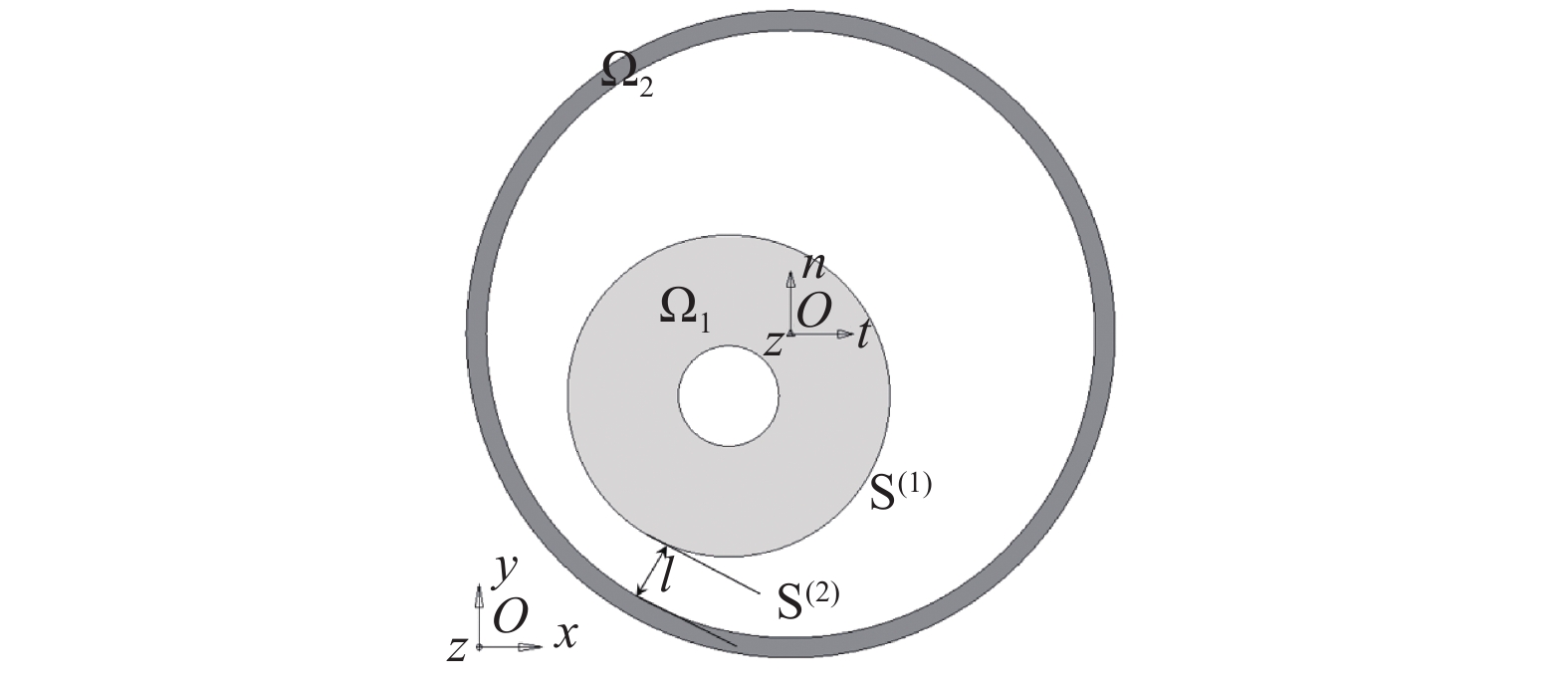

图 2 钻柱井壁摩擦接触模型
Figure 2. Frictional contact model between the drill string and the sidewall
![]()

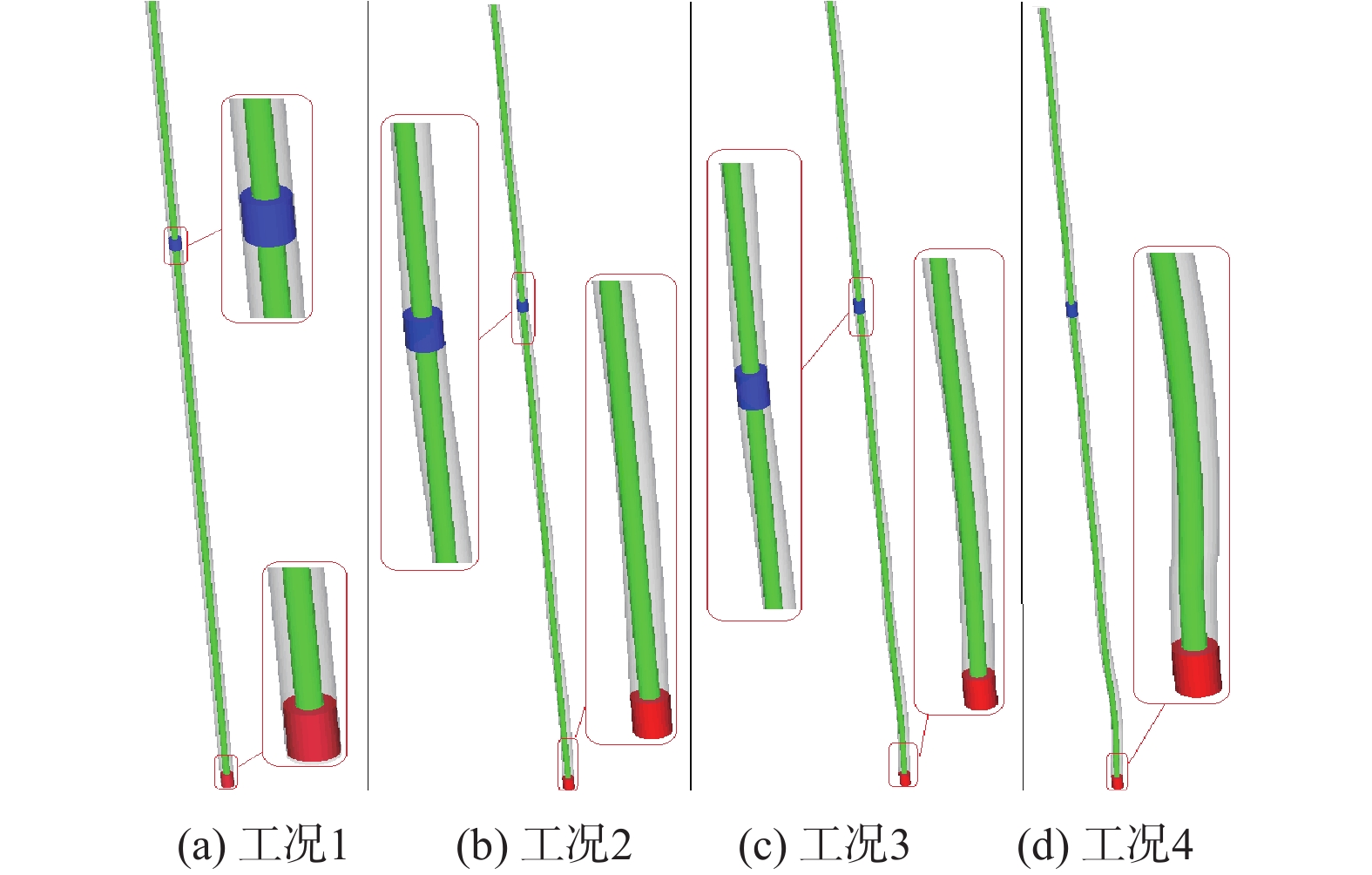

图 3 BHA与井筒相互作用有限元计算模型
Figure 3. Finite element model of interaction between the BHA and the wellbore
![]()
图 4 不同工况下的钻头侧向力矢量图
Figure 4. Vector diagram of lateral force on the bit in different cases
![]()

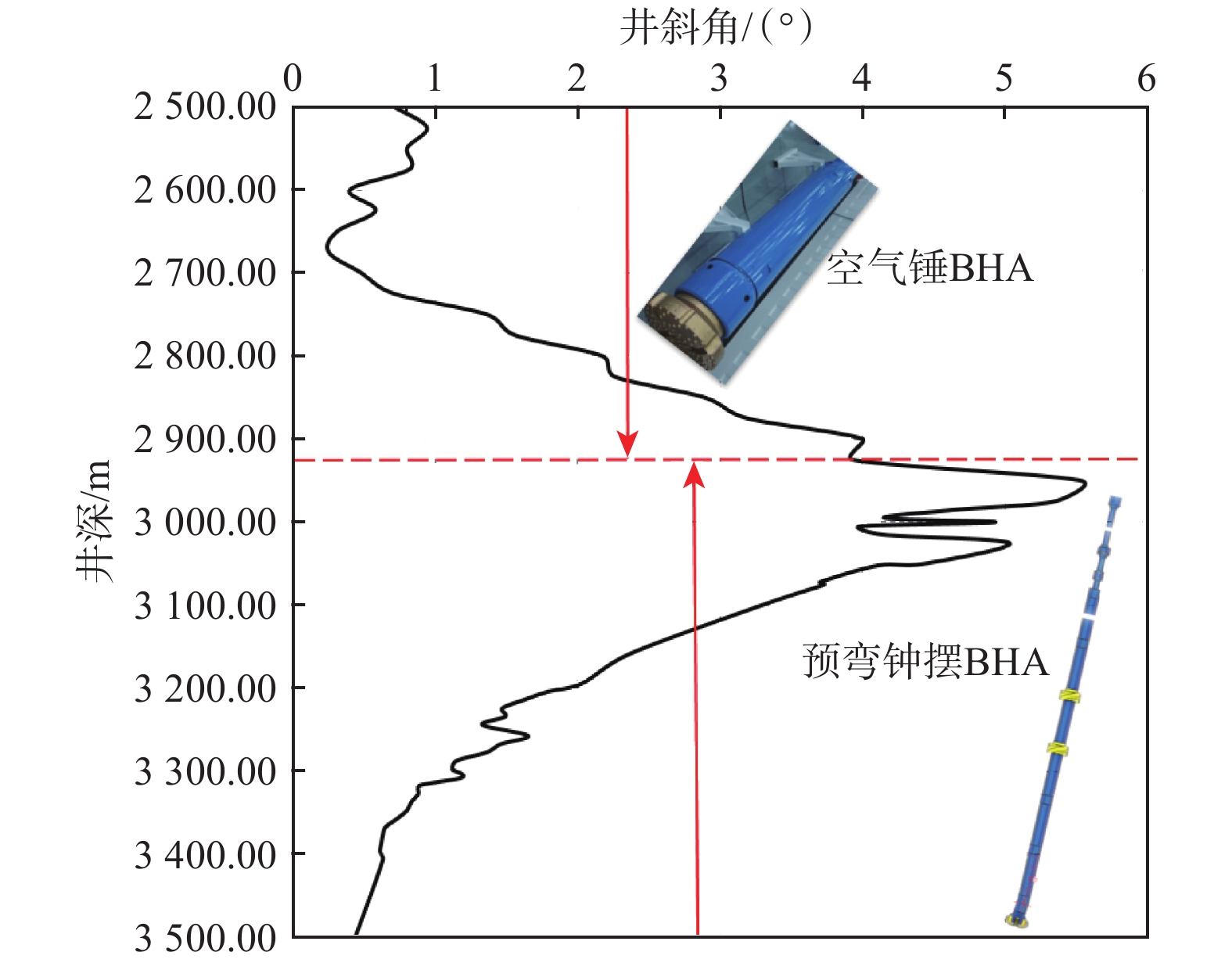

图 5 某井钻进砾岩地层时井斜角随井深的变化情况
Figure 5. Variation of the deviation angle with well depth during drilling of a well in the conglomerate formation
表 1 钻头对井筒的作用力
Table 1 Force of the bit on the wellbore
工况 x方向作用力/N y方向作用力/N z方向作用力/N 1 –1 708.50 –17.80 –150.50 2 –998.30 –3.30 –87.70 3 –0.10 0.01 0.01 4 7 435.70 56.30 595.50
下载: 导出CSV
-
[1] 肖洲,吴俊,颜小兵,等. 气体钻井技术的发展趋势与新技术探讨[J]. 钻采工艺,2014,37(5):5–7. doi: 10.3969/J.ISSN.1006-768X.2014.05.02 XIAO Zhou, WU Jun, YAN Xiaobing, et al. Development trend of gas drilling and discussion on new gas drilling techniques[J]. Drilling & Production Technology, 2014, 37(5): 5–7. doi: 10.3969/J.ISSN.1006-768X.2014.05.02
[2] 刘伟,何龙,胡大梁,等. 川南海相深层页岩气钻井关键技术[J]. 石油钻探技术,2019,47(6):9–14. doi: 10.11911/syztjs.2019118 LIU Wei, HE Long, HU Daliang, et al. Key technologies for deep marine shale gas drilling in Southern Sichuan[J]. Petroleum Drilling Techniques, 2019, 47(6): 9–14. doi: 10.11911/syztjs.2019118
[3] 叶金龙,沈建文,吴玉君,等. 川深1井超深井钻井提速关键技术[J]. 石油钻探技术,2019,47(3):121–126. doi: 10.11911/syztjs.2019056 YE Jinlong, SHEN Jianwen, WU Yujun, et al. Key techniques of drilling penetration rate improvement in ultra-deep Well Chuanshen-1[J]. Petroleum Drilling Techniques, 2019, 47(3): 121–126. doi: 10.11911/syztjs.2019056
[4] 杜劲,尹松,闫伟,等. 国内外井斜控制技术的发展[J]. 机械工程师,2007(2):22–24. doi: 10.3969/j.issn.1002-2333.2007.02.013 DU Jin, YIN Song, YAN Wei, et al. The development of well deviation technique at home and abroad[J]. Mechanical Engineer, 2007(2): 22–24. doi: 10.3969/j.issn.1002-2333.2007.02.013
[5] 张辉,高德利,段明星. 气体钻井井斜机理研究[J]. 石油天然气学报,2012,34(2):103–105, 109. doi: 10.3969/j.issn.1000-9752.2012.02.022 ZHANG Hui, GAO Deli, DUAN Mingxing. Research on the mechanism of hole deviation in gas drilling[J]. Journal of Oil and Gas Technology, 2012, 34(2): 103–105, 109. doi: 10.3969/j.issn.1000-9752.2012.02.022
[6] 刘彪,杨明合,钟文健,等. 空气钻井井斜因素分析及工艺应用[J]. 断块油气田,2009,16(2):120–123. LIU Biao, YANG Minghe, ZHONG Wenjian, et al. Factors of affecting borehole deviation for air drilling and the technical application[J]. Fault-Block Oil & Gas Field, 2009, 16(2): 120–123.
[7] 邓柯,刘殿琛,李宬晓. 预弯曲动力学井斜控制技术在长宁构造气体钻井中的应用[J]. 钻采工艺,2020,43(2):38–40. DENG Ke, LIU Dianchen, LI Chengxiao. Application of pre-bending dynamic well inclination control technology in gas drilling in Changning Structure[J]. Drilling & Production Technology, 2020, 43(2): 38–40.
[8] 狄勤丰,胡菲菲,周波,等. 气体钻井预弯曲钟摆钻具控斜的动力学行为[J]. 天然气工业,2019,39(7):94–98. doi: 10.3787/j.issn.1000-0976.2019.07.012 DI Qinfeng, HU Feifei, ZHOU Bo, et al. Dynamic behaviors of deviation control of the prebent pendulum BHA in gas drilling[J]. Natural Gas Industry, 2019, 39(7): 94–98. doi: 10.3787/j.issn.1000-0976.2019.07.012
[9] 曾桂元,代锋,荆华,等. 元坝地区气体钻井井斜控制技术与应用[J]. 钻采工艺,2015,38(1):29–31. doi: 10.3969/J.ISSN.1006-768X.2015.01.08 ZENG Guiyuan, DAI Feng, JING Hua, et al. Measures of borehole deviation control during gas drilling in Yuanba Area[J]. Drilling & Production Technology, 2015, 38(1): 29–31. doi: 10.3969/J.ISSN.1006-768X.2015.01.08
[10] GAO Deli, ZHENG Deshuai. Study of a mechanism for well deviation in air drilling and its control[J]. Petroleum Science & Technology, 2011, 29(4): 358–365.
[11] ZHAO Zengxin, GAO Deli, ZHENG Deshuai. Mechanism of well deviation in air drilling and its control[R]. SPE 130201, 2010.
[12] ZHANG He, DI Qinfeng, WANG Wenchang, et al. Lateral vibration analysis of pre-bent pendulum bottomhole assembly used in air drilling[J]. Journal of Vibration and Control, 2018, 24(22): 5213–5224. doi: 10.1177/1077546317747778
[13] 狄勤丰,王春生,李宁,等. 巨厚砾岩层气体钻井井眼特征[J]. 石油学报,2015,36(3):372–377. doi: 10.7623/syxb201503013 DI Qinfeng, WANG Chunsheng, LI Ning, et al. Wellbore characteristic of gas drilling in thicker conglomerate[J]. Acta Petrolei Sinica, 2015, 36(3): 372–377. doi: 10.7623/syxb201503013
[14] 张鹤,狄勤丰,覃光煦,等. 预弯底部钻具组合横向振动响应的快速求解[J]. 石油学报,2017,38(12):1441–1447. doi: 10.7623/syxb201712012 ZHANG He, DI Qinfeng, QIN Guangxu, et al. Quick solution method for lateral vibration response of pre-bent bottom hole assembly[J]. Acta Petrolei Sinica, 2017, 38(12): 1441–1447. doi: 10.7623/syxb201712012
[15] KAMEL J M, YIGIT A S. Modeling and analysis of stick-slip and bit bounce in oil well drillstrings equipped with drag bits[J]. Journal of Sound and Vibration, 2014, 333(25): 6885–6899. doi: 10.1016/j.jsv.2014.08.001
[16] HUU T N. Study on dynamic stability of drilling string for improved bottom hole assembly and operating drilling parameters to drill wells in the basement[R]. IADC/SPE 180501, 2016.
[17] LIU Yongsheng, GAO Deli. A nonlinear dynamic model for characterizing downhole motions of drill-string in a deviated well[J]. Journal of Natural Gas Science and Engineering, 2017, 38: 466–474. doi: 10.1016/j.jngse.2017.01.006
[18] 张洪武, 关振群, 李云鹏, 等. 有限元分析与CAE技术基础[M]. 北京: 清华大学出版社, 2004: 54-55. ZHANG Hongwu, GUAN Zhenqun, LI Yunpeng, et al. Finite element analysis and CAE technology foundation[M]. Beijing: Tsinghua University Press, 2004: 54-55.
-
