Cementing Technology of a Self-Healing Cement Slurry in the Carbonate Formations in the Well Manshen 1
-
摘要: 满深1井三开钻遇破碎性碳酸盐岩地层，井壁掉块严重，井径不规则，且目的层油气显示活跃，三开尾管固井时顶替效率低，压稳和防漏矛盾突出。为确保该井三开固井施工安全顺利，并保障固井质量，通过选用自愈合剂BCY-200S和与其配伍性好的水泥添加剂，形成了自愈合水泥浆，并针对下套管和固井时容易发生漏失的问题，在根据前期施工情况准确判断漏层位置的基础上，采用了正注反挤固井工艺。满深1井三开碳酸盐岩地层采用自愈合水泥浆和正注反挤固井工艺后，固井作业安全顺利，既封固了产层，后期作业中也未出现环空气窜现象。研究和实践表明，自愈合水泥石遇油气可自动修复微裂缝，达到封固产层的目的，可解决塔里木油田高压天然气井环空带压及层间窜流的问题。Abstract: During the drilling of the fractured carbonate formation in the third spud of Well Manshen 1, serious problems were encountered such as severe sloughing of the borehole wall, irregular hole diameters, active oil and gas shows of the target layer, low displacement efficiency during tri-liner cementing, and prominent contradiction between pressure stabilization and lost circulation control. In order to ensure the safe and smooth cementing operation of the third spud of the well and guarantee the cementing quality, a self-healing cement slurry was prepared by self-healing agent BCY-200S and cement additives with good compatibility with the agent. In addition, considering that lost circulation occurred easily when running casing and cementing, the “forward injection and reverse squeeze” technique was adopted on the basis of accurately determining the position of the leakage layer according to the previous construction situation. After the application of the self-healing cement slurry and the “forward injection and reverse squeeze” cementing technique to the carbonate formation in the third spud of Well Manshen 1, the cementing operation was safe and smooth. It not only sealed the pay zone but also avoided the annular channeling in the later operation. The research and practice demonstrated that the self-healing cement could automatically repair the microfractures after encountering oil and gas. In this way, they could achieve the goal of sealing the pay zone and solving the problems of annular pressure and interlayer cross-flow in the high-pressure natural gas wells of the Tarim Oilfield.
-
-
![]()

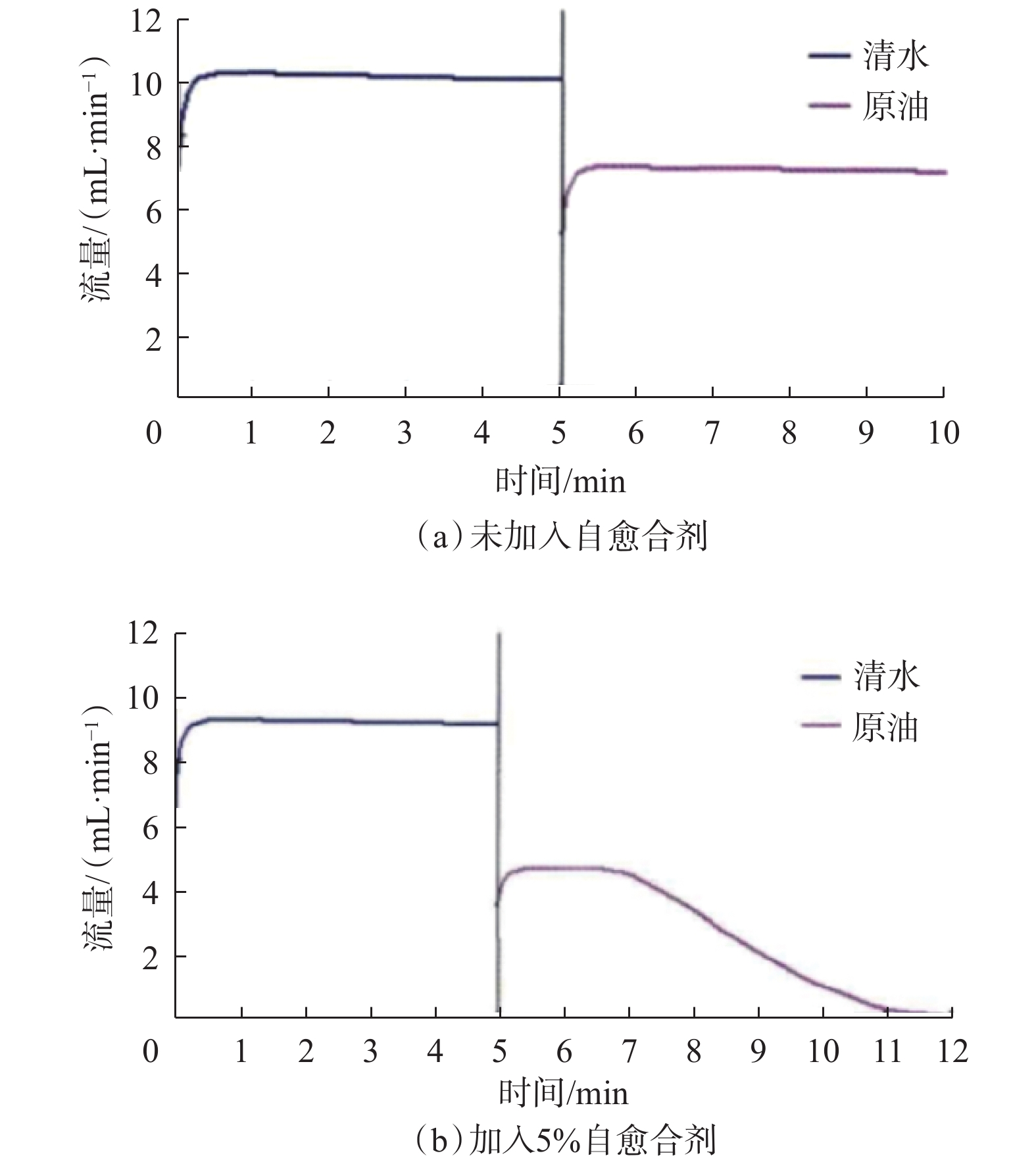

图 2 清水和原油通过不同水泥石的流量
Figure 2. Flow rate of clear water and crude oil passing through different cement stones
表 1 加入自愈合剂BCY-200S水泥石的力学性能
Table 1 Mechanical properties of consolidated cement with BCY-200S
BCY-200S加量，% 围压/MPa 抗压强度/MPa 弹性模量/GPa 泊松比 0 0 52.16 12.93 0.17 5 0 39.09 7.51 0.19 5 15 51.80 7.73 0.24 10 0 31.49 5.99 0.19 10 15 41.72 6.27 0.24
下载: 导出CSV
表 2 不同配方自愈合水泥浆的性能
Table 2 Performance of self-healing cement slurries with different formulas
配方 密度/
（kg·L–1）温度/℃ 流动度/cm 密度差/
（kg·L–1）API滤失量/
mL初始稠度/
Bc稠化时间/
min过渡时间/
min防窜系数 弹性模量/
GPa抗压强度/
MPa1 1.86 120 16 0 95 45 2 1.86 120 20 0 65 21 235 13.0 2.56 7.92 22.5 3 1.86 120 22 0 44 16 400 12.0 1.94 7.70 20.5 4 1.86 120 23 0 32 15 410 12.0 1.74 7.65 21.2 5 1.86 120 23 0 32 15 268 11.0 1.98 6 1.86 120 22 0 26 18 125 9.0 1.95 20.8 7 1.88 120 23 0 30 16 392 12.0 1.67 7.79 26.5 8 1.88 120 22 0 24 20 118 8.0 1.64 7.59 22.1 注：配方3，4和7测试抗压强度的条件为96 ℃×48 h；其他配方测试抗压强度的条件为142 ℃×24 h[13]。
下载: 导出CSV
表 3 满深1井三开自愈合水泥浆的性能
Table 3 Performance of self-healing cement slurries in the third spud of the Well Manshen 1
水泥浆 密度/（kg·L–1） 温度/℃ 流动度/cm 密度差/（kg·L–1） API滤失量/mL 初始稠度/Bc 稠化时间/min 过渡时间/min 防窜系数 抗压强度/MPa 领浆 1.88 96 23 0 32 15 426 11.0 1.57 20.1 尾浆 1.88 96 22 0 28 19 182 8.0 1.43 22.3
下载: 导出CSV
-
[1] 袁国栋,王鸿远,陈宗琦,等. 塔里木盆地满深1井超深井钻井关键技术[J]. 石油钻探技术,2020,48(4):21–27. YUAN Guodong, WANG Hongyuan, CHEN Zongqi, et al. Key drilling technologies for the ultra-deep well Manshen 1 in the Tarim Basin[J]. Petroleum Drilling Techniques, 2020, 48(4): 21–27.
[2] 于得水,徐泓,吴修振,等. 满深1井奥陶系桑塔木组高性能防塌水基钻井液技术[J]. 石油钻探技术,2020,48(5):49–54. YU Deshui, XU Hong, WU Xiuzhen, et al. High performance anti-sloughing water based drilling fluid technology for Well Manshen 1 in the Ordovician Sangtamu Formation[J]. Petroleum Drilling Techniques, 2020, 48(5): 49–54.
[3] 闫宇博,刘艳军,韩德勇,等. 大温差低密度水泥浆体系在NP36-3804井的应用[J]. 钻井液与完井液,2015,32(3):73–75. YAN Yubo, LIU Yanjun, HAN Deyong, et al. Application of big differential temperature low density cement slurry in Well NP36-380[J]. Drilling Fluid & Completion Fluid, 2015, 32(3): 73–75.
[4] 丁士东,陶谦,马兰荣. 中国石化固井技术进展及发展方向[J]. 石油钻探技术,2019,47(3):41–49. doi: 10.11911/syztjs.2019073 DING Shidong, TAO Qian, MA Lanrong. Progress, outlook, and the development directions at Sinopec in cementing technology progress[J]. Petroleum Drilling Techniques, 2019, 47(3): 41–49. doi: 10.11911/syztjs.2019073
[5] 张艺杰,张维静. 浅谈提高油井固井质量的几点认识[J]. 中国石油和化工标准与质量,2013(16):106. doi: 10.3969/j.issn.1673-4076.2013.16.099 ZHANG Yijie, ZHANG Weijing. Some understanding on improving well cementing quality in oil wells[J]. China Petroleum and Chemical Standards and Quality, 2013(16): 106. doi: 10.3969/j.issn.1673-4076.2013.16.099
[6] 鲁显兵, 孙栓科, 陈江, 等．托甫台区块超深气井ϕ177.8 mm尾管固井技术[J]．石油钻采工艺, 2010, 32（增刊1）: 88-91． LU Xianbing, SUN Shuanke, CHEN Jiang, et al. ϕ177.8 mm liner cementing technology for extra deep gas well in Tahe Oilfield[J]. Oil Drilling & Production Technology, 2010, 32(supplement 1): 88-91.
[7] 覃毅,孙高军,仲现,等. 大尺寸尾管固井水泥浆体系外加剂的优选[J]. 化工设计通讯,2018,44(9):247. doi: 10.3969/j.issn.1003-6490.2018.09.214 QIN Yi, SUN Gaojun, ZHONG Xian, et al. Optimization of additives for large size tailpipe cementing slurry system[J]. Chemical Design Communications, 2018, 44(9): 247. doi: 10.3969/j.issn.1003-6490.2018.09.214
[8] 屈凌霄,孙万兴,沈磊,等. 塔里木油田碎屑岩储层区块油层固井技术与研究[J]. 建筑工程技术与设计,2018(31):111. QU Lingxiao, SUN Wanxing, SHEN Lei, et al. Cementing technology and research of clastic reservoir block in Tarim Oilfield[J]. Construction Engineering Technology and Design, 2018(31): 111.
[9] 孙晓杰,余纲,瞿志浩,等. 自愈合水泥在塔里木油田碎屑岩固井中的应用[J]. 天然气与石油,2017,35(4):63–67. doi: 10.3969/j.issn.1006-5539.2017.04.011 SUN Xiaojie, YU Gang, QU Zhihao, et al. The application of self-healing cement in Tarim clastic rock well[J]. Natural Gas and Oil, 2017, 35(4): 63–67. doi: 10.3969/j.issn.1006-5539.2017.04.011
[10] 瞿志浩,李晓阳,董政真,等. 防窜抗盐高密度水泥浆体系的应用[J]. 西部探矿工程,2019,31(9):44–49. doi: 10.3969/j.issn.1004-5716.2019.09.017 QU Zhihao, LI Xiaoyang, DONG Zhengzhen, et al. Application of anti channeling and salt resistant high density cement slurry system[J]. West-China Exploration Engineering, 2019, 31(9): 44–49. doi: 10.3969/j.issn.1004-5716.2019.09.017
[11] 龚雨．自愈合水泥浆体系优化研究[D]．成都: 西南石油大学, 2015． GONG Yu. Study on the optimization of self-healing cement slurry system[D]. Chengdu: Southwest Petroleum University.
[12] 田宝振,李清洁,覃毅,等. 塔中碎屑岩井自愈合水泥浆固井技术[J]. 钻井液与完井液,2016,33(6):84–90. doi: 10.3969/j.issn.1001-5620.2016.06.015 TIAN Baozhen, LI Qingjie, QIN Yi, et al. Cementing wells penetrating clastic rocks with self-healing cement in Block Tazhong[J]. Drilling Fluid & Completion Fluid, 2016, 33(6): 84–90. doi: 10.3969/j.issn.1001-5620.2016.06.015
[13] 邹建龙,徐鹏,赵宝辉,等. 微交联AMPS共聚物油井水泥防气窜剂的室内研究[J]. 钻井液与完井液,2014,31(3):61–64. doi: 10.3969/j.issn.1001-5620.2014.03.016 ZOU Jianlong, XU Peng, ZHAO Baohui, et al. Study on slightcrosslinking AMPS copolymer as gas channeling agent in well cementing[J]. Drilling Fluid & Completion Fluid, 2014, 31(3): 61–64. doi: 10.3969/j.issn.1001-5620.2014.03.016
[14] 邹建龙,高永会,朱海金,等. 川东北地区高密度防气窜水泥浆体系研究[J]. 石油钻探技术,2010,38(1):46–49. doi: 10.3969/j.issn.1001-0890.2010.01.012 ZOU Jianlong, GAO Yonghui, ZHU Haijin, et al. Research of high-density cement slurry to prevent gas migration in Northeast Sichuan[J]. Petroleum Drilling Teniques, 2010, 38(1): 46–49. doi: 10.3969/j.issn.1001-0890.2010.01.012
