The Development and Field Testing of a High-Temperature Deep-Layer Open Hole Packer for Acid Fracturing Completion in Deep Carbonate Reservoirs
-
摘要: 针对塔北深层奥陶系油藏裸眼完井过程中封隔器胶筒易老化、骨架易破损的问题，进行了故障原因分析，设计了柔性锚瓦结构，以保护钢骨架，防止大扩张比、高承压状态下钢骨架变形过大造成的胶筒破坏；在保持氟橡胶（FKM）优异耐老化性能的基础上进行了改性，提高其塑性和热稳定性，使其更容易在模具中注胶和成型；坐封机构进液通道设计了可投球激活的保护滑套，可以避免钻井液沉淀堵塞。改进后的裸眼封隔器耐温达180 ℃，封隔能力强，适用于不规则裸眼地层的长期密封。塔北哈拉哈塘作业区4口井应用了改进后的裸眼完井封隔器，封隔器下入顺利，坐封显示明显，大规模酸压施工及求产过程中套压无异常。研究结果表明，改进后的封隔器满足完井–酸压–求产一体化工艺需求，解决了塔里木盆地深层油气开发存在的问题，具有较好的推广应用价值。Abstract: Premature aging of packer rubber elements and damage-prone of packer skeletons during the open hole well completions have been a problem in the deep Ordovician reservoirs of Northern Tarim Basin. To solve this, the causes of failures have been analyzed, after which a flexible anchor slip structure was designed for the protection of steel skeleton and prevention of damage to the rubber element caused by the excessive deformation of steel skeleton under large expansion ratio and high pressure. While maintaining the excellent aging resistance of fluororubber, plasticizing modification technology was used to improve its plasticity and thermal stability, which would make it easier to be moulded through mold injection. For the fluid inlet channel of the setting mechanism, a ball-activated protective sliding sleeve was designed to avoid the settling and clogging of drilling fluid. The improved open hole packer had a temperature resistance of 180 ℃ and strong sealing capacity, which was suitable for long-term sealing of irregular open hole formations. When applying such improved open hole completion packer in 4 wells in the Halahatang Area of Northern Tarim Basin, the RIH was smooth, the setting sign was obvious, and there was no abnormal casing pressure during the large-scale acid fracturing and production process. Research results showed that the improved packer met the needs of the integration of completion, acid fracturing and production testing, solved problems of deep oil and gas development in Tarim Basin, and had a good value for popularization and application.
-
Keywords:
- carbonate /
- high temperature /
- high pressure /
- acid fracturing /
- open hole packer /
- flexible anchor /
- inflatable element
-
-
![]()
图 1 耐高温裸眼封隔器结构
1.上接头；2.解封销钉；3.解封套；4.启动销钉；5.启动滑套；6.单向阀；7.上硫化头；8.上端环；9.支撑骨架；10.柔性锚瓦；11.外胶筒；12.内胶筒；13.芯轴；14.下端环；15.下硫化头；16.释放套；17.泄流槽；18.下接头；19.打压塞
Figure 1. Structure of a high temperature resistance open hole packer
![]()

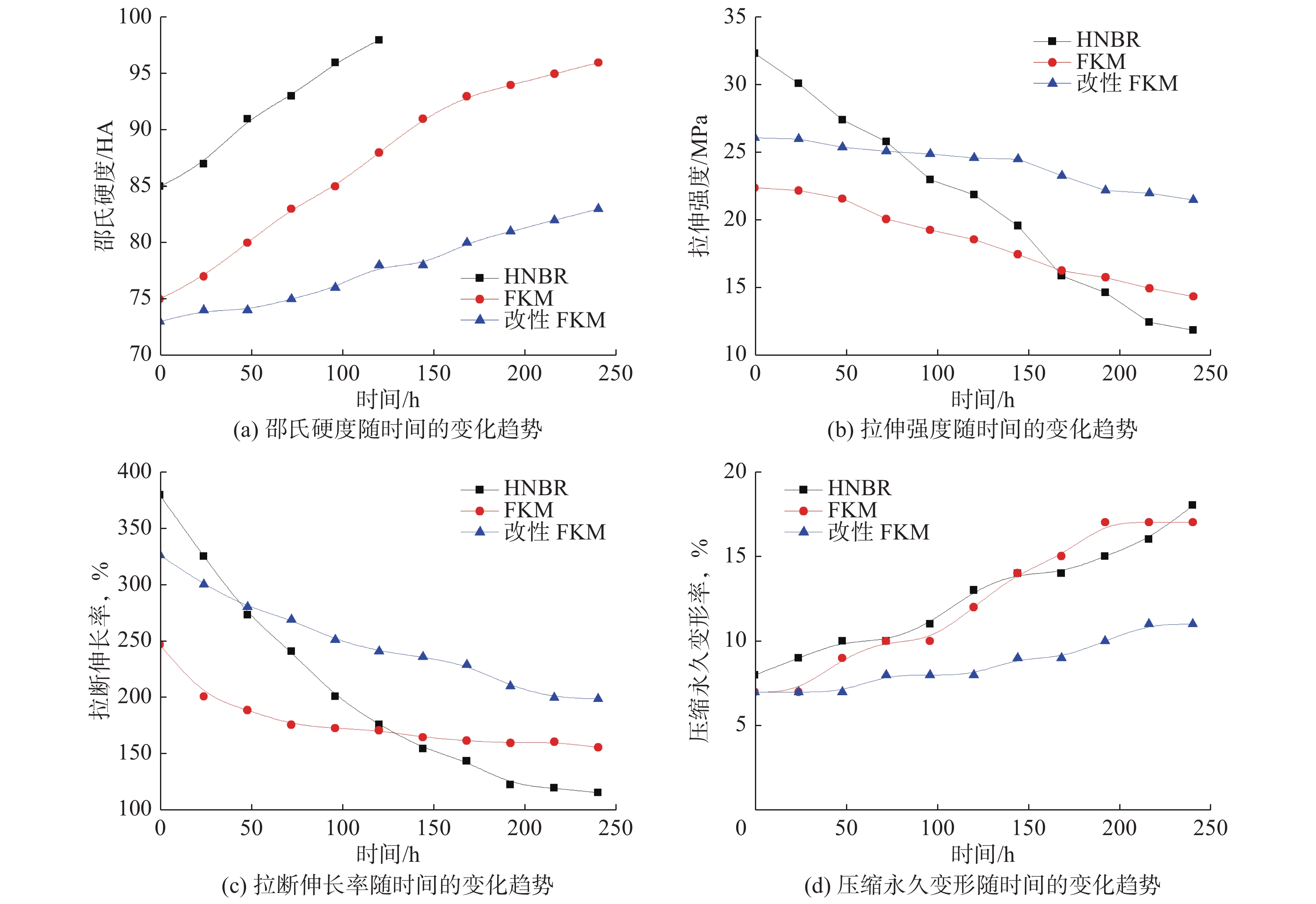

图 5 改性氟橡胶、氟橡胶与氢化丁腈橡胶性能对比
Figure 5. Performance comparison of Modified-FKM, FKM and HNBR
![]()
图 6 耐高温封隔器地面性能评价流程
Figure 6. Ground performance appraisal process of a high temperature resistance packer
表 1 封隔器地面性能评价试验结果
Table 1 Appraisal test results of ground performance of packer
试验温度/
℃保温时间/
h坐封压力/
MPa验封压力/
MPa试验结果 120 12 35 坐封 180 24 50 52 30 min无压降 150 12 51 53 30 min无压降 181 24 50 52 30 min无压降 156 12 52 53 30 min无压降 180 24 50 53 30 min无压降 155 12 50 53 30 min无压降 182 24 52 53 30 min无压降 152 12 51 53 30 min无压降
下载: 导出CSV
-
[1] 刘洪涛,黎丽丽,吴军,等. 库车山前高温高压气井测试管柱优化配置与应用[J]. 钻采工艺, 2016, 39(5): 42–45. doi: 10.3969/J.ISSN.1006-768X.2016.05.14 LIU Hongtao, LI Lili, WU Jun, et al. Optimum configuration and application of well testing string for ultra-deep HTHP gas well in Kuqa, Tarim[J]. Drilling & Production Technology, 2016, 39(5): 42–45. doi: 10.3969/J.ISSN.1006-768X.2016.05.14
[2] 焦方正. 塔里木盆地深层碳酸盐岩缝洞型油藏体积开发实践与认识[J]. 石油勘探与开发, 2019, 46(3): 552–558. JIAO Fangzheng. Practice and knowledge of volumetric development of deep fractured-vuggy carbonate reservoirs in Tarim Basin, NW China[J]. Petroleum Exploration and Development, 2019, 46(3): 552–558.
[3] 李永平,王永辉,程兴生,等. 高温深层非均质性碳酸盐岩水平井分段改造技术[J]. 石油钻采工艺, 2014, 36(1): 107–111. LI Yongping, WANG Yonghui, CHENG Xingsheng, et al. Segmented reconstruction technique of high-temperature deep heterogeneous carbonate horizontal well[J]. Oil Drilling & Production Technology, 2014, 36(1): 107–111.
[4] 周林波,刘红磊,解皓楠,等. 超深碳酸盐岩水平井水力喷射定点深度酸化压裂技术[J]. 特种油气藏, 2019, 26(3): 158–162. doi: 10.3969/j.issn.1006-6535.2019.03.030 ZHOU Linbo, LIU Honglei, XIE Haonan, et al. Fixed-point acid fracturing technology in the ultra-deep carbonate horizontal well[J]. Special Oil & Gas Reservoirs, 2019, 26(3): 158–162. doi: 10.3969/j.issn.1006-6535.2019.03.030
[5] 刘辉,袁学芳,文果,等. 超深碳酸盐岩油藏水平井套管分段酸压技术实践[J]. 钻采工艺, 2016, 39(4): 33–35. LIU Hui, YUAN Xuefang, WEN Guo, et al. Practice of stage acid frac in cased horizontal well in ultradeep carbonate reservoir[J]. Drilling & Production Technology, 2016, 39(4): 33–35.
[6] 徐路,黄世财,张超,等. 国产LXK系列高温裸眼封隔器的应用及评价[J]. 中国西部科技, 2014, 13(8): 49–51, 68. XU Lu, HUANG Shicai, ZHANG Chao, et al. Application and evaluation of domestic LXK high temperature openhole packer[J]. Science and Technology of West China, 2014, 13(8): 49–51, 68.
[7] 王洋,赵兵,袁清芸,等. 顺9井区致密油藏水平井一体化开发技术[J]. 石油钻探技术, 2015, 43(4): 48–52. WANG Yang, ZHAO Bing, YUAN Qingyun, et al. Integrated techniques in tight reservoir development for horizontal wells in Block Shun 9[J]. Petroleum Drilling Techniques, 2015, 43(4): 48–52.
[8] 刘练, 张佳, 王峰, 等. 高温高压裸眼封隔器的改进及应用[J]. 钻采工艺, 2012, 35(5): 77–79. doi: 10.3969/J.ISSN.1006－768X.2012.05.23 LIU Lian, ZHANG Jia, WANG Feng, et al. Improvement and application of HTHP open hole packer in Tahe Oilfield[J]. Drilling & Production Technology, 2012, 35(5): 77–79. doi: 10.3969/J.ISSN.1006－768X.2012.05.23
[9] 刘阳,秦金立. 无骨架内衬扩张式封隔器的研制与现场试验[J]. 石油钻探技术, 2017, 45(5): 69–73. LIU Yang, QIN Jinli. Development and field test of non-lining inflatable packers[J]. Petroleum Drilling Techniques, 2017, 45(5): 69–73.
[10] 杨晓龙,刘丽娟,张承武. 钢带封隔器胶筒护箍喇叭口优化设计[J]. 机械设计与研究, 2015, 31(3): 161–163, 173. YANG Xiaolong, LIU Lijuan, ZHANG Chengwu. Optimization design protector bell of steel packer rubber[J]. Machine Design and Research, 2015, 31(3): 161–163, 173.
[11] 张承武,王兴建,陈建刚. 分段压裂封隔器叠层钢片膨胀筒的密封机理[J]. 石油机械, 2007, 35(3): 5–7. doi: 10.3969/j.issn.1001-4578.2007.03.002 ZHANG Chengwu, WANG Xingjian, CHEN Jiangang. Seal mechanism of the overlapped steel strip inflatable tube of stepwise fracturing packer[J]. China Petroleum Machinery, 2007, 35(3): 5–7. doi: 10.3969/j.issn.1001-4578.2007.03.002
[12] 仝少凯,崔会贺,齐加德,等. 水力锚锚爪结构对套管变形及挤压应力的影响[J]. 石油钻探技术, 2015, 43(6): 59–65. TONG Shaokai, CUI Huihe, QI Jiade, et al. The effect of hydraulic anchor structure on casing deformation and extrusion stress[J]. Petroleum Drilling Techniques, 2015, 43(6): 59–65.
[13] 胡志强,杨进,李中,等. 高温高压井双封隔器管柱安全评估[J]. 石油钻采工艺, 2017, 39(3): 288–292. HU Zhiqiang, YANG Jin, LI Zhong, et al. Safety assessment on twin-packer string of HTHP well[J]. Oil Drilling & Production Technology, 2017, 39(3): 288–292.
[14] 江汉石油管理局采油工艺研究所, 江汉石油学院采油教研室．封隔器理论基础与应用[M]．北京: 石油工业出版社, 1982: 37–40, 59-60, 77–78． Oil Production Technology Research Institute of Jianghan Petroleum Administration Bureau, Oil Production Teaching and Research Office of Jianghan Petroleum Insititute. Theory foundation and application of packer[M]. Beijing: Petroleum Industry Press, 1982: 37–40, 59–60, 77–78.
[15] 程心平. 扩张式封隔器胶筒力学性能分析[J]. 石油机械, 2014, 42(6): 72–76. doi: 10.3969/j.issn.1001-4578.2014.06.017 CHENG Xinping. Mechanical properties analysis of expandable packer rubber[J]. China Petroleum Machinery, 2014, 42(6): 72–76. doi: 10.3969/j.issn.1001-4578.2014.06.017
[16] 张奎林,谷磊. 尾管顶部封隔器密封胶筒设计与试验[J]. 断块油气田, 2018, 25(3): 381–384. ZHANG Kuilin, GU Lei. Design and experiment research on sealing rubber tube of top packer of liner hanger[J]. Fault-Block Oil & Gas Field, 2018, 25(3): 381–384.
[17] 贺秋云,韩雄,曾小军. 高温高压井下测试工具橡胶密封材料的优选[J]. 钻采工艺, 2019, 42(4): 36–39. doi: 10.3969/J.ISSN.1006-768X.2019.04.10 HE Qiuyun, HAN Xiong, ZENG Xiaojun. How to decide optimal rubber seal elements for HPHT down-hole testing tools[J]. Drilling & Production Technology, 2019, 42(4): 36–39. doi: 10.3969/J.ISSN.1006-768X.2019.04.10
-
