Key Drilling Technologies of Infill Wells in the Fuling Shale Gas Field
-
摘要: 涪陵页岩气田加密井多处于页岩气压裂区且井网部署密集，导致钻井溢漏等井下故障多发、钻井液安全密度窗口确定难、压裂液侵入造成井壁坍塌及卡钻、防压裂干扰井眼轨道设计难度大等问题。针对上述钻井技术难点，从压裂区地层孔隙压力计算模型建立、合理钻井液密度窗口设计、防压裂干扰井眼轨道设计、加密井防漏堵漏和溢漏同存防控等方面进行了技术攻关，形成了适用于涪陵焦石坝主体区块的加密井钻井关键技术。该关键技术在涪陵页岩气田应用31口井，平均水平段长1 933.25 m，平均钻井周期52.38 d，平均机械钻速10.31 m/h，较前期加密评价井机械钻速提高了15.3%，钻井周期缩短了10.7%。涪陵页岩气田加密井钻井关键技术为涪陵页岩气田二期产能建设提供了技术支撑，也为其他页岩气田开发提供了技术参考和借鉴。Abstract: Infill wells in the Fuling Shale Gas Field are mostly located in the shale gas fracturing area with dense well pattern, resulting in many drilling technical problems, such as complex and frequent overflows and leakages, difficulty in determining reasonable drilling fluid density window, borehole collapse and sticking caused by fracturing fluid intrusion, and high difficulty in designing borehole trajectory to avoid fracturing interference, etc. To solve the above problems, technical research has been carried out from the perspectives of establishing a formation pore pressure calculation model for fracture zones, reasonable drilling fluid density window design, anti-fracturing interference borehole trajectory design, leakage prevention and plugging, and the prevention and control of simultaneous overflow and leakage in infill wells, etc., forming the key drilling technology suitable for infill wells in the Jiaoshiba main block of Fuling. The key technology has been applied in 31 wells in the Fuling Shale Gas Field, with an average horizontal interval of 1 933.25 m, an average drilling cycle of 52.38 days, and an average ROP of 10.31 m/h. Compared with previous infill evaluation wells, the ROP was increased by 15.3%, and the drilling cycle was shortened by 10.7%. The key drilling technology for infill wells in the Fuling Shale Gas Field provided technical support for the phase II productivity construction of the Fuling Shale Gas Field, and also provided technical references for the development of other shale gas fields.
-
Keywords:
- shale gas /
- infill well /
- fracturing /
- interference /
- drilling fluid density /
- hole trajectory /
- Fuling Shale Gas Field
-
-
![]()

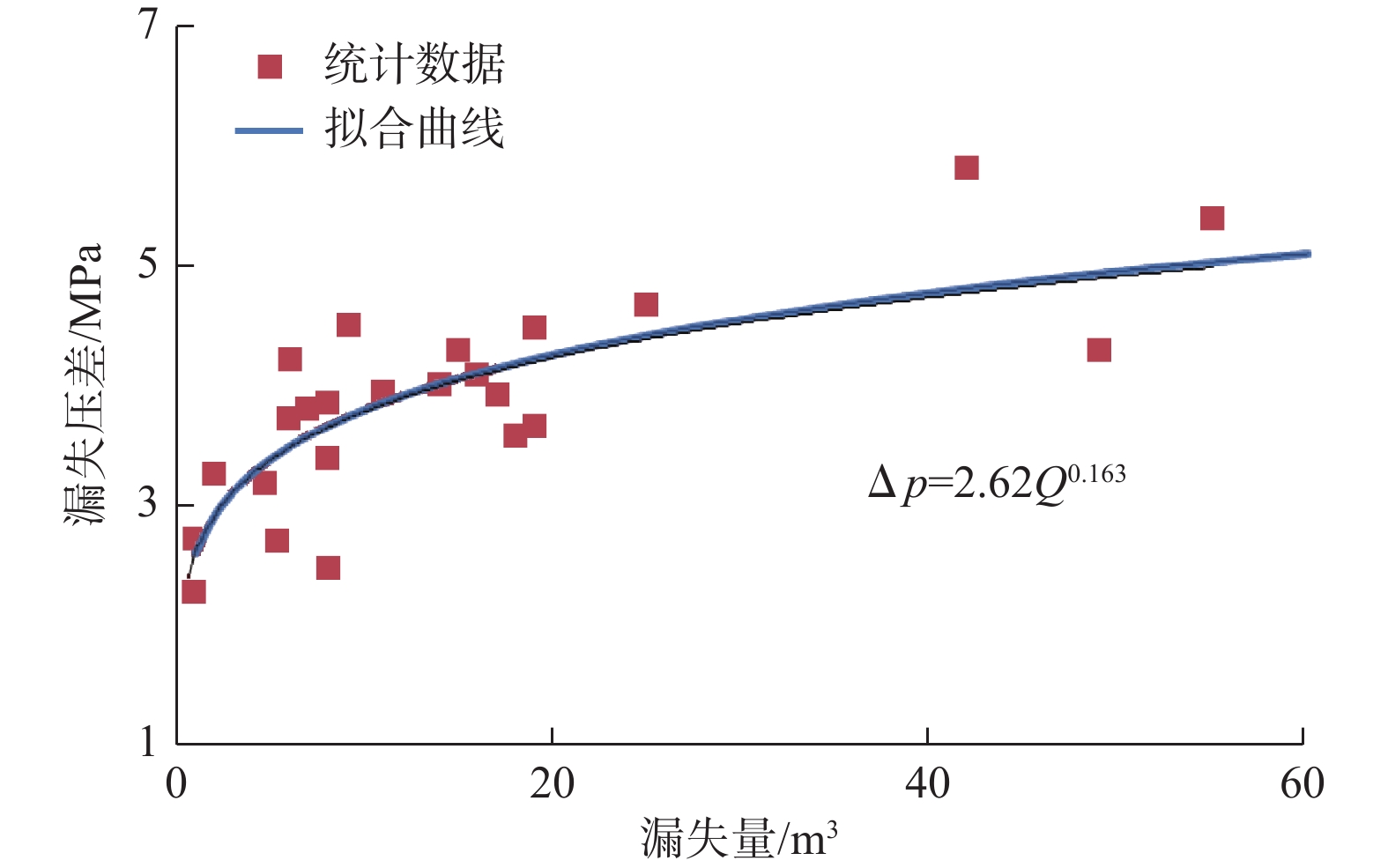

图 1 涪陵页岩气田压裂区钻井液漏失拟合曲线
Figure 1. Drilling fluid leakage fitting curve of fracturing zones in the Fuling Shale Gas Field
表 1 JY22-3HF井不同井深漏失特征统计
Table 1 Statistics on leakage characteristics of well JY22-3HF at different depths
漏失井深/m 垂深/m 漏失层位 漏失量/m3 漏失速度/（m3·h–1） 漏失钻井液密度/（kg·L–1） 井筒压力/MPa 孔隙压力/MPa 漏失压差/MPa 2 954.67 2 612.96 龙马溪组 16 3.15 1.49 40.73 37.36 3.37 3 717.24 2 676.34 19 8.30 1.50 42.05 38.27 3.78
下载: 导出CSV
表 2 压裂区加密井钻井液密度设计方法应用情况
Table 2 Application of drilling fluid density design method for infill wells in fracturing zones
井号 垂深/m 孔隙压力系数 安全压差/MPa 设计钻井液密度窗口/（kg·L–1） 实钻钻井液密度/（kg·L–1） 实钻情况 JY21-S2 2 340.00～2 440.00 1.35 2.34 1.35～1.45 1.43～1.45 无溢漏 JY5-S1 2 480.00 1.40 2.34 1.40～1.49 1.42～1.48 无溢漏
下载: 导出CSV
表 3 绕障轨道对工程参数的影响
Table 3 Influence of obstacle-bypassing track on engineering pa-rameters
轨道类型 摩阻/
kN井深/
m扭方位角/
（°）预测滑动
井段/m预测钻井
周期/d原始设计 140 5 832.00 50 233.00 14.4 绕障轨道 190 6 034.00 120 352.00 17.5
下载: 导出CSV
表 4 靶点调整对工程参数的影响
Table 4 Influence of target point adjustment on engineering parameters
靶点 位移/m 井深/m 稳斜角/（°） 扭方位角/（°） 摩阻/kN 基准 4 295.00 27.0 0 122 平移 50.00 4 296.00 27.4 6.1 128 100.00 4 300.00 27.8 12.1 143 150.00 4 306.00 28.4 17.9 157 轴移 50.00 4 319.30 30.8 0 131 100.00 4 346.10 34.1 0 142 150.00 4 375.30 37.1 0 154
下载: 导出CSV
表 5 页岩气水平井JYX6-5井的井身结构
Table 5 Casing program of shale gas horizontal well JYX6-5
开次 井眼直径/mm 钻深/m 套管直径/mm 套管下深/m 导眼 609.6 54.00 473.1 53.50 一开 406.4 517.00 339.7 516.50 二开 311.1 2 348.00 244.5 2 348.42 三开 215.9 5 305.00 139.7 5 297.35
下载: 导出CSV
-
[1] 牛新明. 涪陵页岩气田钻井技术难点及对策[J]. 石油钻探技术, 2014, 42(4): 1–6. NIU Xinming. Drilling technology challenges and resolutions in Fuling Shale Gas Field[J]. Petroleum Drilling Techniques, 2014, 42(4): 1–6.
[2] 陈庭根, 管志川．钻井工程理论与技术[M]．东营: 中国石油大学出版社, 2005． CHEN Tinggen, GUAN Zhichuan. Drilling engineering theory and technology[M]. Dongying: China University of Petroleum Press, 2005.
[3] 艾军,张金成,臧艳彬,等. 涪陵页岩气田钻井关键技术[J]. 石油钻探技术, 2014, 42(5): 9–15. AI Jun, ZHANG Jincheng, ZANG Yanbin, et al. The key drilling technologies in Fuling Shale Gas Field[J]. Petroleum Drilling Techniques, 2014, 42(5): 9–15.
[4] 刘伟,何龙,胡大梁,等. 川南海相深层页岩气钻井关键技术[J]. 石油钻探技术, 2019, 47(6): 9–14. doi: 10.11911/syztjs.2019118 LIU Wei, HE Long, HU Daliang, et al. Key technologies for deep marine shale gas drilling in Southern Sichuan[J]. Petroleum Drilling Techniques, 2019, 47(6): 9–14. doi: 10.11911/syztjs.2019118
[5] 郭印同,杨春和,贾长贵,等. 页岩水力压裂物理模拟与裂缝表征方法研究[J]. 岩石力学与工程学报, 2014, 33(1): 52–59. GUO Yintong, YANG Chunhe, JIA Changgui, et al. Research on hydraulic fracturing physical simulation of shale and fracture characterization methods[J]. Chinese Journal of Rock Mechanics and Engineering, 2014, 33(1): 52–59.
[6] 刘铁成,唐海,刘鹏超,等. 裂缝性封闭页岩气藏物质平衡方程及储量计算方法[J]. 天然气勘探与开发, 2011, 34(2): 28–30. doi: 10.3969/j.issn.1673-3177.2011.02.008 LIU Tiecheng, TANG Hai, LIU Pengchao, et al. Material balance equation and reserve calculation method of fractured and closed shale-gas reservoir[J]. Natural Gas Exploration and Development, 2011, 34(2): 28–30. doi: 10.3969/j.issn.1673-3177.2011.02.008
[7] 侯绪田,赵向阳,孟英峰,等. 基于真实裂缝试验装置的液液重力置换试验研究[J]. 石油钻探技术, 2018, 46(1): 30–36. HOU Xutian, ZHAO Xiangyang, MENG Yingfeng, et al. Liquid-liquid gravity displacement test based on experimental apparatus for real fractures[J]. Petroleum Drilling Techniques, 2018, 46(1): 30–36.
[8] 舒刚,孟英峰,李皋,等. 重力置换式漏喷同存机理研究[J]. 石油钻探技术, 2011, 39(1): 6–11. doi: 10.3969/j.issn.1001-0890.2011.01.002 SHU Gang, MENG Yingfeng, LI Gao, et al. Mechanism of mud loss and well kick due to gravity displacement[J]. Petroleum Drilling Techniques, 2011, 39(1): 6–11. doi: 10.3969/j.issn.1001-0890.2011.01.002
[9] 王金刚,张杰,段小康,等. 漏失压力研究现状[J]. 中国西部科技, 2012, 11(10): 29–30,22. WANG Jingang, ZHANG Jie, DUAN Xiaokang, et al. Present study situation of pressure leakage[J]. Science and Technology of West China, 2012, 11(10): 29–30,22.
[10] 李亚南,于占淼. 涪陵页岩气田二期水平井钻井防碰绕障技术[J]. 石油钻采工艺, 2017, 39(3): 303–306. LI Yanan, YU Zhanmiao. Collision avoidance and obstacle bypass technology for horizontal wells in the second phase of Fuling Shale Gas Field[J]. Oil Drilling & Production Technology, 2017, 39(3): 303–306.
[11] 刘匡晓,王庆军,兰凯,等. 页岩气田三维水平井大井眼导向钻井技术[J]. 石油钻探技术, 2016, 44(5): 16–21. LIU Kuangxiao, WANG Qingjun, LAN Kai, et al. Large diameter hole steering drilling technology for three-dimensional horizontal well in the Fuling Shale Gas Field[J]. Petroleum Drilling Techniques, 2016, 44(5): 16–21.
[12] 赵少伟,徐东升,王菲菲,等. 渤海油田丛式井网整体加密钻井防碰技术[J]. 石油钻采工艺, 2018, 40(supplement 1): 112–114. ZHAO Shaowei, XU Dongsheng, WANG Feifei, et al. Integral infilling and drilling anti-collision technology of cluster well pattern in Bohai Oilfield[J]. Oil Drilling & Production Technology, 2018, 40(supplement 1): 112–114.
[13] 李伟,刘文臣,周贤海,等. 涪陵页岩气田三维水平井轨道优化设计方法探讨[J]. 石油钻探技术, 2018, 46(2): 17–23. LI Wei, LIU Wenchen, ZHOU Xianhai, et al. 3D horizontal wellbore trajectory optimization design method in the Fuling Shale Gas Field[J]. Petroleum Drilling Techniques, 2018, 46(2): 17–23.
[14] 杨鹏. 井工厂化作业钻井液关键技术[J]. 特种油气藏, 2019, 26(2): 10–15. doi: 10.3969/j.issn.1006-6535.2019.02.002 YANG Peng. Key technology of drilling fluid for well factory-like operation[J]. Special Oil & Gas Reservoirs, 2019, 26(2): 10–15. doi: 10.3969/j.issn.1006-6535.2019.02.002
[15] 朱宝忠. 国内页岩气长水平井JY2-5HF井钻井液技术[J]. 钻井液与完井液, 2018, 35(6): 60–64. doi: 10.3969/j.issn.1001-5620.2018.06.011 ZHU Baozhong. Drilling fluid technology for long horizontal shale gas Well JY2-5HF in China[J]. Drilling Fluid & Completion Fluid, 2018, 35(6): 60–64. doi: 10.3969/j.issn.1001-5620.2018.06.011
[16] 梁文利. 深层页岩气油基钻井液承压堵漏技术[J]. 钻井液与完井液, 2018, 35(3): 37–41. doi: 10.3969/j.issn.1001-5620.2018.03.006 LIANG Wenli. Enhancing pressure bearing capacity of formation to control mud losses in deep shale gas drilling with oil base drilling fluids[J]. Drilling Fluid & Completion Fluid, 2018, 35(3): 37–41. doi: 10.3969/j.issn.1001-5620.2018.03.006
[17] 方俊伟,朱立鑫,罗发强,等. 钻井液对裂缝性地层气侵的影响模拟研究[J]. 钻井液与完井液, 2019, 36(3): 287–292. FANG Junwei, ZHU Lixin, LUO Faqiang, et al. Simulation study on the effects of drilling fluid on gas cut from fractured formations[J]. Drilling Fluid & Completion Fluid, 2019, 36(3): 287–292.
[18] 孔祥伟,林元华,邱伊婕. 控压钻井重力置换与溢流气侵判断准则分析[J]. 应用力学学报, 2015, 32(2): 317–322. doi: 10.11776/cjam.32.02.A012 KONG Xiangwei, LIN Yuanhua, QIU Yijie. Research of mechanism for the gas invasion and gravity replacement in drilling operations[J]. Chinese Journal of Applied Mechanics, 2015, 32(2): 317–322. doi: 10.11776/cjam.32.02.A012
[19] 黄国平,何世明,汤明,等. 顺南区块裂缝性储层置换式气侵影响因素研究[J]. 石油钻探技术, 2018, 46(5): 21–25. HUANG Guoping, HE Shiming, TANG Ming, et al. A Study on the effect of displacement gas cut on fractured reservoirs in Shunnan Block[J]. Petroleum Drilling Techniques, 2018, 46(5): 21–25.
-
